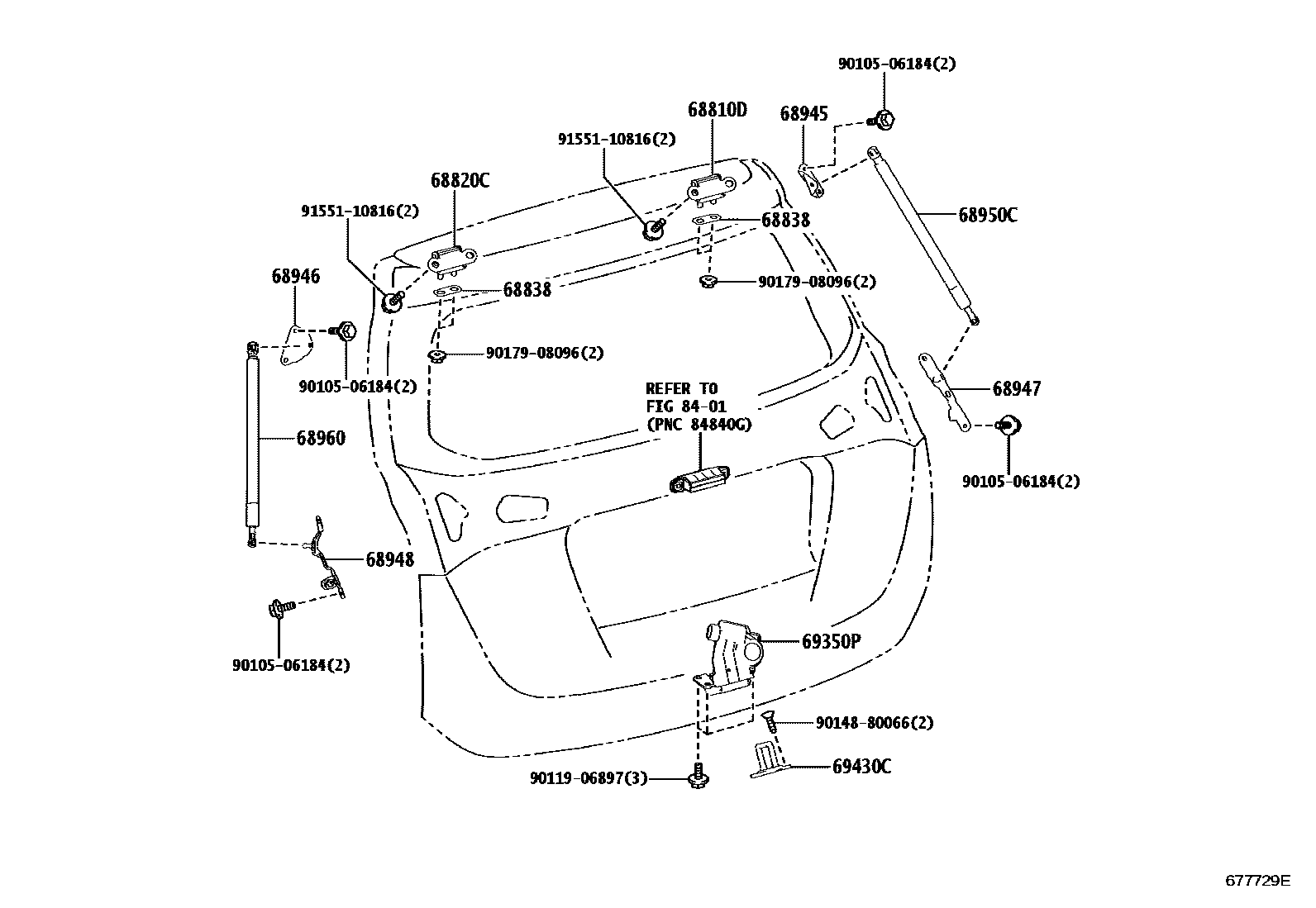

BACK DOOR LOCK & HINGE
68810DHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68838PAD, BACK DOOR HINGE, NO.1
T=1.0
T=1.5
T=2.0
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
POWER DOOR LOCK-W/(TWO OPERATION & HANDSFREE BACK DOOR); POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR); POWER DOOR LOCK-WITH(TWO OPERATION)
main68947-42020iASA4#,AVA44..LE,SE,XLE; ASA4#,AVA44..SE,XLE; ASA4#..SE;AVA44..SE,XLE; ASA42..LIMD201510-201810
POWER DOOR LOCK-W/(TWO OPERATION & HANDSFREE BACK DOOR); POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR); POWER DOOR LOCK-WITH(TWO OPERATION)
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
POWER DOOR LOCK-W/(TWO OPERATION & HANDSFREE BACK DOOR); POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR); POWER DOOR LOCK-WITH(TWO OPERATION)
68950CSTAY ASSY, BACK DOOR, RH
main68950-0R020iASA4#,AVA44..LE,SE,XLE; ASA4#,AVA44..SE,XLE; ASA4#..SE;AVA44..SE,XLE; ASA42..LIMD201510-201810
POWER DOOR LOCK-W/(TWO OPERATION & HANDSFREE BACK DOOR); POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR); POWER DOOR LOCK-WITH(TWO OPERATION)
68960STAY ASSY, BACK DOOR, LH
main68960-0R020iASA4#,AVA44..LE,SE,XLE; ASA4#,AVA44..SE,XLE; ASA4#..SE;AVA44..SE,XLE; ASA42..LIMD201510-201810
POWER DOOR LOCK-W/(TWO OPERATION & HANDSFREE BACK DOOR); POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR); POWER DOOR LOCK-WITH(TWO OPERATION)
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)
POWER DOOR LOCK-WITH(TWO OPERATION)
69430CSTRIKER ASSY, BACK DOOR LOCK
8401SWITCH & RELAY & COMPUTER
9010506184
main90105-06184
9011906897
main90119-06897
9014880066
main90148-80066
9017908096
main90179-08096
9155110816
main91551-10816
17 parts on this diagram · 2 diagrams in section
