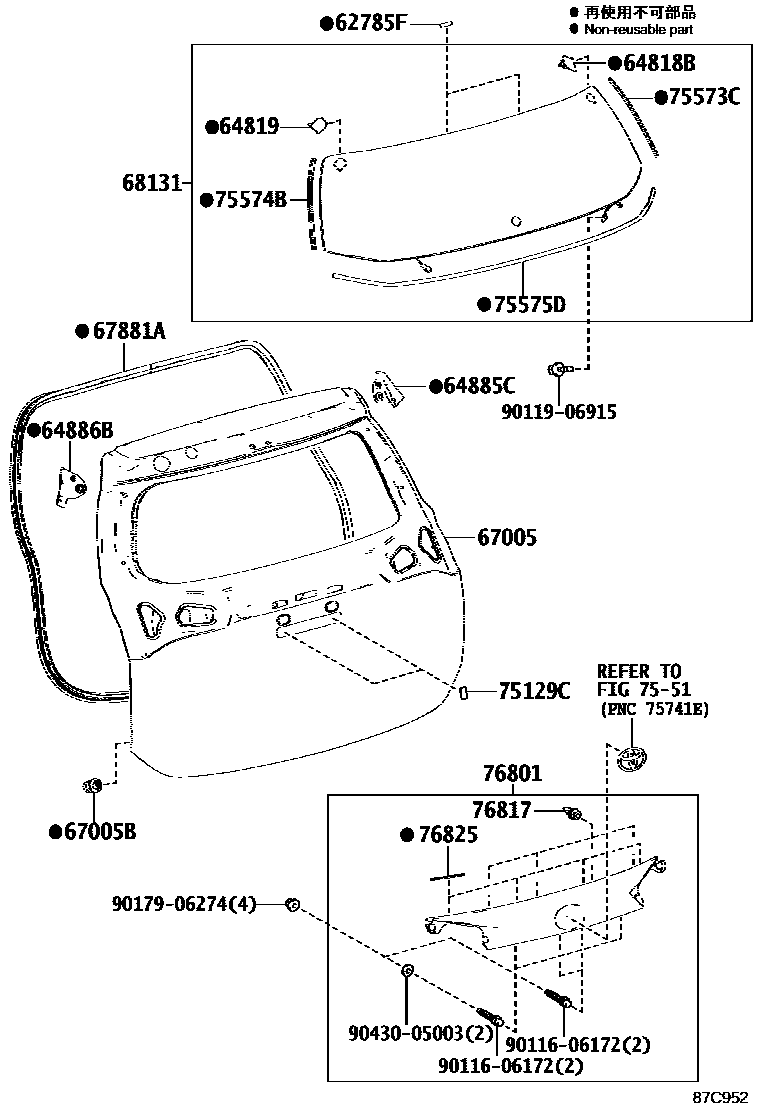

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64818BSPACER, BACK DOOR GLASS, NO.1
64819SPACER, BACK WINDOW GLASS, NO.2
64885CCHANNEL, BACK DOOR GLASS, RH
64886BCHANNEL, BACK DOOR GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
sub67005-42531
sub67005-42541
POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)
sub67005-42481
POWER DOOR LOCK-WITH(TWO OPERATION & POWER BACK DOOR)
sub67005-42580
POWER DOOR LOCK-WITH(TWO OPERATION)&BACK MONITOR-WITH(*BGM)
sub67005-42600
67005BCUSHION(FOR BACK DOOR PANEL)
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
*UVCEHT,T=3.1,GREEN
*UVCEHT,T=3.1,GREEN,REAR SIDE GLASS-REINFORCED(GREEN)
*EHT,T=3.1,DK.GRAY
*EHT,T=3.1,DK.GRAY,REAR SIDE GLASS-REINFORCED(GRAY)
75129CCUSHION, REAR LICENCE PLATE
7551
75573CMOULDING, BACK WINDOW, OUTSIDE
75574BMOULDING, BACK WINDOW, OUTSIDE LH
75575DMOULDING, BACK WINDOW, LOWER
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
BRONZE M.M.,4T3
DK.BROWN ME.,4U5
ORANGE ME.,4R8
DK.GREEN MC.,6V4
GRAYISH BLUE M.M.,8V5
PAINT REQ.
76817CLIP, BACK DOOR OUTSIDE GARNISH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
9011606172
main90116-06172
9011906915
main90119-06915
9017906274
main90179-06274
9043005003
main90430-05003
21 parts on this diagram · 3 diagrams in section
