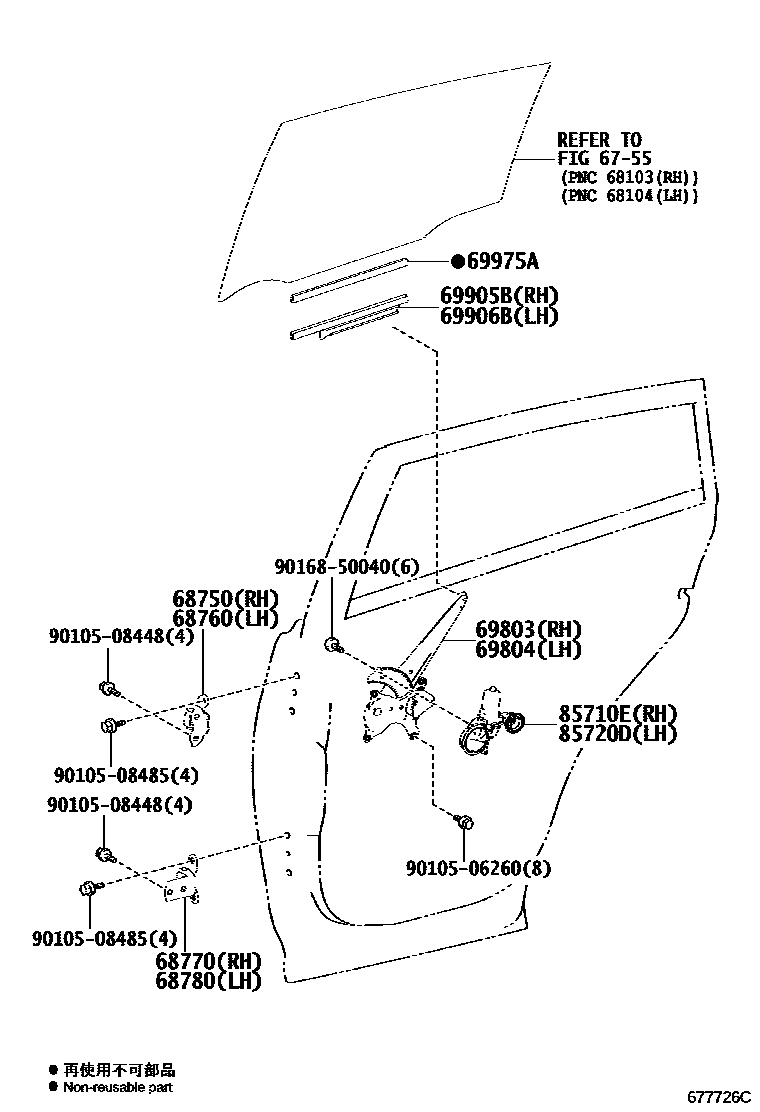

REAR DOOR WINDOW REGULATOR & HINGE

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iASA4#201212-201510

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iASA4#201212-201510

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iASA4#201212-201510

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iASA4#201212-201510

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-42050iASA4#201212-201510

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-42050iASA4#201212-201510

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52060iASA4#201212-201510

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52060iASA4#201212-201510

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iASA4#201212-201510

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-35140iASA4#201212-201510

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-35180iASA4#201212-201510

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
