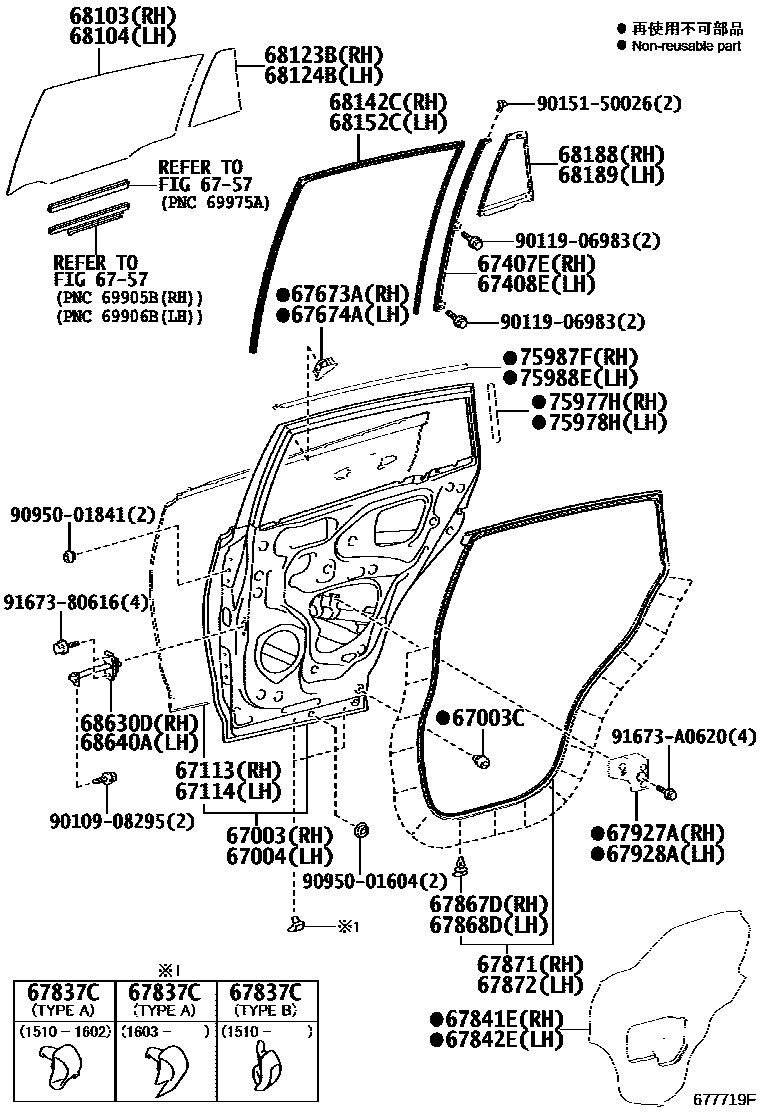

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
6757REAR DOOR WINDOW REGULATOR & HINGE
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67837CSEAL, REAR DOOR DUST PROOF
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67927ACUSHION, REAR DOOR STIFFENER, RH
67928ACUSHION, REAR DOOR STIFFENER, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=3.1,DARK GRAY; *TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)
*UVCT,T=3.1,GREEN; *UVCT,T=3.1,GREEN,KOREA SPEC
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=3.1,DARK GRAY; *TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)
*UVCT,T=3.1,GREEN; *UVCT,T=3.1,GREEN,KOREA SPEC
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*TEM,T=3.1,DARK GRAY; *TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)
*UVCT,T=3.1,GREEN; *UVCT,T=3.1,GREEN,KOREA SPEC
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*TEM,T=3.1,DARK GRAY; *TEM,T=3.1,DARK GRAY,REAR SIDE GLASS-REINFORCED(GRAY)
*UVCT,T=3.1,GREEN; *UVCT,T=3.1,GREEN,KOREA SPEC
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68640ACHECK ASSY, REAR DOOR, LH
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
75988ESTRIPE, REAR DOOR, OUTSIDE LH
9010908295
main90109-08295
9011906983
main90119-06983
9015150026
main90151-50026
9095001604
main90950-01604
9095001841
main90950-01841
9167380616
main91673-80616
91673A0620
main91673-A0620
40 parts on this diagram · 2 diagrams in section
