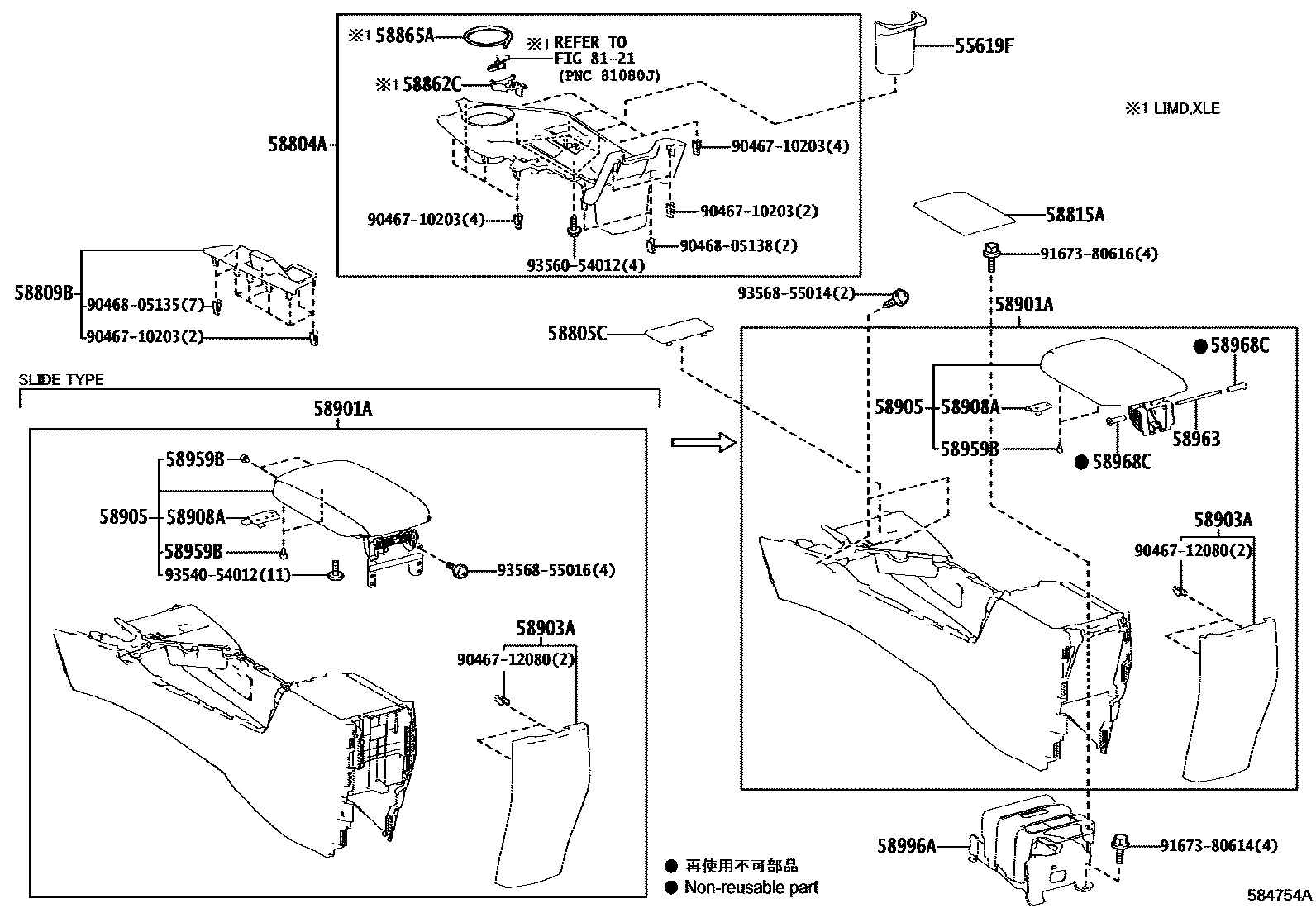

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

55619FHOLDER, CONSOLE BOX CUP, NO.2

main55619-42030iASA4#201212-201510

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-42050-C0iASA4#..LE201212-201510

BLACK,TRIM1#,2#,4#

main58804-42060-C0iASA4#..XLE201212-201510

BLACK,TRIM1#,2#,4#

main58804-42170-B2iASA4#..LE201510-201810

SILVER,TRIM2#

main58804-42180-B1iASA4#,AVA44..XLE..USA201510-201810

SILVER,TRIM1#,2#,4#

main58804-42190-B1iASA4#,AVA44..LIMD201510-201810

SILVER,TRIM1#,2#,3#,4#

main58804-42210-B1iASA4#,AVA44..SE201510-201810

SMOKE SILVER METALLIC,TRIM2#,3#

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-42050-C0iASA4#..LE,XLE201212-201510

BLACK,TRIM1#,2#,4#

main58805-42070-C0iAVA44..LIMD;ASA4#..LIMD,SE201510-201810

BLACK,TRIM1#,2#,4#

58809BCOVER SUB-ASSY, PARKING BRAKE HOLE

main58809-42010-C1iASA4#..LE,XLE201212-201502

BLACK,TRIM1#,2#,4#

main58809-42011-C1iASA4#,AVA44..SE201510-201810

BLACK,TRIM2#

58815ACARPET, CONSOLE BOX

main58815-42030iASA4#,AVA44201510-201810

58862CSUPPORT, CONSOLE BOX, NO.2

main58862-42010iASA4#..LIMD,XLE201212-201510

58865ALENS, FRONT CONSOLE BOX, NO.1

main58865-42010iASA4#..LIMD,XLE201212-201510

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-42090-C0iASA4#..LE,XLE201212-201510

BLACK,TRIM1#,2#,4#

main58901-42100-C0iASA4#..LIMD201212-201506

BLACK,TRIM1#,2#,3#,4#

main58901-42101-C0iASA4#..LIMD201507-201510

BLACK,TRIM1#,2#,3#,4#

main58901-42230-C0iASA4#,AVA44..XLE201510-201810

BLACK,TRIM1#,2#,4#

main58901-42260-C0iAVA44..LIMD;ASA4#..LIMD,SE201510-201810

BLACK,TRIM1#,2#,3#,4#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-42010-C0iASA4#..LE,XLE201212-201510

BLACK,TRIM1#,2#,4#

main58903-42020-C0iASA4#..LIMD201212-201510

BLACK,TRIM1#,2#,3#,4#

main58903-42030-C0iASA4#,AVA44..XLE201510-201810

BLACK,TRIM1#,2#,4#

main58903-42040-C0iAVA44..LIMD;ASA4#..LIMD,SE201510-201810

BLACK,TRIM1#,2#,3#,4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-42040-C0iASA4#..LE,XLE201212-201510

BLACK,TRIM1#,2#,4#

main58905-42050-C0iASA4#..LIMD201212-201506

BLACK,TRIM1#,2#,3#,4#

main58905-42051-C0iASA4#..LIMD201507-201510

BLACK,TRIM1#,2#,3#,4#

main58905-42070-C0iASA4#,AVA44..XLE201510-201810

BLACK,TRIM1#,2#,4#

main58905-42090-C0iAVA44..LIMD;ASA4#..LIMD,SE201510-201810

BLACK,TRIM1#,2#,3#,4#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-12080iASA4#..LE,XLE201212-201510

main58908-42010iASA4#..LIMD201212-201510

main58908-42020iASA4#,AVA44201510-201810

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-35010×4iASA4#..LIMD201409-201510

main58959-42020×2iASA4#..LE,XLE201212-201510

main58959-60060×4iASA4#..LIMD201212-201408

58963SHAFT, CONSOLE COMPARTMENT DOOR HINGE

main58963-47010iASA4#..LE,XLE201212-201510

58968CSHIM, CONSOLE COMPARTMENT DOOR STOPPER

main58968-42010×2iASA4#..LE,XLE201212-201510

main58968-42030×2iASA4#,AVA44..LE,XLE201510-201810

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-42040iASA4#201212-201510

main58996-42060iASA4#,AVA44201510-201810

8121

9046710203

main90467-10203

9046712080

main90467-12080

9046805135

main90468-05135

9046805138

main90468-05138

9167380614

main91673-80614

9167380616

main91673-80616

9354054012

main93540-54012

9356054012

main93560-54012

9356855014

main93568-55014

9356855016

main93568-55016

26 parts on this diagram · 3 diagrams in section
