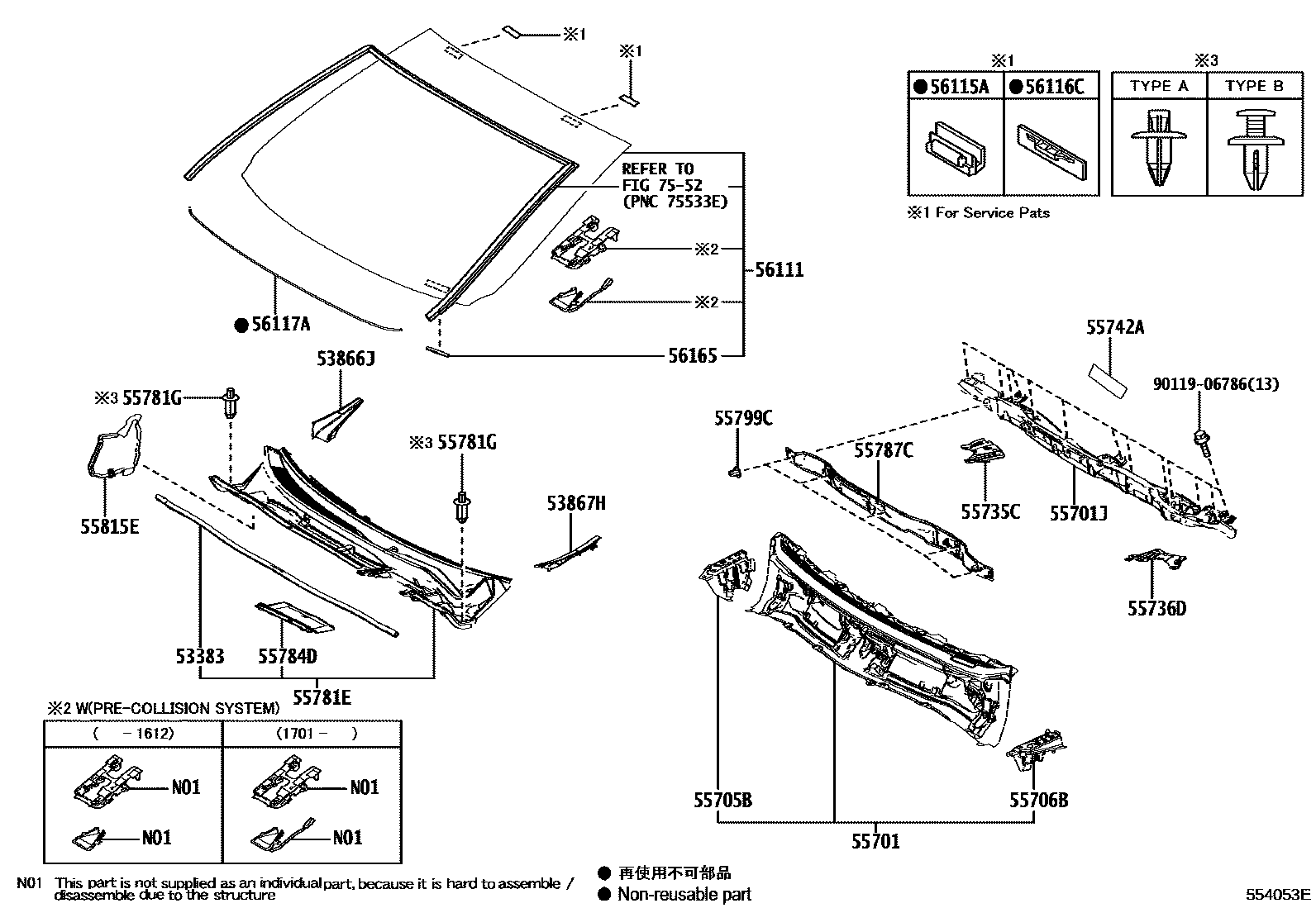

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55735CREINFORCEMENT, COWL BODY MOUNTING, RH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55742ASHEET, COWL TOP INSULATOR
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
BLACK,TYPE B:REFER ILLUST.
BLACK,TYPE A:REFER ILLUST.
BLACK,TYPE A:REFER ILLUST.
55784DBRACKET, COWL TOP VENTILATOR LOUVER, LH
55787CINSULATOR, COWL TOP PANEL, NO.1
55799CCLIP, COWL TOP VENTILATOR LOUVER
55815ESEAL, FRONT VENTILATOR, NO.1
56111GLASS, WINDSHIELD
*LAM,T=4.76,GREEN
PRE-COLLISION SYSTEM-WITH
PRE-COLLISION SYSTEM-WITH
KOREA SPEC&AUDIO-6SPEAKER DLX-DA KOREA
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1307; *D,L=1307,PRE-COLLISION SYSTEM-WITH
56165COVER, FRONT WINDOW INNER MOULDING, LH
7552MOULDING
9011906786
main90119-06786
23 parts on this diagram · 1 diagram in section
