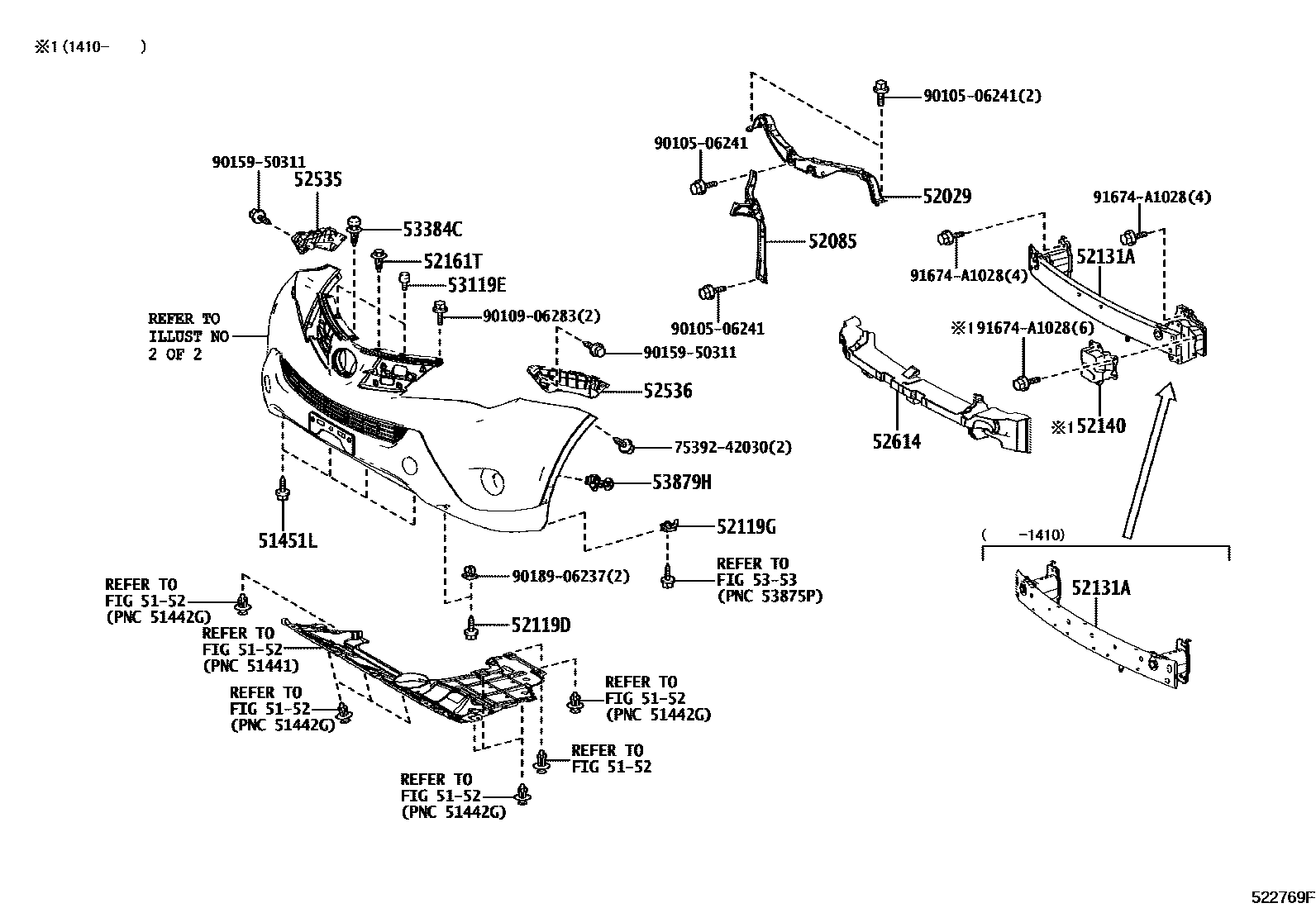

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1KOREA SPEC 0004 1KOREA SPEC 0005 1NA 0006 1NA 0007 1SE 0008 1SE 0009 1KOREA SPEC 0010 1KOREA SPEC

51451LBOLT, NO.1

main90119-06767×4iASA4#201212-201510

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-42100iASA4#201212-201510

main52029-42110iASA4#,AVA44201510-201810

52085STAY SUB-ASSY, FRONT BUMPER, CENTER

main52085-42040iASA4#201212-201510

main52085-42050iASA4#,AVA44201510-201810

52119DSCREW, NO.1

main90159-60431×2iASA4#201212-201510

52119GCLIP, NO.1

main90467-05114×2iASA4#201212-201510

52131AREINFORCEMENT, FRONT BUMPER

main52021-42130iASA4#201212-201410

main52021-42150iASA4#,AVA44201510-201810

main52021-42120iASA4#,AVA44..LIMD..USA201510-201810

KOREA SPEC

52140BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH

main52140-42010iASA4#,AVA44201510-201810

52161TPIECE, FRONT BUMPER

main52161-16010iASA4#201212-201510

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-42070iASA4#201212-201510

main52535-42080iASA4#,AVA44201510-201810

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-42050iASA4#201212-201510

main52536-42070iASA4#,AVA44201510-201810

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-42070iASA4#201212-201410

main52614-42090iASA4#201410-201510

main52614-42100iASA4#,AVA44201510-201810

main52614-42080iASA4#..LIMD201212-201510

KOREA SPEC

main52614-42110iASA4#,AVA44..LIMD..USA201510-201810

KOREA SPEC

53119EPROTECTOR, RADIATOR GRILLE

main53119-12150×2iASA4#201212-201510

53384CCUSHION, HOOD, CENTER

main53384-68010iASA4#201212-201510

5353HOOD & FRONT FENDER

→ Go to FIG 53-53

53879HRETAINER, FRONT FENDER LINER

main53879-28010×2iASA4#201212-201510

7539242030RETAINER, OUTSIDE MOULDING

main75392-42030

9010506241

main90105-06241

9010906283

main90109-06283

9015950311

main90159-50311

9018906237

main90189-06237

91674A1028

main91674-A1028

22 parts on this diagram · 10 diagrams in section
