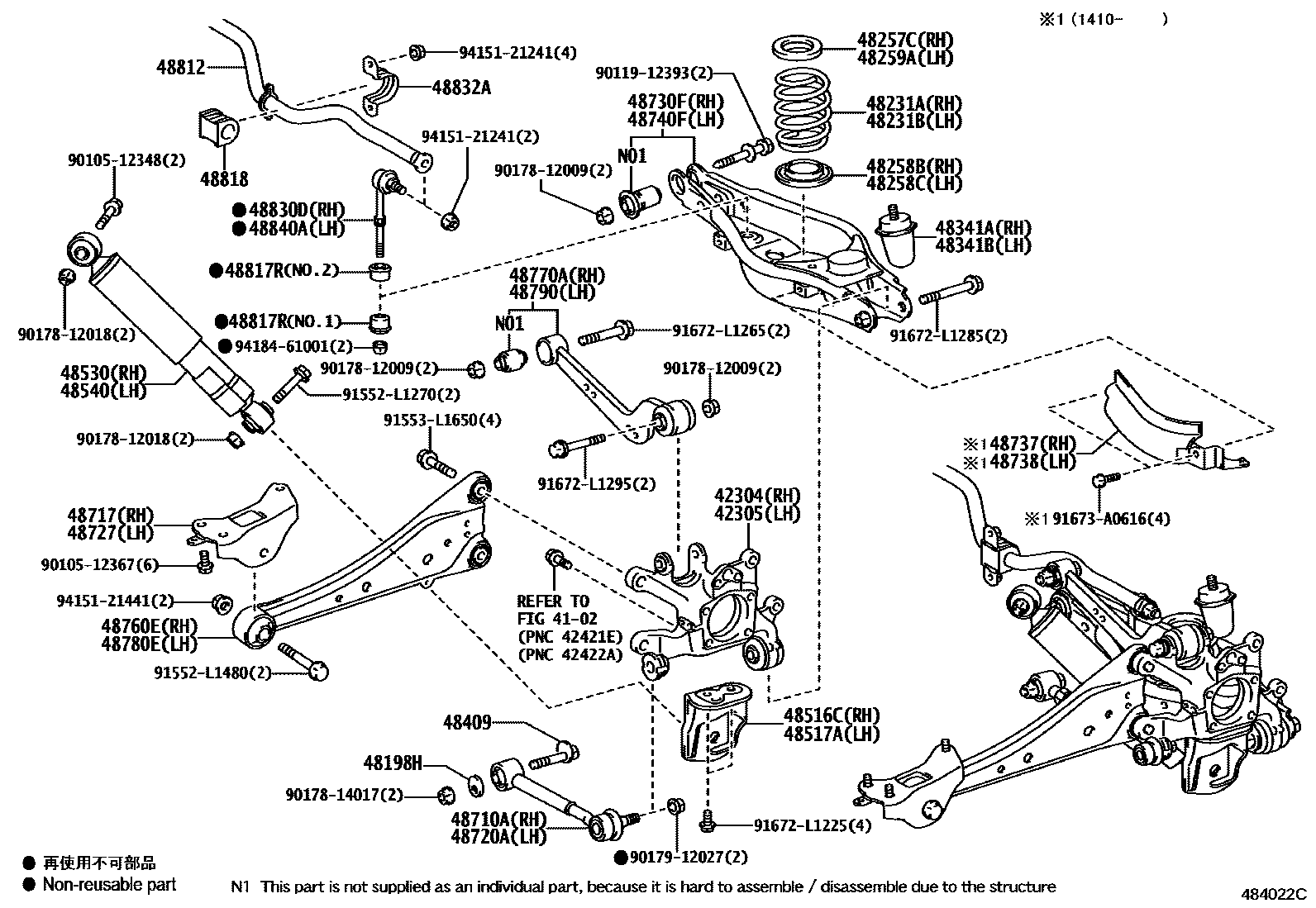

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1KOREA SPEC 0004 1KOREA SPEC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-42020iASA4#,AVA44201212-201810

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-42020iASA4#201212-201810

48198HCAM, CAMBER ADJUST, NO.2

main48198-42010iASA4#201212-201810

48231ASPRING, COIL, REAR RH

main48231-42360iASA42..LE,LIMD,XLE201212-201810

main48231-42370iASA44..LE,LIMD,XLE201410-201810

main48231-42380iASA42..SE201610-201810

main48231-42390iAVA44..LIMD,XLE201510-201810

main48231-42400iASA44..SE201212-201610

main48231-42440iAVA44..SE201610-201810

main48231-42610iASA44..SE201610-201810

48231BSPRING, COIL, REAR LH

main48231-42360iASA42..SE201212-201810

main48231-42370iASA44..LE,LIMD,XLE201410-201810

main48231-42380iASA42..SE201610-201810

main48231-42390iAVA44..LIMD,XLE201510-201810

main48231-42400iASA44201212-201610

main48231-42440iAVA44..SE201610-201810

main48231-42610iASA44..SE201610-201810

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-42030iASA4#201212-201810

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-42020iASA4#201212-201810

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-42020iASA4#201212-201810

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-42030iASA4#201212-201810

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-42010iASA4#201212-201810

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-42010iASA4#201212-201810

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-42030iASA4#201212-201810

48516CBRACKET, REAR SHOCK ABSORBER, NO.1 RH

main48505-42010iASA4#201212-201810

48517ABRACKET, REAR SHOCK ABSORBER, NO.1 LH

main48506-42010iASA4#201212-201810

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-42310iASA4#201212-201312

MARK 48531-42310

main48531-42311iASA4#201401-201410

MARK 48531-42311

main48531-42350iASA4#201410-201510

MARK 48531-42350

main48531-42410iASA4#..SE201510-201803

MARK 48531-42410

main48531-42411iASA4#..SE201803-201810

MARK 48531-42411

main48531-42420iAVA44201510-201810

MARK 48531-42420

main48531-42450iASA4#..LE,LIMD,XLE201510-201810

MARK 48531-42450

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-42310iASA4#201212-201312

MARK 48531-42310

main48531-42311iASA4#201401-201410

MARK 48531-42311

main48531-42350iASA4#201410-201510

MARK 48531-42350

main48531-42410iASA4#..SE201510-201803

MARK 48531-42410

main48531-42411iASA4#..SE201803-201810

MARK 48531-42411

main48531-42420iAVA44201510-201810

MARK 48531-42420

main48531-42450iASA4#..LE,LIMD,XLE201510-201810

MARK 48531-42450

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-42030iASA4#,AVA44201212-201810

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-42010iASA4#201212-201810

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-42030iASA4#201212-201810

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-42010iASA4#201212-201810

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-42040iASA4#201410-201810

main48730-42050iASA4#201212-201410

48737COVER, REAR SUSPENSION ARM, RH

main48737-42021iASA4#201410-201810

48738COVER, REAR SUSPENSION ARM, LH

main48738-42021iASA4#201410-201810

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-42010iASA4#201410-201810

main48740-42020iASA4#201212-201410

48760EARM ASSY, TRAILING, REAR RH

main48760-42030iASA4#201212-201310

main48760-48110iASA4#,AVA44201311-201810

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-42040iASA4#,AVA44201212-201810

48780EARM ASSY, TRAILING, REAR LH

main48780-42030iASA4#201212-201310

main48780-48110iASA4#201311-201810

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-42020iASA4#201212-201810

48812BAR, STABILIZER, REAR

main48812-42040iASA4#201212-201810

main48812-48220iAVA44201510-201810

48817RCUSHION, STABILIZER(FOR REAR)

main48817-12020iASA4#201212-201303

NO.2

main48817-12030iASA4#201212-201303

NO.1

main48817-42040iASA4#201303-201311

NO.2

main48817-42050iASA4#201303-201311

NO.1

main48817-48010iASA4#201311-201810

NO.2

main48817-48020iASA4#201311-201810

NO.1

48818BUSH, STABILIZER, REAR

main48818-42020iASA4#201212-201810

main48818-48100iAVA44201510-201810

48830DLINK ASSY, REAR STABILIZER, RH

main48830-42021iASA4#201212-201312

main48830-42022iASA4#201312-201810

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-42010iASA4#201212-201810

48840ALINK ASSY, REAR STABILIZER, LH

main48830-42021iASA4#201212-201312

main48830-42022iASA4#201312-201810

9010512348

main90105-12348

9010512367

main90105-12367

9011912393

main90119-12393

9017812009

main90178-12009

9017812018

main90178-12018

9017814017

main90178-14017

9017912027

main90179-12027

91552L1270

main91552-L1270

91552L1480

main91552-L1480

91553L1650

main91553-L1650

91672L1225

main91672-L1225

91672L1265

main91672-L1265

91672L1285

main91672-L1285

91672L1295

main91672-L1295

91673A0616

main91673-A0616

9415121241

main94151-21241

9415121441

main94151-21441

9418461001

main94184-61001

53 parts on this diagram · 4 diagrams in section
