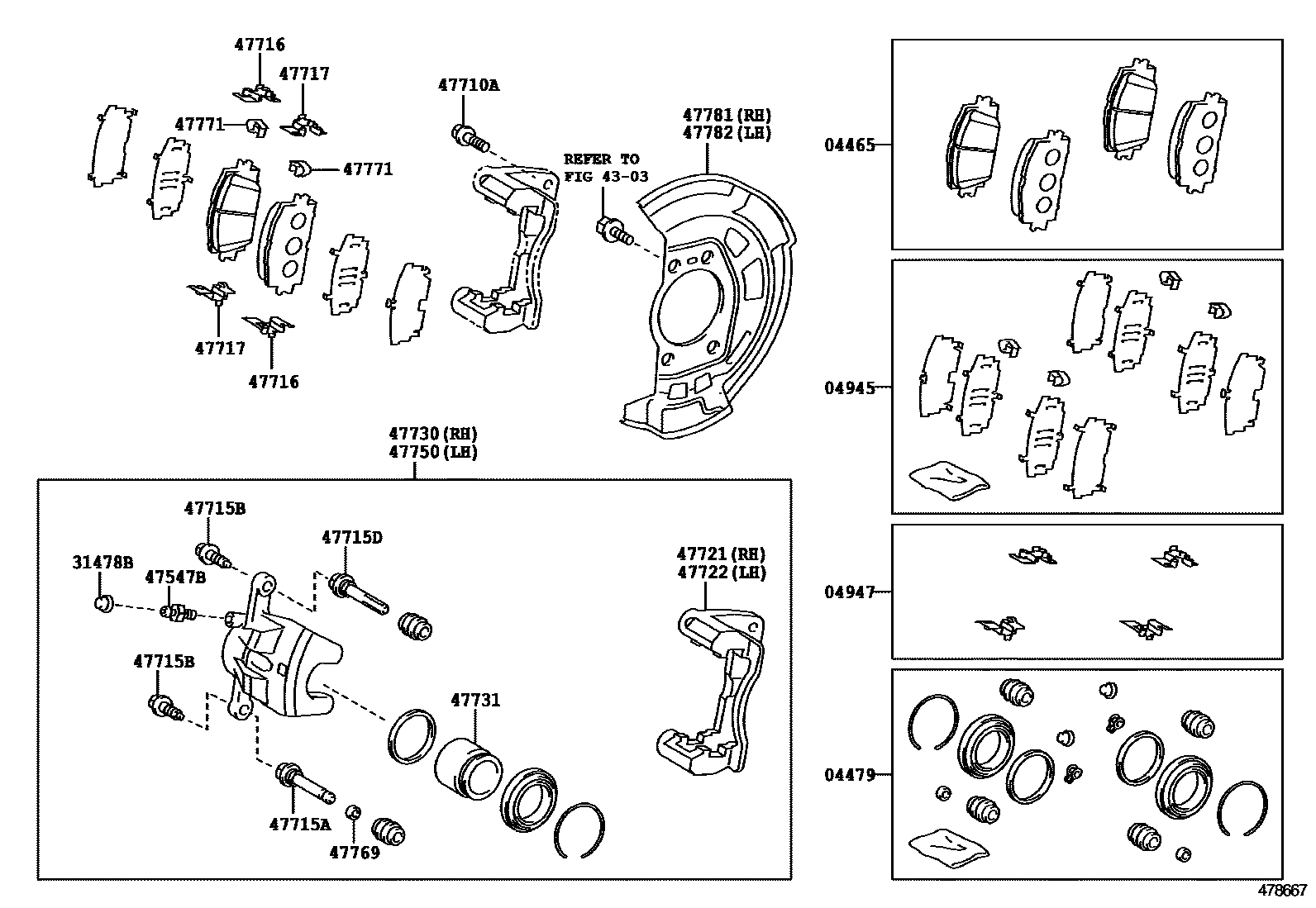

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-42180i201212-201810

MARK ADVICS PV565H

main04465-42200i201212-201810

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-33100i201212-201810

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-12110i201212-201311

sub04945-12111

main04945-12111i201311-201810

main04945-42060i201212-201810

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050i201212-201810

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010i201212-201810

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010i201212-201810

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208i201212-201810

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-12A10i201212-201810

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164i201212-201810

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-52190i201212-201810

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-52191i201212-201810

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-52191i201212-201810

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-12A70i201212-201810

main47721-42091i201212-201810

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-12A70i201212-201810

main47722-42091i201212-201810

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-12A70i201212-201810

main47730-42091i201212-201810

47731PISTON, FRONT DISC BRAKE

main47731-12A70i201212-201810

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-12A70i201212-201810

main47750-42091i201212-201810

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010i201212-201810

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-52191i201212-201810

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-42040i201212-201810

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-42040i201212-201810

22 parts on this diagram · 1 diagram in section
