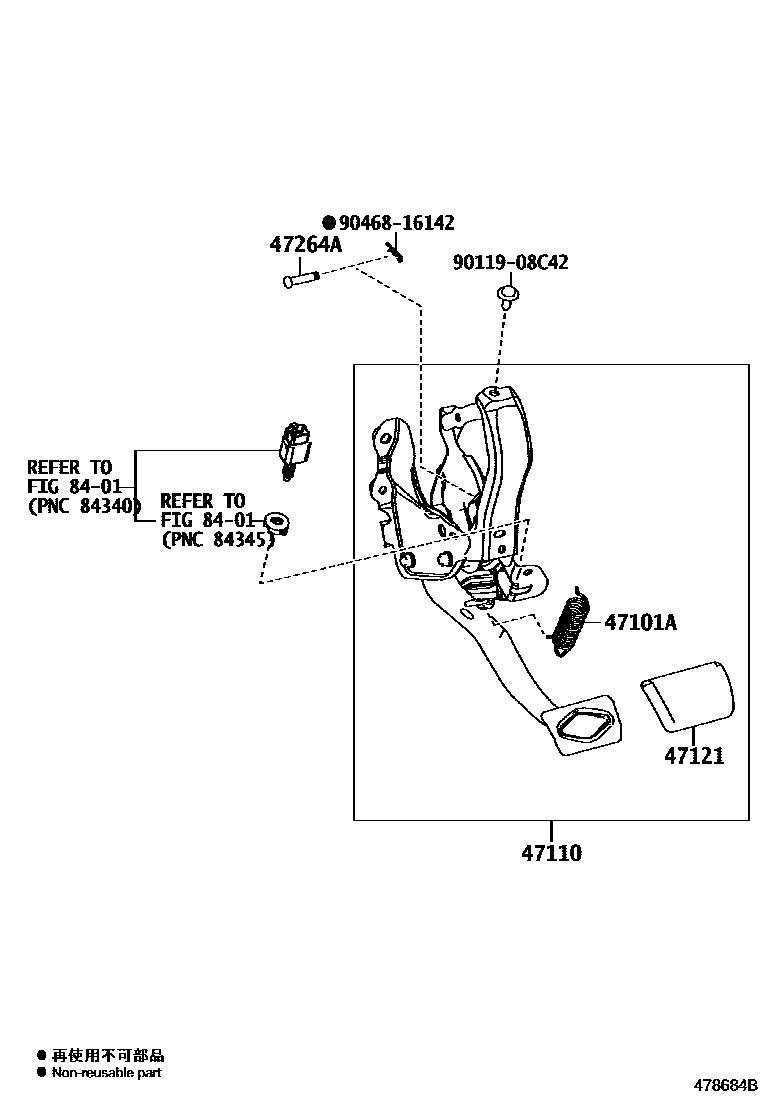

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main47146-42030iASA4#201212-201405

main47146-78020iASA4#201405-201510

47110SUPPORT ASSY, BRAKE PEDAL

main47110-42230iASA4#201212-201510

main47110-78030iAVA44201510-201810

47121PAD, BRAKE PEDAL

main47121-42010iASA4#201212-201510

main47121-42020iASA4#,AVA44201609-201810

47264APIN(FOR PUSH ROD)

main90249-08256iASA4#201212-201510

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

9046816142

main90468-16142

7 parts on this diagram · 2 diagrams in section
