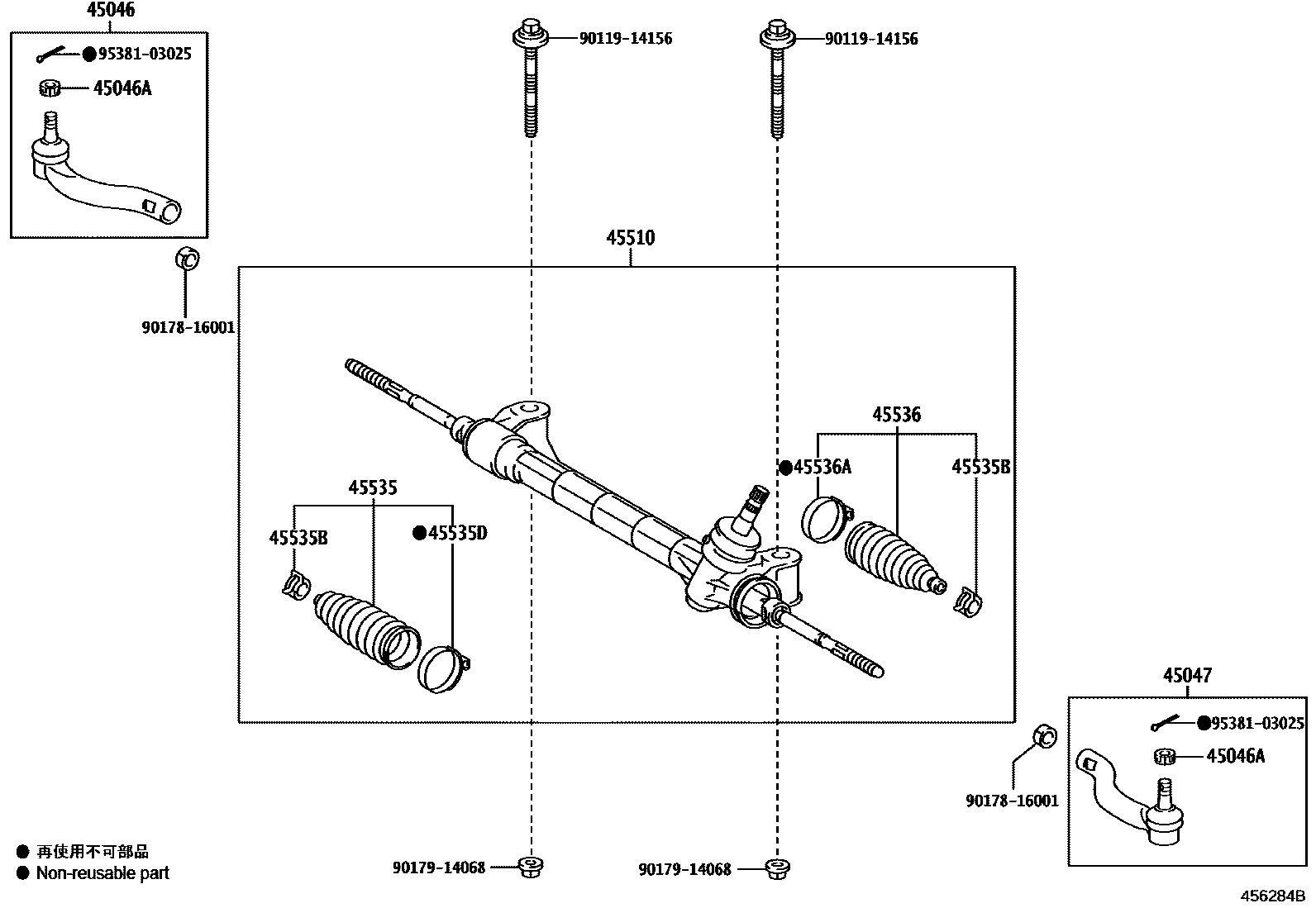

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-49195iASA4#201212-201510

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iASA4#201212-201510

45047END SUB-ASSY, TIE ROD, LH

main45047-49135iASA4#,AVA44201510-201810

45510GEAR ASSY, STEERING

main45510-42160supersedes 45510-42170iASA4#..LE,XLE; ASA44..LIMD;ASA42..LIMD,SE201510-201803

TIRE & DISKWHEEL-225/65R17H A/S ALMINUM 7.0J

main45510-42161iASA4#..LE,XLE; ASA44..LIMD;ASA42..LIMD,SE201804-201810

TIRE & DISKWHEEL-225/65R17H A/S ALMINUM 7.0J

main45510-42170iASA4#..LIMD,SE201510-201803

main45510-42171iASA4#..LIMD,SE201804-201810

main45510-42250iAVA44..LIMD,SE; AVA44..XLE201510-201803

TIRE & DISKWHEEL-225/65R17H A/S ALMINUM 7.0J HV

main45510-42251supersedes 45510-78023iAVA44..LIMD,SE; AVA44..XLE201804-201810

TIRE & DISKWHEEL-225/65R17H A/S ALMINUM 7.0J HV

45535BOOT, STEERING RACK, NO.1

main45535-49045iASA4#201212-201510

45535BCLIP(FOR STEERING RACK BOOT)

main45537-42020×2iASA4#201212-201510

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-42010iASA4#201212-201510

45536BOOT, STEERING RACK, NO.2

main45535-49045iASA4#,AVA44201510-201810

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-42010iASA4#,AVA44201510-201810

9011914156

main90119-14156

9017816001

main90178-16001

9017914068

main90179-14068

9538103025

main95381-03025

13 parts on this diagram · 1 diagram in section
