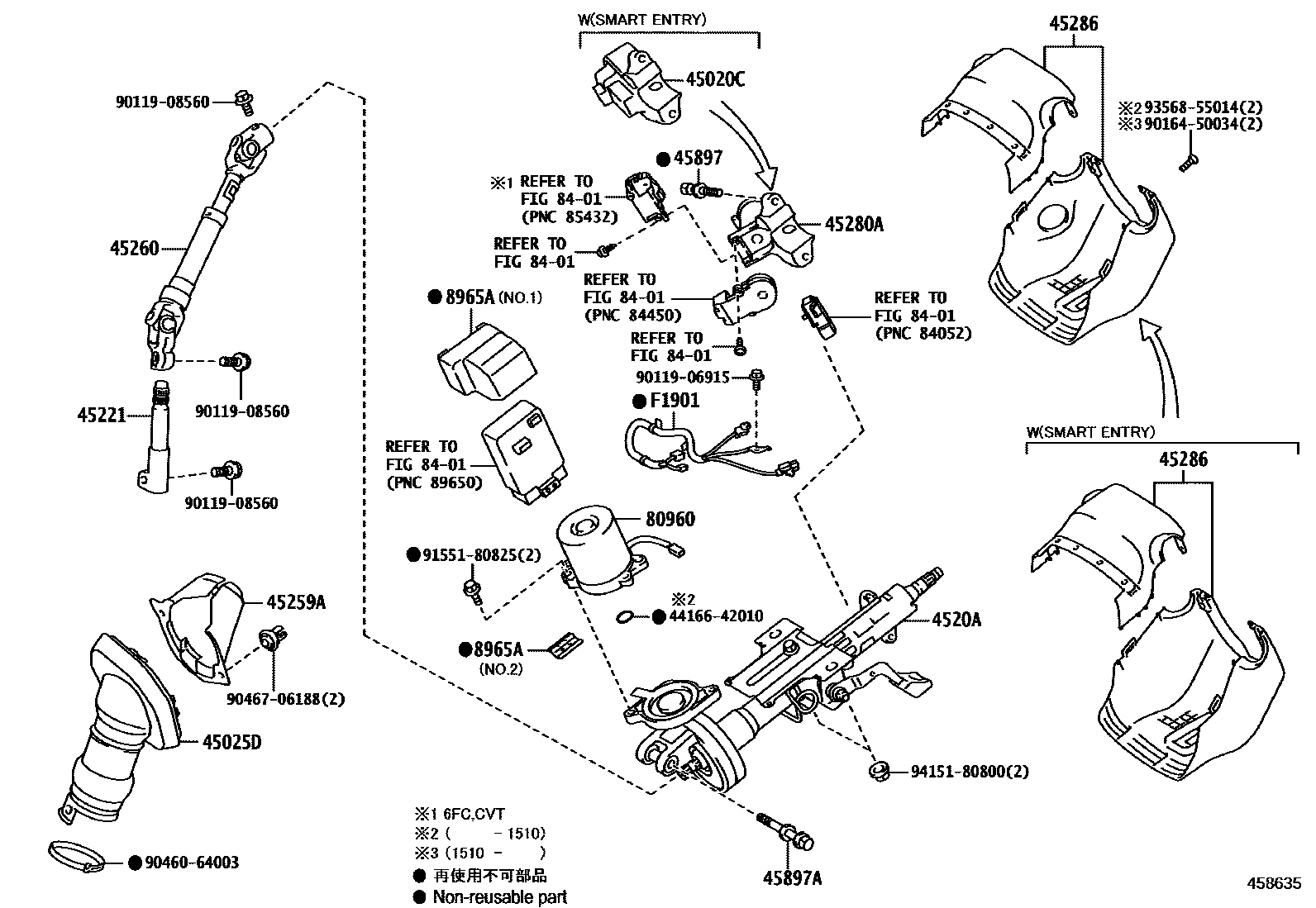

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-33170i201510-201810

KEY PLATE-MASTER 2 FOR SMART

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-42080i201212-201510

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-42090i201510-201810

KEY PLATE-MASTER 2 FOR SMART

main4520A-42100i201212-201510

main4520A-42070i201212-201510

KOREA SPEC&WIRELESS DOOR LOCK-SMART ENTRY+PANIC BUTTON+POWER BACK DOOR

45221SHAFT, STEERING INTERMEDIATE

main45221-42090i201212-201510

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-42020i201212-201510

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-42110i201212-201510

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-42190i201212-201510

45286COVER, STEERING COLUMN

main45286-42920-C0supersedes 45286-42921-C0i201510-201810

BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#; KEY PLATE-MASTER 2 FOR SMART,BLACK,TRIM1#,2#,4#; KEY PLATE-MASTER 2 FOR SMART,BLACK,TRIM2#,3#

main45286-42921-C0i201212-201510

BLACK,TRIM1#,2#,3#,4#; BLACK,TRIM1#,2#,4#

45897BOLT, STEERING LOCK SET

main45897-12020×2i201212-201510

45897ABOLT, TILT STEERING PAWL SET

main90119-10981i201212-201510

80960MOTOR ASSY, POWER STEERING

main80960-42050i201510-201810

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8965APROTECTOR, POWER STEERING COMPUTER

main8965A-33030i201510-201810

NO.1

main8965A-33040i201212-201510

NO.2

F1901WIRE SUB-ASSY, COMPUTER

mainF190142011i201212-201510

4416642010RING, SEAL, NO.2

main44166-42010

9011906915

main90119-06915

9011908560

main90119-08560

9016450034

main90164-50034

9046064003

main90460-64003

9046706188

main90467-06188

9155180825

main91551-80825

9356855014

main93568-55014

9415180800

main94151-80800

23 parts on this diagram · 1 diagram in section
