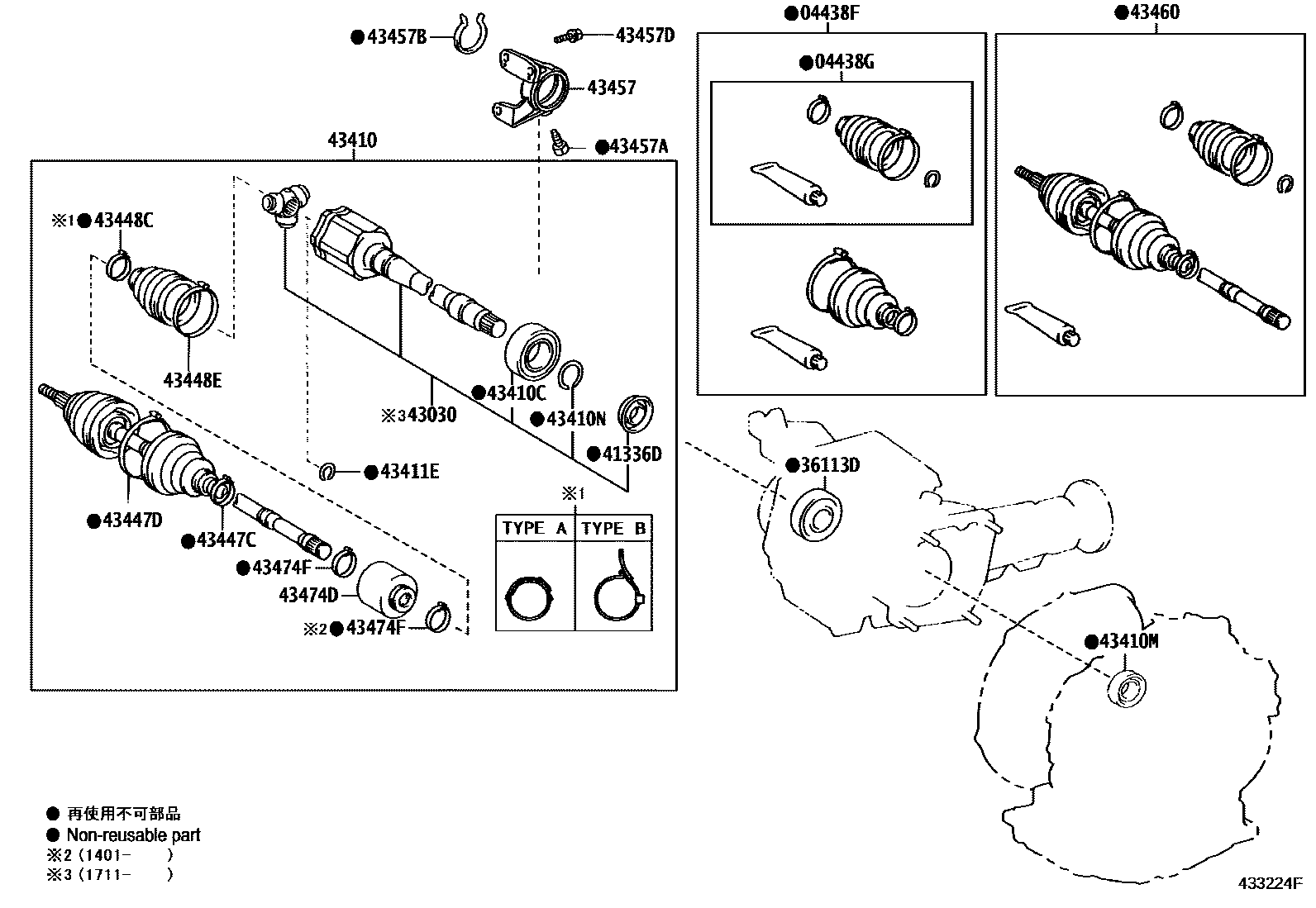

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH 0004 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-42010iASA44201212-201409

main04427-42011iASA44201510-201711

sub04427-42013

main04427-42130iASA42201212-201410

main04427-42131iASA42201410-201510

main04427-42132iASA42,AVA44201711-201810

main04427-42161iASA44201711-201810

sub04427-42162

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-33070iASA42201212-201510

main04437-33090iASA44201711-201810

main04437-44041iASA42,AVA44201711-201810

main04438-42180iASA44201510-201711

36113DSEAL, OIL (FOR TRANSFER CASE RH)

main90311-35056iASA44201212-201510

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iASA42201212-201510

main41336-52020iASA44201212-201510

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-42130iASA44201711-201810

main43030-42160iASA42,AVA44201711-201810

main43030-58011iAVA44..CND201510-201711

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0R140iASA44201611-201708

(L)

main43410-42200iASA44201708-201710

main43410-42201iASA44201711-201810

main43410-42280iASA42,AVA44201510-201710

main43410-42281iASA42,AVA44201711-201810

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36006iASA44201212-201510

main90363-41003iASA42201212-201510

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40038iASA42201212-201510

main90311-40039iAVA44201510-201810

main90316-34001iASA44201212-201510

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iASA44201212-201510

main90520-38015iASA42201212-201510

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-28010iASA4#,AVA44201510-201810

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42120iASA4#201212-201510

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-42110iASA4#201212-201510

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-33120iASA4#,AVA44201711-201810

TYPE B:REFER ILLUST.

main42345-42010iASA4#201212-201510

TYPE A:REFER ILLUST.

main90949-01559iASA4#,AVA44201510-201711

TYPE B:REFER ILLUST.

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12160iASA4#201212-201510

main42345-33140iASA4#,AVA44201711-201810

PNC 43410=TYPE B

43457BRACKET, DRIVE SHAFT BEARING

main43457-33040iAVA44201510-201810

main43457-42150iASA44201212-201510

main43457-48010iASA42201510-201810

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iASA4#201212-201510

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iASA44201212-201510

main90521-78004iASA42201212-201510

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iASA4#201212-201510

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-49655iASA44201408-201410

sub43470-49656

main43470-80340iASA42201408-201410

main43470-80352iAVA44..CND201510-201711

main43470-80455iAVA44..CND201711-201810

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-48030iASA4#201212-201409

main43474-48090iASA4#201410-201510

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12090×2iASA4#,AVA44201711-201810

main42345-14010iASA4#201212-201410

21 parts on this diagram · 4 diagrams in section
