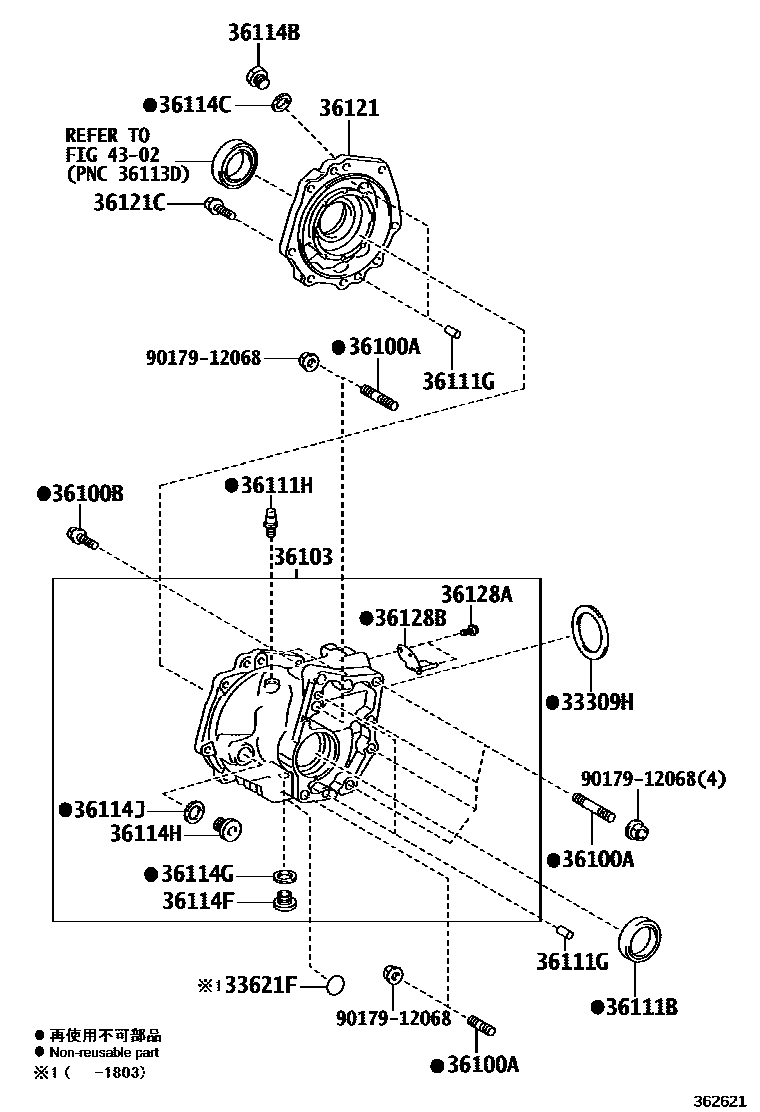

Toyota 662250 — TRANSFER CASE & EXTENSION HOUSING

33309HWASHER, TRANSFER OUTPUT SHAFT

33621FLABEL, TRANSAXLE OIL INFORMATION

36100ABOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)

36100BBOLT (FOR TRANSFER & TRANSAXLE SETTING)

36103CASE SUB-ASSY, TRANSFER

36103-42040

36103-42041

36103-42070

36111BSEAL, OIL (FOR TRANSFER CASE)

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

36111HPLUG, BREATHER (FOR TRANSFER CASE)

36114BPLUG, NO.1 (FOR TRANSFER CASE)

36114CGASKET, NO.1 (FOR TRANSFER CASE)

36114FPLUG (FOR TRANSFER DRAIN)

36114GGASKET (FOR TRANSFER DRAIN PLUG)

36114HPLUG, NO.2 (FOR TRANSFER CASE)

36114JGASKET, NO.2 (FOR TRANSFER CASE)

36121COVER, TRANSFER CASE, NO.1

36121-52020

91552-81030

36121CBOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVER)

36128ABOLT (FOR BREATHER OIL DEFLECTOR)

36128BDEFLECTOR, BREATHER OIL

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

9017912068

90179-12068

20 parts on this diagram · 1 diagram in section

TRANSFER CASE & EXTENSION HOUSING for Toyota 662250

This section contains 20 genuine Toyota parts for the TRANSFER CASE & EXTENSION HOUSING system of the Toyota 662250. Key components include: WASHER, TRANSFER OUTPUT SHAFT, LABEL, TRANSAXLE OIL INFORMATION, BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING), BOLT (FOR TRANSFER & TRANSAXLE SETTING), CASE SUB-ASSY, TRANSFER.
