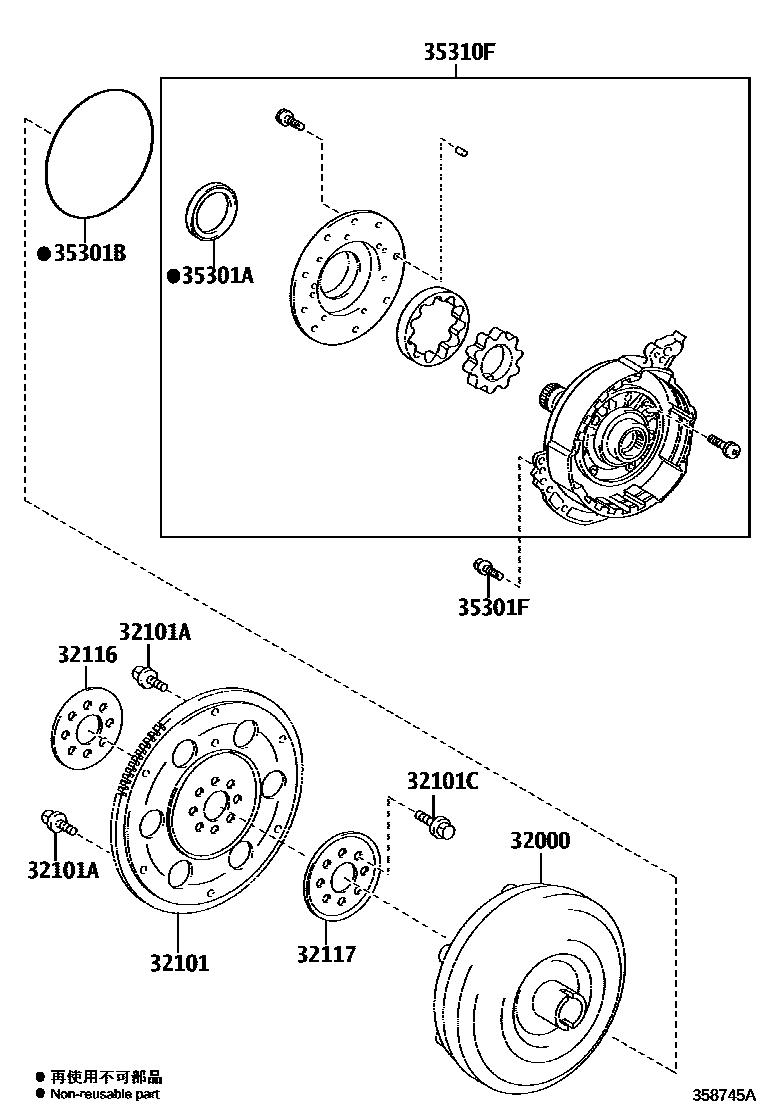

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1U760E,U760F 0002 1U760E,U760F

32000CONVERTER ASSY, TORQUE

main32000-33143iASA42201608-201810

*285

main32000-73011iASA4#201212-201402

sub32000-73012

main32000-73012iASA4#201403-201506

sub32000-73013

main32000-73013iASA4#201507-201510

sub32000-33143

main32000-73013iASA4#201510-201810

*284

sub32000-33143

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-06060iASA4#201312-201810

(L)

main32101-73010iASA4#201212-201810

(J)

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iASA4#201212-201810

*9-1.25PX12.4-7.3,BLACK

main90119-09025iASA4#201212-201810

*9-1.25PX12.4-8.4,SILVER WHITE

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12384iASA4#201212-201810

*12-1.25PX21-15

32116SPACER, DRIVE PLATE, FRONT

main32116-20050iASA4#201212-201810

32117SPACER, DRIVE PLATE, REAR

main32117-06010iASA4#201312-201810

(L)

main32117-20060iASA4#201212-201312

main32117-20060iASA4#201312-201810

(J)

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-43010iASA4#201212-201810

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-33010iASA4#201212-201810

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main91551-80835iASA4#201212-201810

*8-1.25PX35-22

35310FPUMP ASSY, FRONT OIL

main35310-73013iASA4#201212-201302

10 parts on this diagram · 2 diagrams in section
