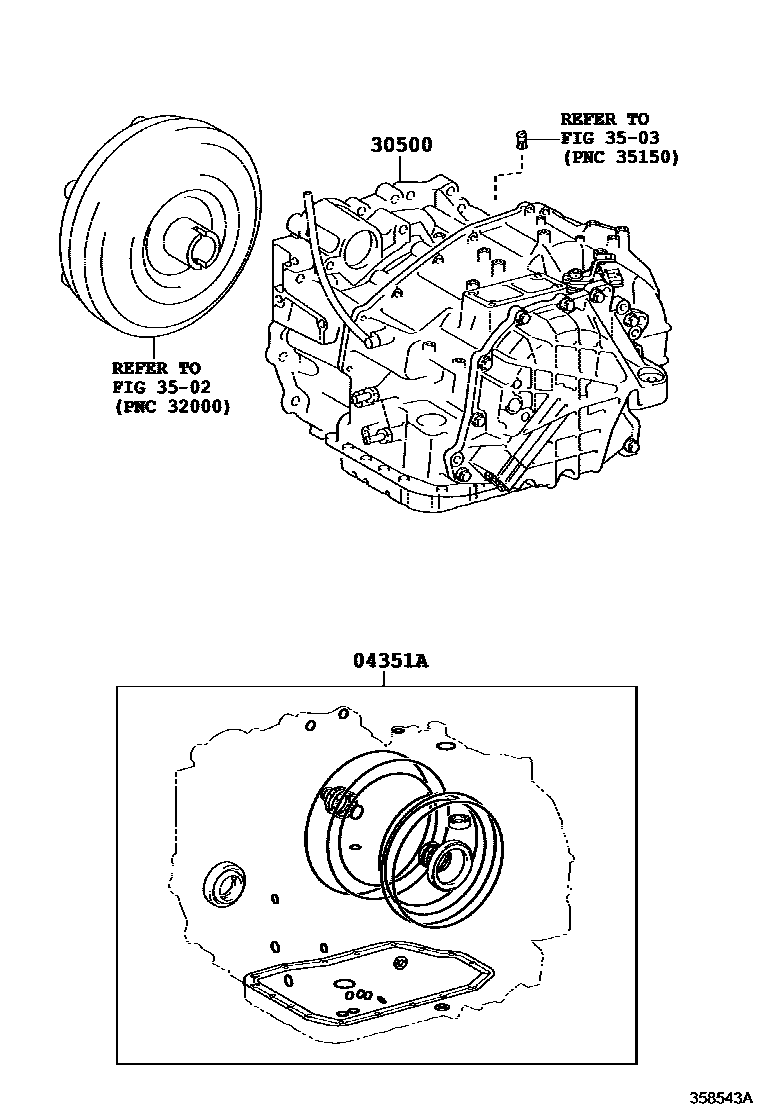

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-48183iASA42201212-201510

main04351-73012iASA44201212-201510

30500TRANSAXLE ASSY, AUTOMATIC

main30500-21250iASA42201608-201810

U760E,*285

main30500-42270iASA44201212-201409

U760F

main30500-42271iASA44201410-201510

U760F

main30500-42310iASA44201709-201810

U760E

main30500-42340iASA42201510-201810

U760E,*284

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

4 parts on this diagram · 1 diagram in section
