FUEL INJECTION SYSTEM

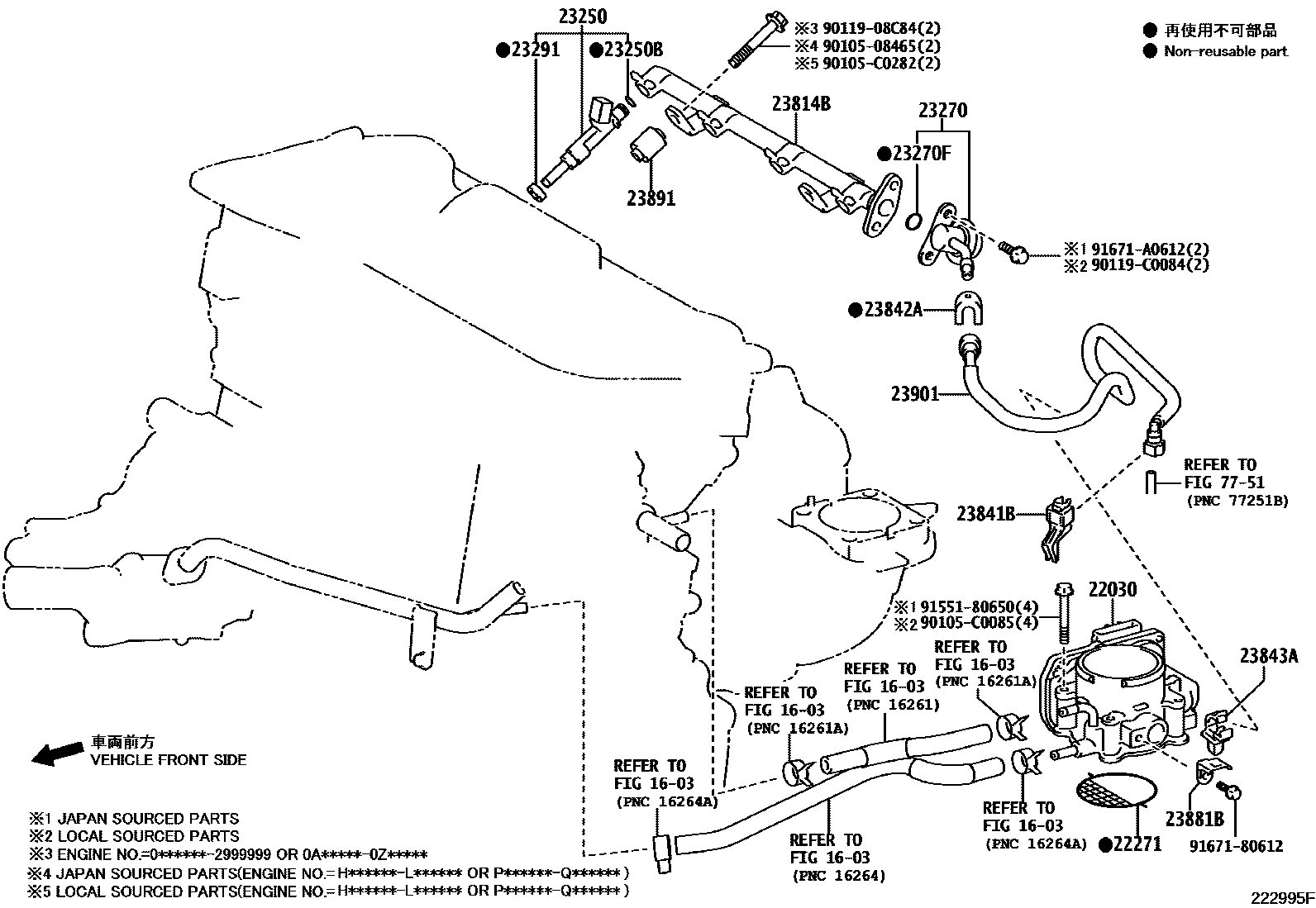

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0V030i201510-201810

*347

main22030-0V040i201312-201510

*347

main22030-36010i201212-201510

*265 OR *524

main22030-36020i201510-201810

*265 OR *524

22271GASKET, THROTTLE BODY

main22271-36010i201212-201510

*265 OR *524

main22271-36020i201510-201810

*347,*265 OR *524

23250INJECTOR ASSY, FUEL

main23209-09230×4i201312-201510

*347

main23209-39175×4i201510-201810

*265 OR *524

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4i201212-201510

*265 OR *524

main90301-C0072×4i201512-201810

(L),*347

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-36031i201212-201510

*265 OR *524

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i201212-201510

*265 OR *524

23291INSULATOR, INJECTOR VIBRATION

main23291-0V010×4i201312-201510

(L),*347

main23291-28020×4i201312-201510

(J),*347

23814BPIPE, FUEL DELIVERY

main23814-0V050i201605-201810

(L),*347

main23814-36040i201212-201510

*265 OR *524

main23814-36050i201510-201810

*347,*265 OR *524

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-36020i201212-201510

main23841-37080i201510-201601

main23841-37081i201602-201810

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i201510-201810

23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)

main23847-28010i201212-201510

23881BBRACKET, FUEL HOSE

main23881-36010i201212-201510

main23881-36040i201510-201810

23891SPACER, FUEL DELIVERY

main23891-36010×2i201212-201510

*265 OR *524

23901TUBE SUB-ASSY, FUEL

main23901-36070i201212-201510

main23901-36140i201510-201810

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9010508465

main90105-08465

90105C0085

main90105-C0085

90105C0282

main90105-C0282

9011908C84

main90119-08C84

90119C0084

main90119-C0084

9155180650

main91551-80650

9167180612

main91671-80612

91671A0612

main91671-A0612

24 parts on this diagram · 2 diagrams in section
