AIR CLEANER

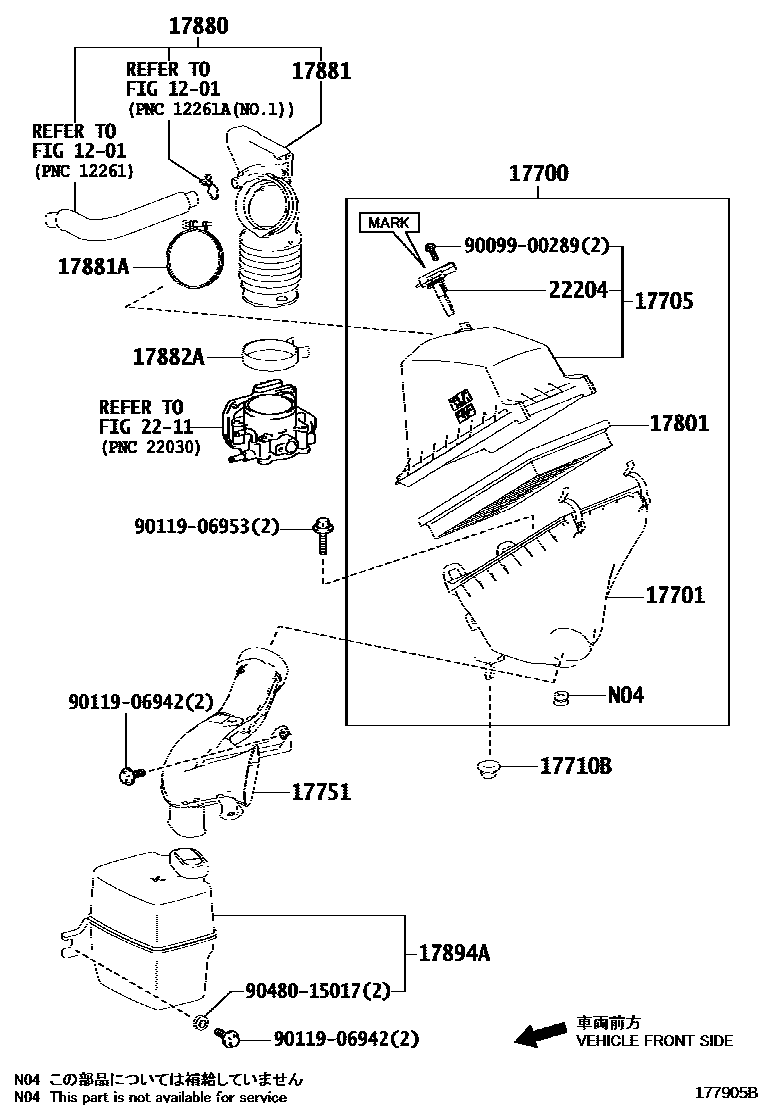

Parts diagram

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-36270i201212-201510

main17700-36340i201510-201810

17701CASE SUB-ASSY, AIR CLEANER

main17701-36220i201212-201510

17705CAP SUB-ASSY, AIR CLEANER

main17705-36100i201212-201510

main17705-36120i201510-201810

17710BGROMMET

main90480-18006i201212-201510

17751INLET, AIR CLEANER, NO.1

main17751-36051i201212-201510

main17751-36080i201510-201810

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0V020i201510-201810

(L)

main17801-37021i201510-201810

main17801-38011i201212-201510

(J)

17880HOSE ASSY, AIR CLEANER

main17880-36090i201212-201510

17881HOSE, AIR CLEANER, NO.1

main17881-36120i201212-201510

main17881-36140i201510-201810

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850i201212-201510

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i201510-201810

main90466-71001i201510-201810

17894ARESONATOR, INTAKE AIR, NO.2

main17894-36031i201212-201410

main17894-36050i201510-201810

main17894-36080i201410-201510

main17894-36040i201510-201810

KOREA SPEC

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i201212-201510

MARK 22204-0T040

main22204-0V010i201212-201510

MARK 22204-0V010

main22204-0V020i201212-201510

MARK 22204-0V020

main22204-28010i201510-201810

MARK 22204-28010

9009900289

main90099-00289

9011906942

main90119-06942

9011906953

main90119-06953

9048015017

main90480-15017
