Toyota 662250 — EXHAUST PIPE

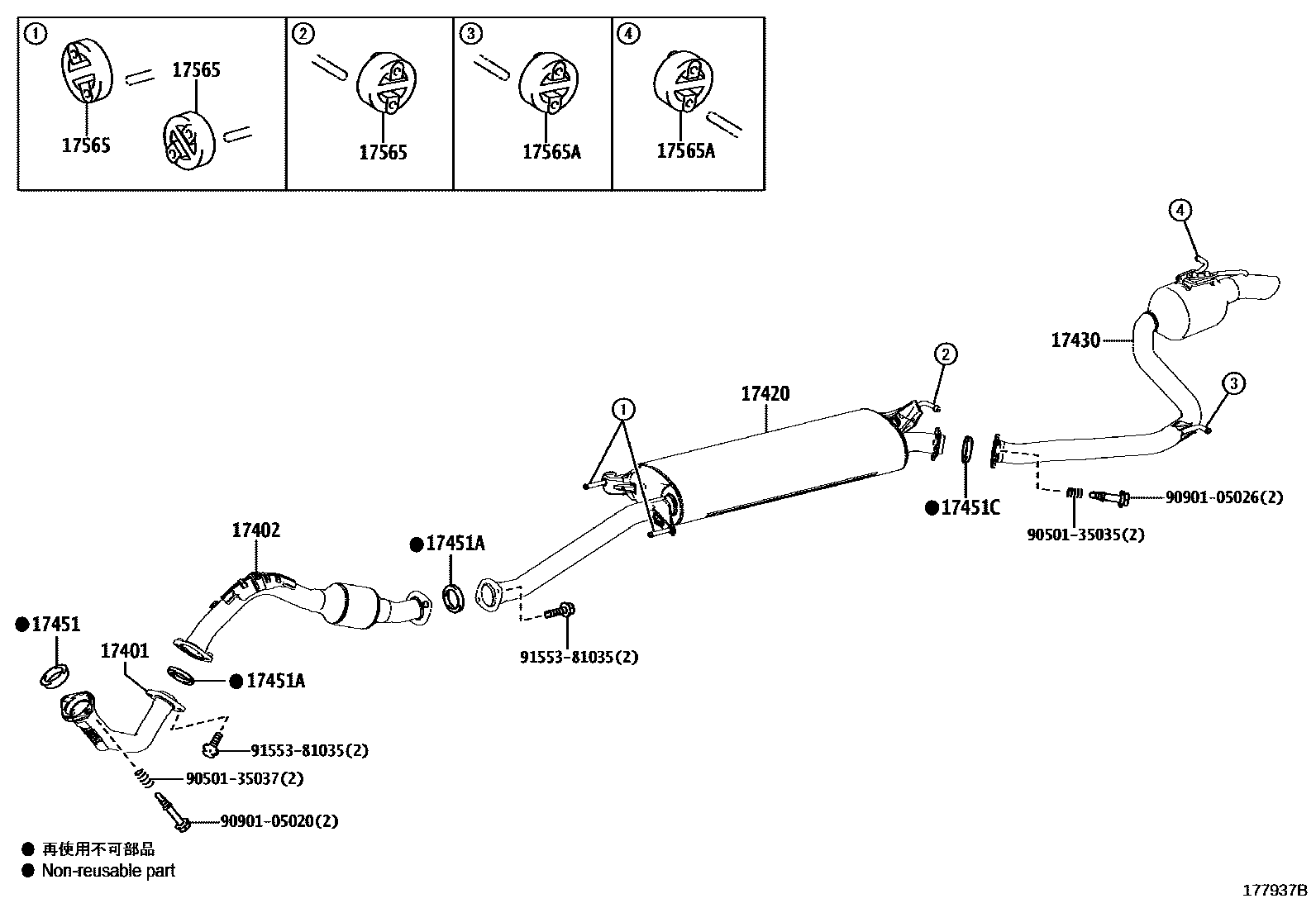

Parts diagram

17401PIPE SUB-ASSY, EXHAUST, FRONT

17402PIPE SUB-ASSY, EXHAUST, FRONT NO.2

17420PIPE ASSY, EXHAUST, CENTER

17430PIPE ASSY, EXHAUST, TAIL

17451GASKET, EXHAUST PIPE

17451AGASKET, EXHAUST PIPE, NO.2

17451CGASKET, EXHAUST PIPE, NO.3

17565SUPPORT, EXHAUST PIPE, NO.5

17565ASUPPORT, EXHAUST PIPE, NO.4

9050135035

9050135037

9090105020

9090105026

9155381035

14 parts on this diagram · 2 diagrams in section

EXHAUST PIPE for Toyota 662250

This section contains 17 genuine Toyota parts for the EXHAUST PIPE system of the Toyota 662250. Key components include: PIPE SUB-ASSY, EXHAUST, FRONT, PIPE SUB-ASSY, EXHAUST, FRONT NO.2, PIPE ASSY, EXHAUST, FRONT, PIPE ASSY, EXHAUST, CENTER, PIPE ASSY, EXHAUST, TAIL.
