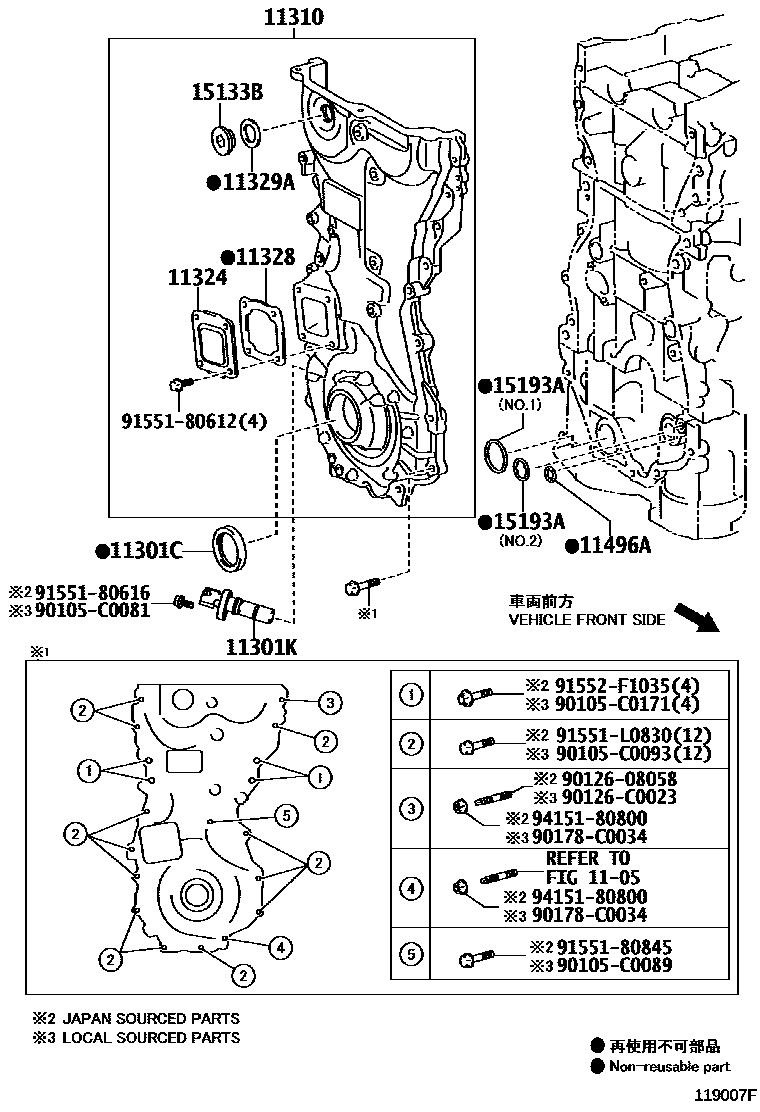

TIMING GEAR COVER & REAR END PLATE

1105CYLINDER BLOCK

→ Go to FIG 11-05

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40042i2ARFE..ASA4#201408-201510

*265 OR *524

main90311-42043i2ARFE..ASA4#201212-201312

main90311-42051i2ARFE..ASA4#201312-201408

*265 OR *524

main90311-C0036i2ARFE..ASA4#201312-201510

*347

11301KSENSOR, CRANK POSITION

main90919-05070i2ARFE..ASA4#201212-201510

*265 OR *524

11310COVER ASSY, TIMING CHAIN

main11310-0V030i2ARFE..ASA4#201312-201510

*347

main11310-36020i2ARFE..ASA4#201212-201510

*265 OR *524

11324PLATE, TIMING CHAIN COVER

main11324-36010i2ARFE..ASA4#201212-201510

*265 OR *524

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-36020i2ARFE..ASA4#201212-201510

*265 OR *524

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-36010i2ARFE..ASA4#201212-201502

*265 OR *524

main11329-36020i2AR#..ASA4#,AVA44201510-201810

*347,*265 OR *524

11496AGASKET, OIL HOLE COVER

main11496-0V010i2ARFE..ASA4#201312-201510

*347

main11496-36010i2ARFE..ASA4#201212-201510

*265 OR *524

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-36020i2AR#..ASA4#,AVA44201510-201810

*347,*265 OR *524

15193AGASKET, OIL PUMP

main15193-0V010i2ARFE..ASA4#201312-201510

*347,NO.1:REF.ILLUST

main15193-36010i2ARFE..ASA4#201212-201510

*265 OR *524,NO.1

main15197-0V010i2AR#..ASA4#,AVA44201510-201810

*347,NO.2:REF.ILLUST

main15197-36010i2ARFE..ASA4#201212-201510

*265 OR *524,NO.2

90105C0081

main90105-C0081

90105C0089

main90105-C0089

90105C0093

main90105-C0093

90105C0171

main90105-C0171

9012608058

main90126-08058

90126C0023

main90126-C0023

90178C0034

main90178-C0034

9155180612

main91551-80612

9155180616

main91551-80616

9155180845

main91551-80845

91551L0830

main91551-L0830

91552F1035

main91552-F1035

9415180800

main94151-80800

23 parts on this diagram · 1 diagram in section
