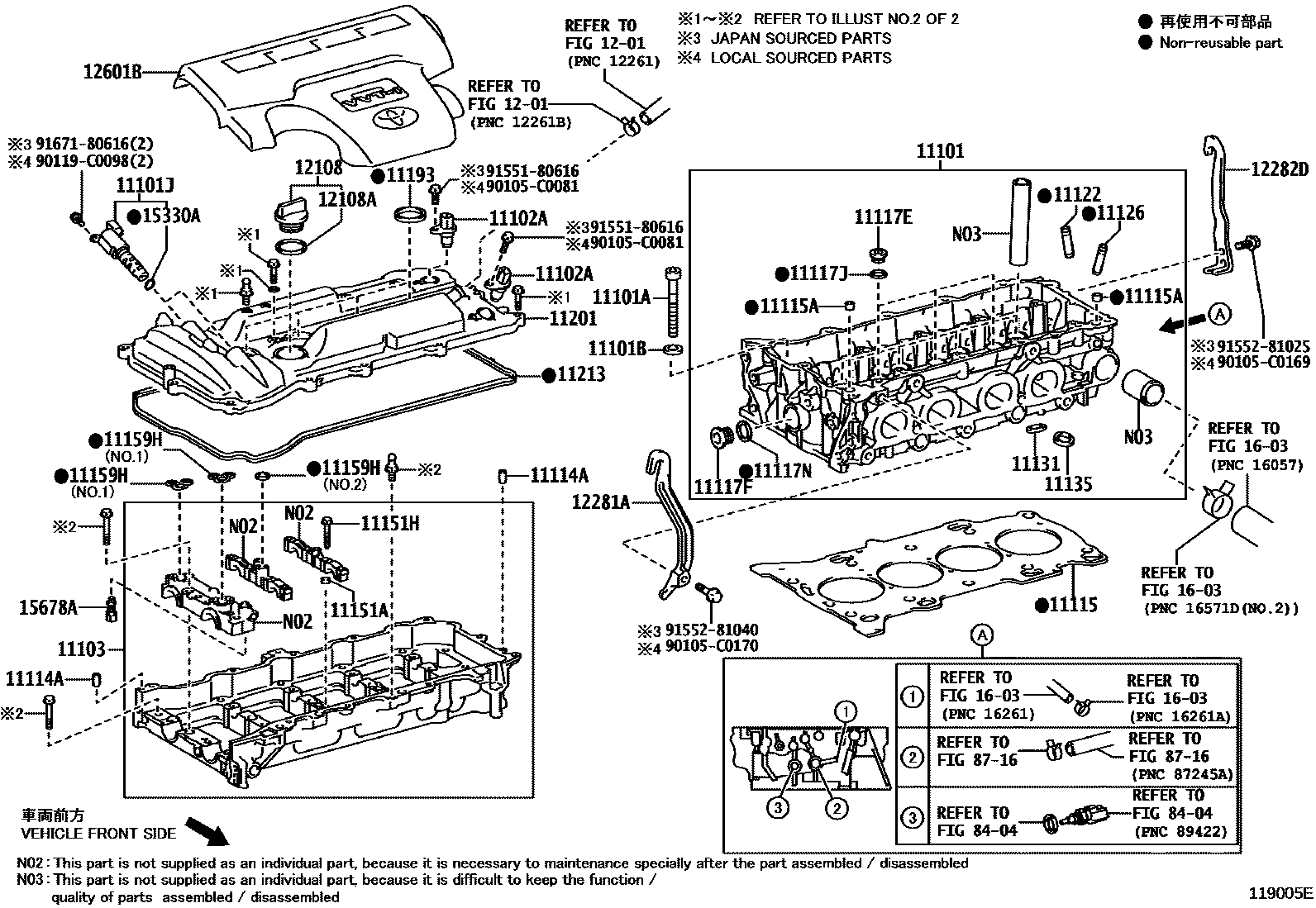

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
*265 OR *524
11101ABOLT(FOR CYLINDER HEAD SET)
(J),*347,*265 OR *524
*347
*265 OR *524
(J),*347
(L),*347
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
*265 OR *524
*347
(J),*347
(L),*347
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
*347
*265 OR *524
11102ASENSOR, CAMSHAFT POSITION
*265 OR *524
*347
(J),*347
(L),*347
11103HOUSING SUB-ASSY, CAMSHAFT
*265 OR *524
*265 OR *524
11114APIN, STRAIGHT
L=14,OD=6,*265 OR *524
L=14,OD=6,*347
L=14,OD=6,*347,*265 OR *524
11115GASKET, CYLINDER HEAD
(L),*347
(J),*347,*265 OR *524
*347,*265 OR *524
11115APIN, RING
(J),*347,*265 OR *524
*347
*265 OR *524
(J),*347
(L),*347
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
*265 OR *524
*347
*347,*265 OR *524
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
*347,*265 OR *524
*265 OR *524
*347
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
*347
*265 OR *524
(J),*347
(J),*347,*265 OR *524
(L),*347
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
*347
*265 OR *524
*347,*265 OR *524
11122BUSH, INTAKE VALVE GUIDE
STD,*347
O/S 0.05,*265 OR *524
O/S 0.05
O/S 0.05,*347
11126BUSH, EXHAUST VALVE GUIDE
STD,*347
O/S 0.05,*347
11131SEAT, INTAKE VALVE
STD,*347
STD,*265 OR *524
O/S 0.03,*347
O/S 0.03,*347
O/S 0.03,*265 OR *524
O/S 0.03
11135SEAT, EXHAUST VALVE
STD,*347
STD,*265 OR *524
O/S 0.03,*347,*265 OR *524
O/S 0.03,*265 OR *524
O/S 0.03,*347
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8,*347
L=12.5,OD=8,*265 OR *524
L=12.5,OD=8,(J),*347
L=12.5,OD=8,(J),*347,*265 OR *524
L=12.5,OD=8,(L),*347
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
*347
*265 OR *524
(J),*347
(J),*347,*265 OR *524
(L),*347
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
*347,NO.1:REF.ILLUST
*265 OR *524,NO.1
*265 OR *524,NO.2
*347,NO.2:REF.ILLUST
11193GASKET, SPARK PLUG TUBE
*347
*265 OR *524
11201COVER SUB-ASSY, CYLINDER HEAD
*347
*347
*265 OR *524
*265 OR *524
11213GASKET, CYLINDER HEAD COVER
(L),*347
(J),*347,*265 OR *524
*265 OR *524
(J),*347
1201
12108CAP SUB-ASSY, OIL FILLER
*265 OR *524
*347
*347,*265 OR *524
12108AGASKET(FOR OIL FILLER CAP)
*265 OR *524
*347
*347,*265 OR *524
12281AHANGER, ENGINE, NO.1
*347
*265 OR *524
12282DHANGER, ENGINE, NO.2
*347
*265 OR *524
*347
12601BCOVER SUB-ASSY, ENGINE, NO.1
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
*347
*265 OR *524
15678AFILTER, OIL CONTROL VALVE
(L),*347
*265 OR *524
*347
(J),*347
1603
8404
8716
90105C0081
main90105-C0081
90105C0169
main90105-C0169
90105C0170
main90105-C0170
90119C0098
main90119-C0098
9155180616
main91551-80616
9155281025
main91552-81025
9155281040
main91552-81040
9167180616
main91671-80616
42 parts on this diagram · 4 diagrams in section
