SHORT BLOCK ASSEMBLY

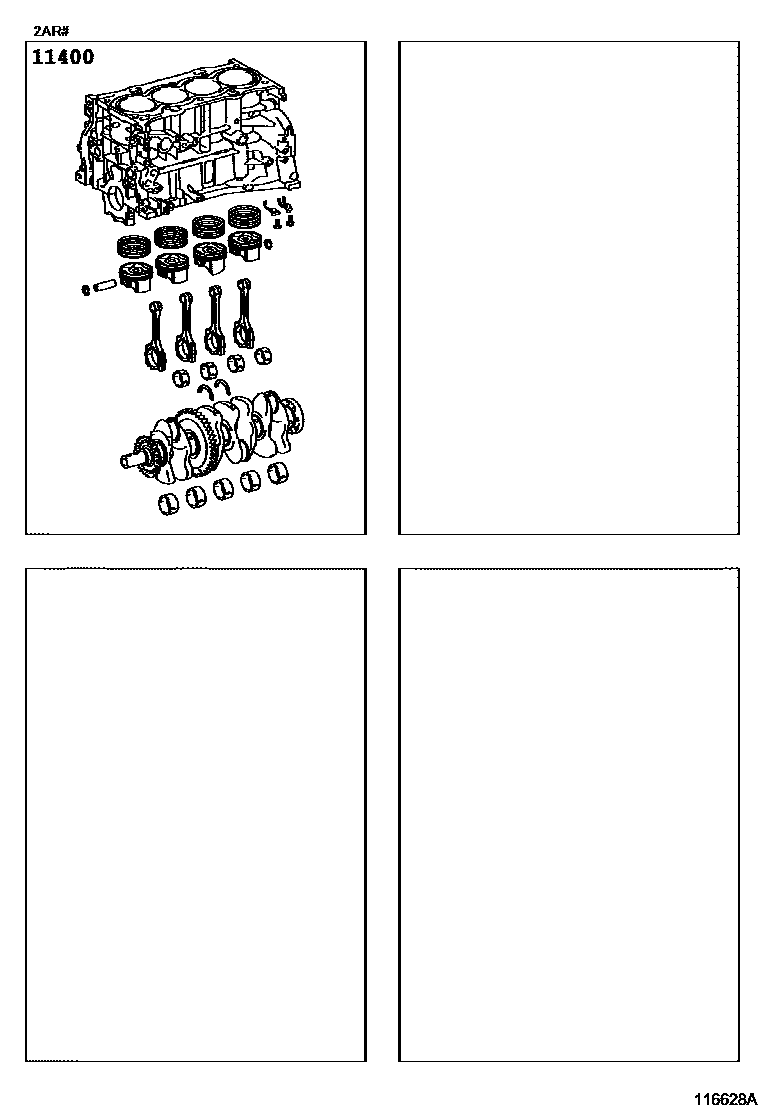

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0V060i201510-201810

(L)

main11400-0V130i201510-201810

*347

main11400-36060i201212-201405

(J)

main11400-36061i201405-201510

(J)

main11400-36110i201510-201810

*524

1 parts on this diagram · 1 diagram in section
