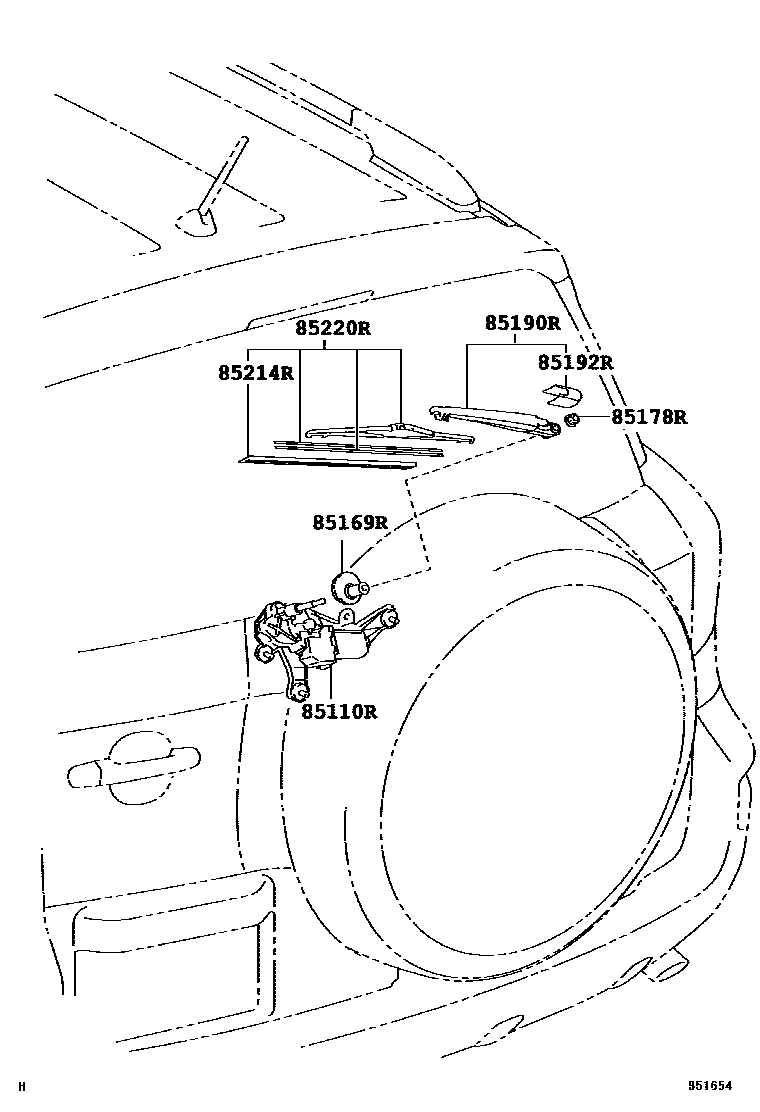

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-42060iACA3#,GSA3#..JPP200511-200712

main85130-42061iACA3#,GSA3#..JPP200801-200808

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85143-42040iACA3#,GSA3#..JPP200511-200808

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iACA3#,GSA3#..JPP200511-200808

85190RARM ASSY, REAR WIPER

main85241-42070iACA3#,GSA3#..JPP200511-200808

85192RCOVER, REAR WIPER ARM

main85292-42020iACA3#,GSA3#..JPP200511-200808

85214RRUBBER, REAR WIPER

main85214-31010iACA3#,GSA3#..JPP200511-200808

main85214-42040iASA3#,GSA3#..JPP200812-201212

85220RBLADE ASSY, REAR WIPER

main85242-42030iACA3#,GSA3#..JPP200511-200808

7 parts on this diagram · 1 diagram in section
