ABS & VSC

0001 1 0002 1

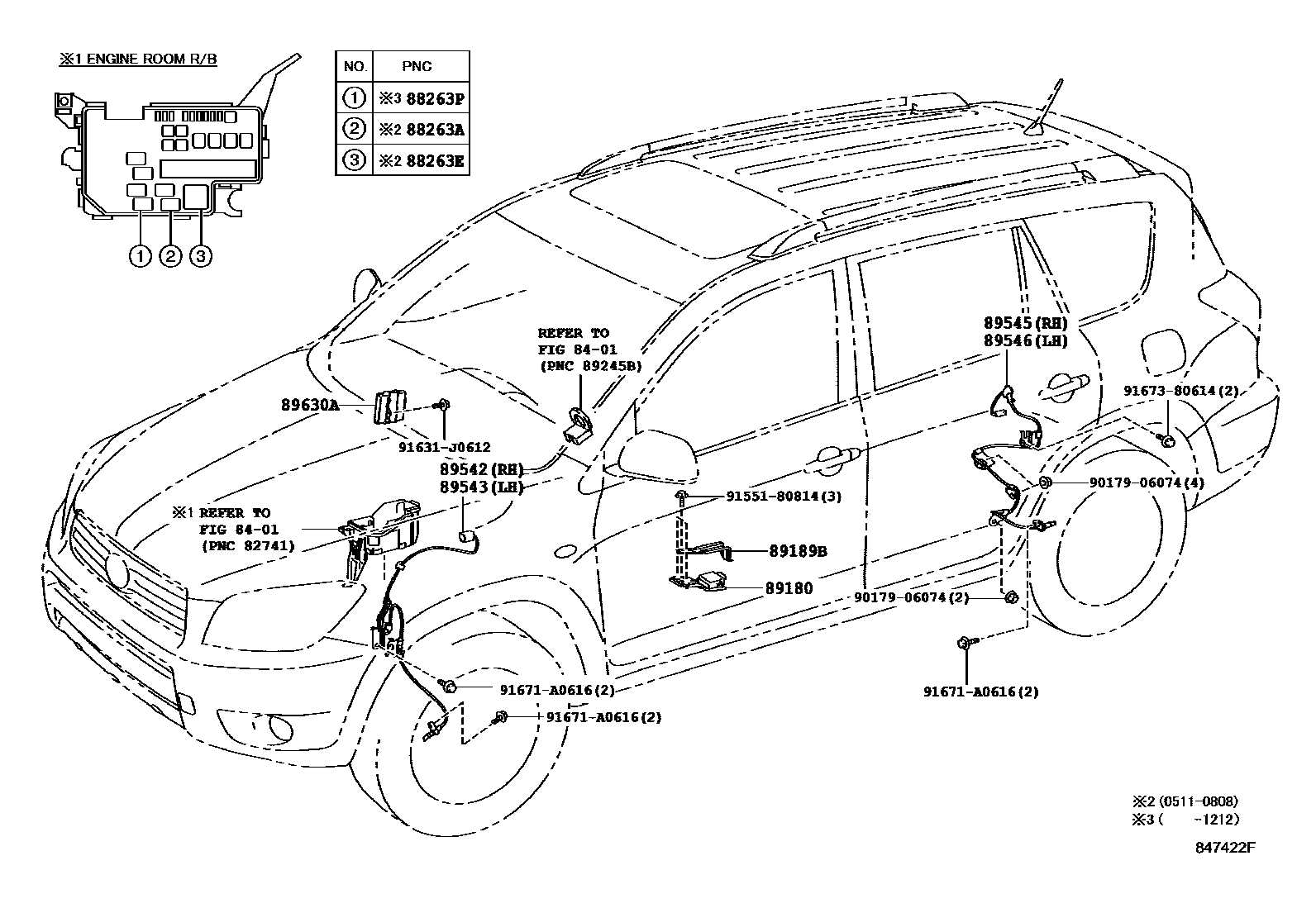

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

88263ARELAY, SKID CONTROL

main88263-32070iACA3#,GSA3#..JPP200511-200808

88263ERELAY, SKID CONTROL NO.2

main88263-21010iACA3#,GSA3#..JPP200511-200808

88263PRELAY, STOP LAMP CONTROL

main90987-04004iACA3#,GSA3#..JPP200511-200808

89180SENSOR ASSY, YAWRATE

main89180-42020iACA3#,GSA3#..JPP200511-200808

main89180-42030iASA3#,GSA3#..JPP200808-201008

main89180-42040iASA3#,GSA3#..JPP201008-201212

89189BBRACKET, YAWRATE SENSOR

main89189-42010iACA3#,GSA3#..JPP200511-200808

89542SENSOR, SPEED, FRONT RH

main89542-42050iACA3#,GSA3#..JPP200511-200808

89543SENSOR, SPEED, FRONT LH

main89543-42050iACA3#,GSA3#..JPP200511-200808

89545SENSOR, SPEED, REAR RH

main89545-42040iACA33,GSA33..JPP200511-200808

89546SENSOR, SPEED, REAR LH

main89546-42040iACA33,GSA33..JPP200511-200808

89630ACOMPUTER ASSY, 4WD

main89630-42010iACA33,GSA33..JPP200511-200702

main89630-42020iACA33,GSA33..JPP200703-200808

main89630-42040iASA33,GSA33..JPP200808-201212

9017906074

main90179-06074

9155180814

main91551-80814

91631J0612

main91631-J0612

91671A0616

main91671-A0616

9167380614

main91673-80614

16 parts on this diagram · 2 diagrams in section
