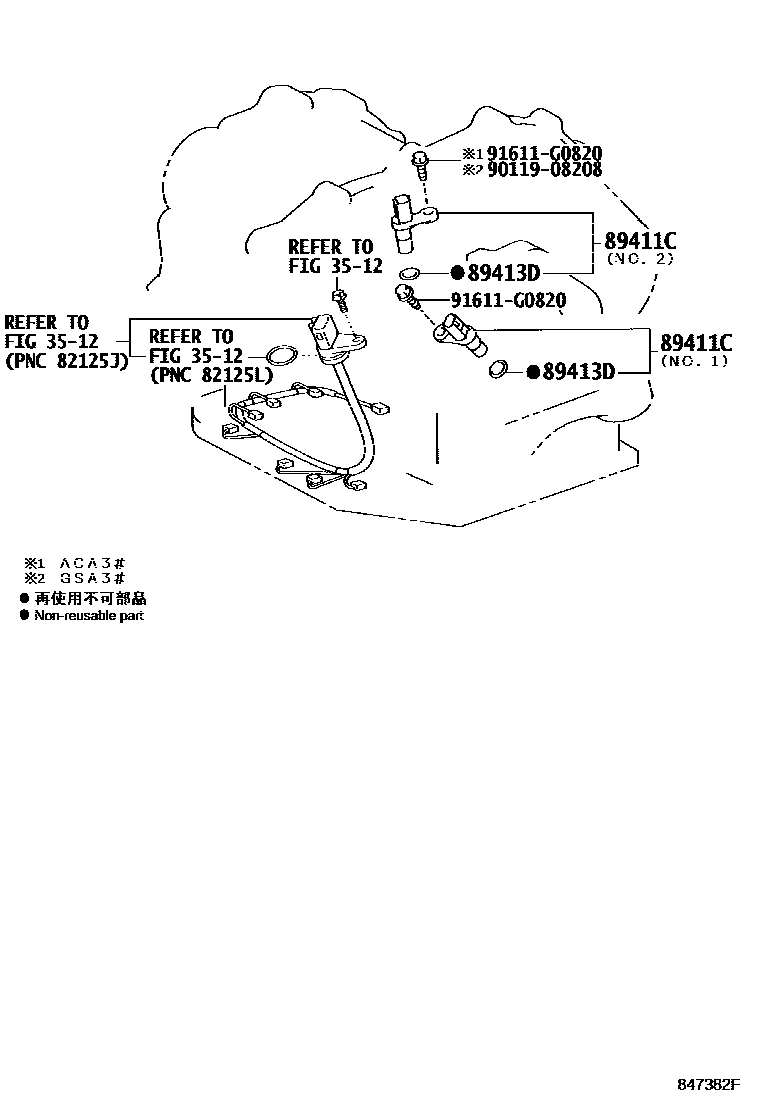

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

89411CSENSOR, SPEED

main89413-24010iACA3#..JPP200511-201212

NO.1,NO.2

main89413-24010iGSA3#..JPP200601-201212

NO.1

main89413-48010iGSA3#..JPP200601-201212

NO.2

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iACA3#,GSA3#..JPP200511-201212

9011908208

main90119-08208

91611G0820

main91611-G0820

5 parts on this diagram · 1 diagram in section
