ELECTRONIC FUEL INJECTION SYSTEM

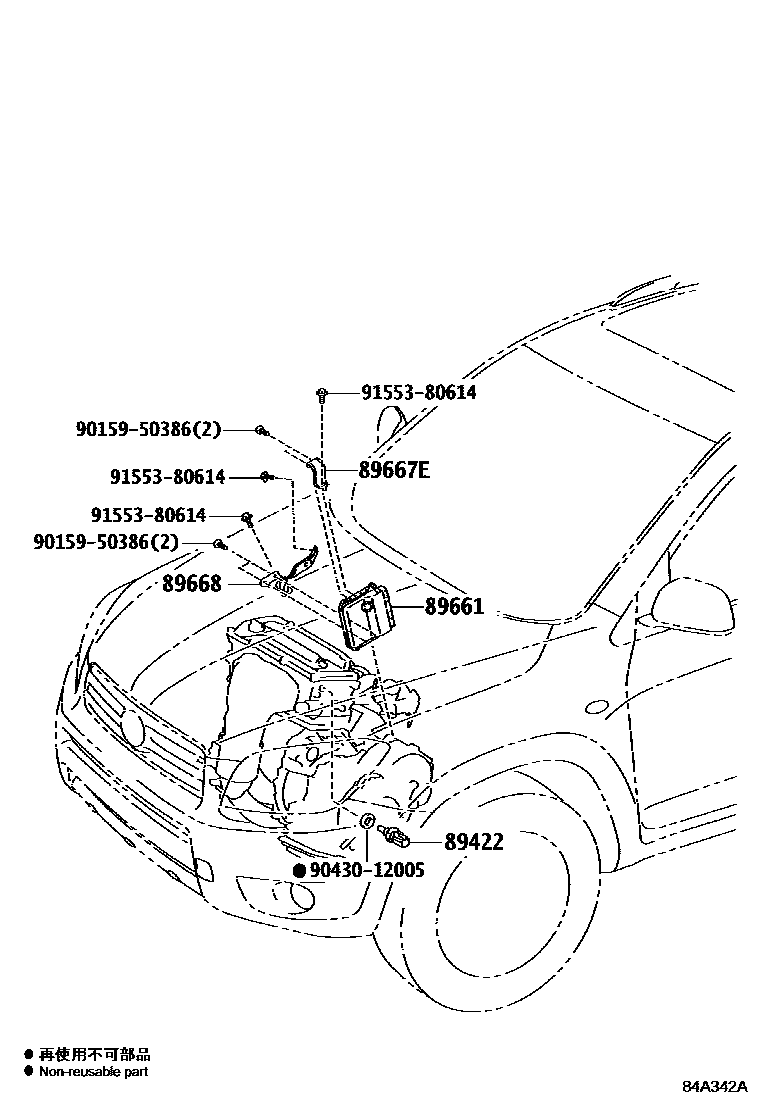

Parts diagram

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030i200511-201212

89661COMPUTER, ENGINE CONTROL

main89661-42C20i200511-200602

main89661-42C21i200603-200608

main89661-42C30i200511-200602

main89661-42C31i200603-200608

main89661-42D80i200601-200605

main89661-42D81i200606-200608

main89661-42D90i200601-200605

main89661-42D91i200606-200608

main89661-42E50i200608-200609

main89661-42E51i200609-200708

main89661-42E60i200608-200609

main89661-42E61i200609-200708

main89661-42E90i200608-200708

main89661-42F00i200608-200708

main89661-42F60i200708-200711

main89661-42F61i200712-200808

main89661-42F70i200708-200711

main89661-42F71i200712-200808

main89661-42F90i200708-200808

main89661-42G00i200708-200808

main89661-42G10i200808-200909

main89661-42G11i200910-201008

main89661-42G20i200808-200909

main89661-42G21i200910-201008

main89661-42J80i200808-200902

main89661-42J81i200903-201008

main89661-42J90i200808-200902

main89661-42J91i200903-201008

main89661-42Q00i201008-201109

main89661-42Q01i201110-201112

main89661-42Q10i201008-201109

main89661-42Q11i201110-201112

main89661-42Q20i201008-201009

main89661-42Q21i201010-201011

main89661-42Q22i201012-201109

main89661-42Q23i201110-201112

main89661-42Q30i201008-201009

main89661-42Q31i201010-201011

main89661-42Q32i201012-201109

main89661-42Q33i201110-201112

main89661-42T40i201112-201212

main89661-42T50i201112-201212

main89661-42T60i201112-201212

main89661-42T70i201112-201212

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-42050i200511-201212

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-42050i200511-201212

9015950386

main90159-50386

9043012005

main90430-12005

9155380614

main91553-80614

7 parts on this diagram · 3 diagrams in section
