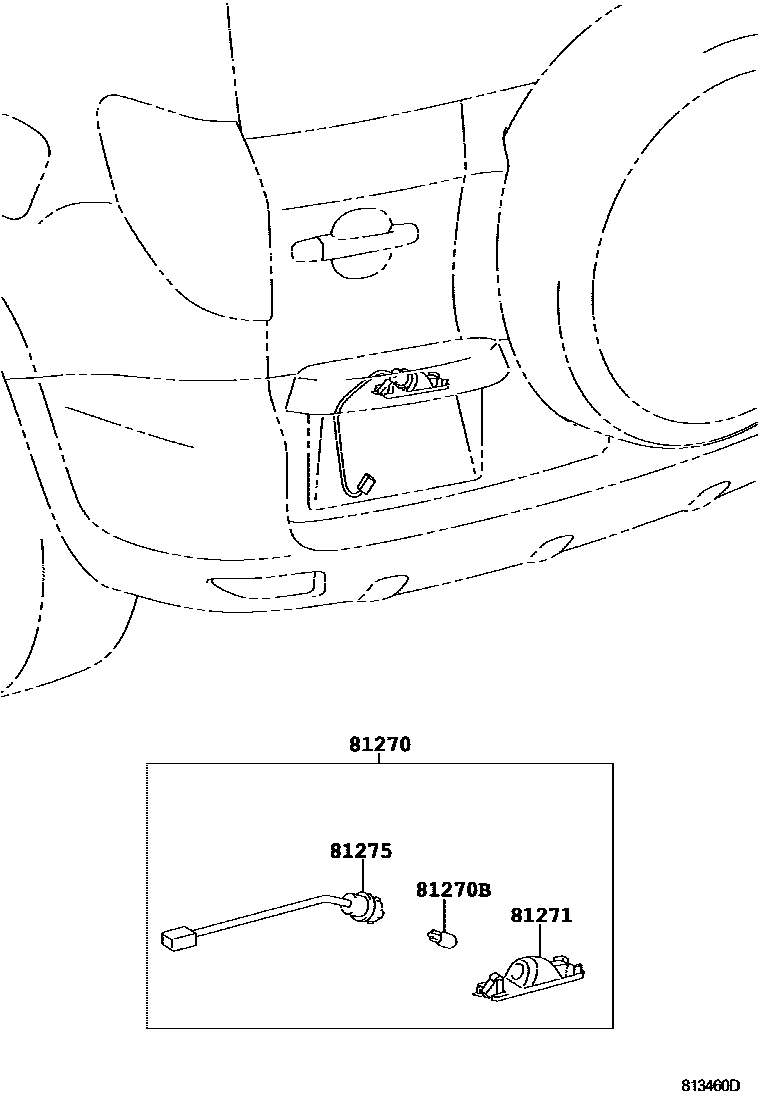

REAR LICENSE PLATE LAMP

0001 1W(BACK DOOR SPARE TIRE) 0002 1W/0(BACK DOOR SPARE TIRE)

81270LAMP ASSY, LICENSE PLATE

main81270-42070iACA3#,GSA3#..JPP200511-200807

main81270-42100iASA3#,GSA3#..JPP200808-201212

main81270-42060iGSA33..JPP..SPO200808-201212

SPARE TIRE-WITHOUT

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iASA3#,GSA3#..JPP; GSA33..JPP..SPO200808-201212

12V 5W; 12V 5W,SPARE TIRE-WITHOUT

81271LENS, LICENSE PLATE LAMP

main81271-42070iACA3#,GSA3#..JPP200511-200808

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-42070iACA3#,GSA3#..JPP200511-200808

main81275-42100iASA3#,GSA3#..JPP200808-201212

main81275-42060iASA3#..JPP..SPO..USA201002-201212

SPARE TIRE-WITHOUT

4 parts on this diagram · 2 diagrams in section
