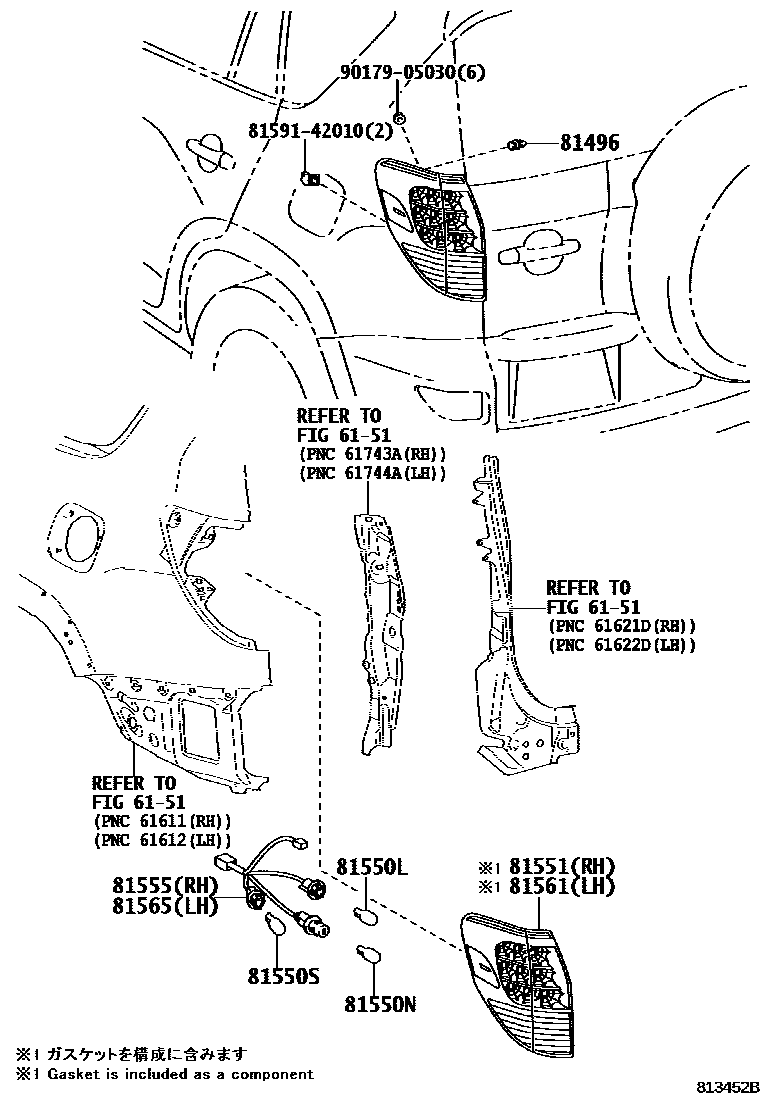

REAR COMBINATION LAMP

0001 1 0002 1

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-42010×2iACA3#,GSA3#..JPP200511-200808

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2iACA3#,GSA3#..JPP200511-200808

81550NBULB, BACK UP LAMP

main90981-11059×2iACA3#,GSA3#..JPP200511-200808

81550SBULB, REAR SIDE MARKER LAMP

main99132-12050×2iACA3#,GSA3#..JPP200511-200808

81551LENS, REAR COMBINATION LAMP, RH

main81551-42100iACA3#,GSA3#..JPP200511-200808

main81551-42130iASA3#,GSA3#..JPP200808-201212

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-42100iACA3#,GSA3#..JPP200511-200808

main81555-42130iASA3#,GSA3#..JPP200808-201212

81561LENS, REAR COMBINATION LAMP, LH

main81561-42100iACA3#,GSA3#..JPP200511-200808

main81561-42130iASA3#,GSA3#..JPP200808-201212

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-42100iACA3#,GSA3#..JPP200511-200808

main81555-42130iASA3#,GSA3#..JPP200808-201212

8159142010LENS AND BODY, REFLEX SIDE REFLECTOR, LH

main81591-42010

9017905030

main90179-05030

11 parts on this diagram · 2 diagrams in section
