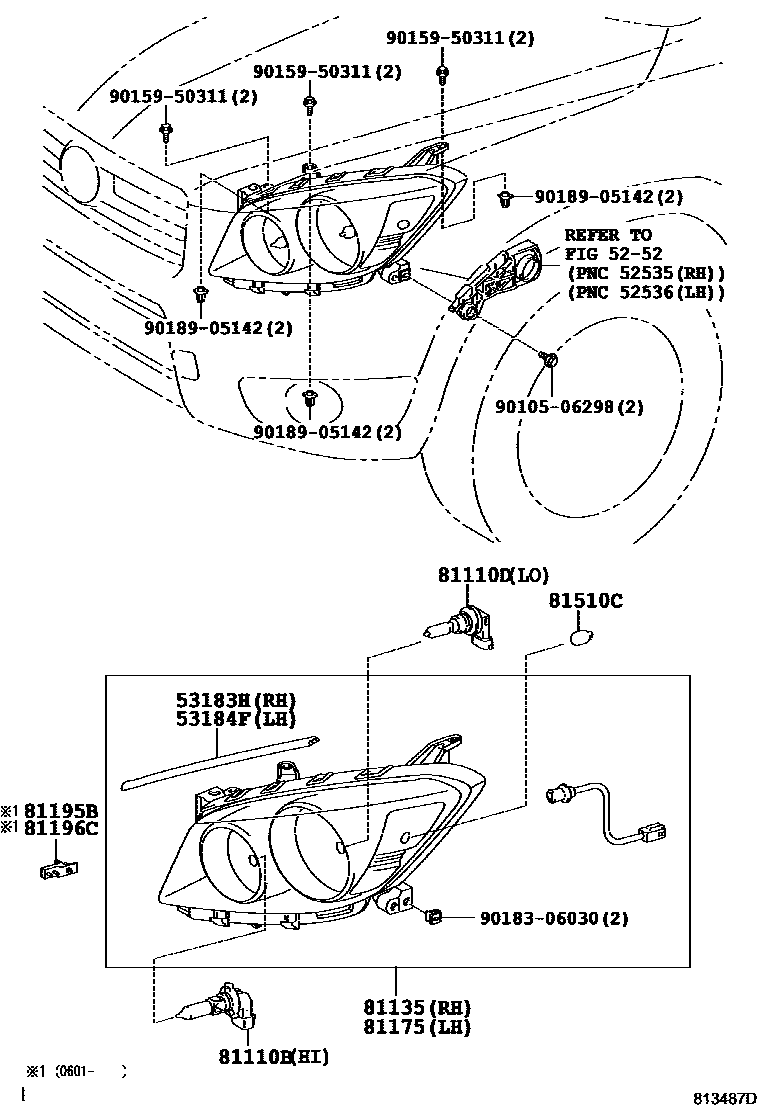

HEADLAMP

0001 1 0002 1

5252FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-52

53183HSEAL, HEADLAMP COVER, RH

main53183-42030iACA3#,GSA3#..JPP200511-200808

53184FSEAL, HEADLAMP COVER, LH

main53184-42030iACA3#,GSA3#..JPP200511-200808

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iACA3#,GSA3#..JPP200511-200808

12V 65W

main90981-13046×2iASA3#,GSA3#..JPP200808-201212

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13047×2iACA3#,GSA3#..JPP200511-200808

12V 51W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-42330iACA3#,GSA3#..JPP..(LIMD,X)200511-200607

main81130-42331iACA3#,GSA3#..JPP..(LIMD,X)200608-200808

main81130-42370iACA3#,GSA3#..JPP..SPO200511-200607

main81130-42371iACA3#,GSA3#..JPP..SPO200608-200808

main81130-42470iASA3#,GSA3#..JPP..(LIMD,X)200808-201212

main81130-42480iASA3#,GSA3#..JPP..SPO200808-201212

81175UNIT ASSY, HEADLAMP, LH

main81170-42330iACA3#,GSA3#..JPP..(LIMD,X)200511-200607

main81170-42331iACA3#,GSA3#..JPP..(LIMD,X)200608-200808

main81170-42370iACA3#,GSA3#..JPP..SPO200511-200607

main81170-42371iACA3#,GSA3#..JPP..SPO200608-200808

main81170-42470iASA3#,GSA3#..JPP..(LIMD,X)200808-201212

main81170-42480iASA3#,GSA3#..JPP..SPO200808-201212

81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH

main81195-42020iACA3#,GSA3#..JPP200601-200808

81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH

main81196-42020iACA3#,GSA3#..JPP200601-200808

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-11048×2iACA3#,GSA3#..JPP200511-200808

12V 21/5W

main90981-13044×2iASA3#,GSA3#..JPP200808-201212

12V 21/5W

9010506298

main90105-06298

9015950311

main90159-50311

9018306030

main90183-06030

9018905142

main90189-05142

14 parts on this diagram · 2 diagrams in section
