EPC Data

SEAT & SEAT TRACK

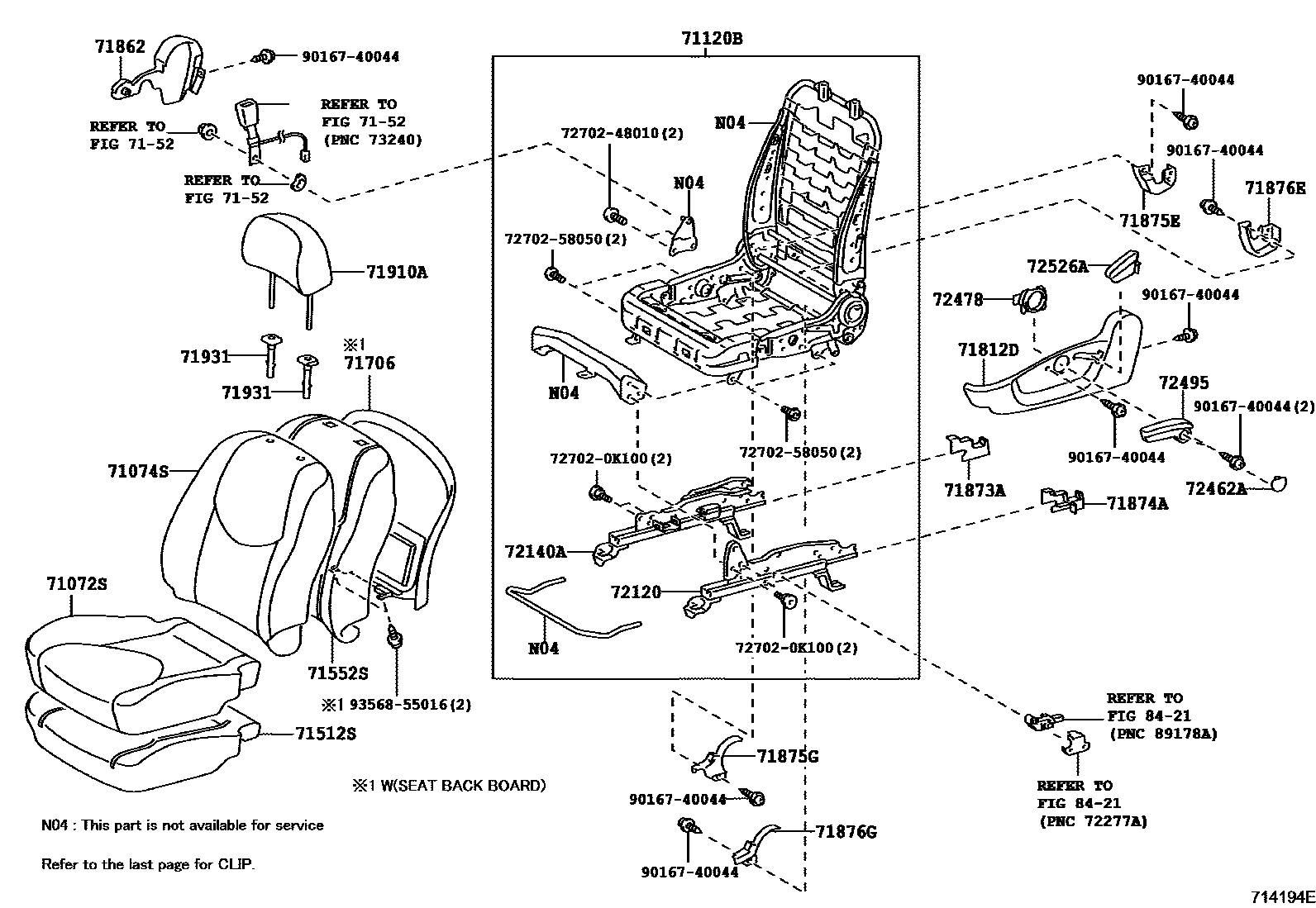

Parts diagram
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-42190-B1i200511-200808
GRAY,TRIM1#
sub71072-42191
main71072-42190-E0i200511-200808
FAWN,TRIM4#
sub71072-42191
main71072-42240-B1i200808-201002
GRAY,TRIM10
sub71072-42243
sub71072-42640
main71072-42240-B3i200511-200808
DK.GRAY,TRIM1#
sub71072-42243
sub71072-42640
main71072-42240-E1i200808-201002
SAND BEIGE,TRIM4#
sub71072-42243
sub71072-42640
main71072-42380-B0supersedes 71072-42381-B0i200808-201009
GRAY,TRIM1#
main71072-42380-E0supersedes 71072-42381-E0i201008-201009
SAND BEIGE,TRIM4#
main71072-42381-B0i201010-201212
GRAY,TRIM1#
main71072-42381-E0i201010-201212
SAND BEIGE,TRIM4#
main71072-42230-E1i200908-201002
MEXICO SPEC&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
sub71072-42630
main71072-42233-B2i201002-201008
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#
sub71072-42234
main71072-42233-E3i201002-201008
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#
sub71072-42234
main71072-42300-B2i200511-200608
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#
main71072-42300-E1supersedes 71072-42230-E0i200511-200803
SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#
main71072-42301-B2supersedes 71072-42243-B7i200808-201202
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main71072-42301-B3i200808-201008
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),DK.GRAY,TRIM1#
main71072-42301-B4supersedes 71072-42243-B7i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main71072-42301-B5supersedes 71072-42243-B6i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71072-42301-E1supersedes 71072-42230-E0i200804-200808
SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#
main71072-42301-E2i200808-200908
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
main71072-42301-E3supersedes 71072-42243-E3i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-42370-B0i200511-200608
DK.GRAY,TRIM1#
sub71073-42374
sub71073-42A80
main71073-42530-B1i200808-201002
GRAY,TRIM1#
main71073-42530-E0i200808-201002
SAND BEIGE,TRIM4#
main71074-42070-B1supersedes 71073-42100-B1i200608-200808
GRAY,TRIM1#
sub71074-42071
main71074-42070-E0supersedes 71073-42100-E0i200608-200808
FAWN,TRIM4#
sub71074-42071
main71074-42090-B0i200608-200808
DK.GRAY,TRIM1#
sub71074-42095
sub71074-42550
main71074-42190-B1i200808-201002
GRAY,TRIM1#
sub71074-42193
main71074-42190-E0i200808-201002
SAND BEIGE,TRIM4#
sub71074-42193
main71074-42192-B1i201002-201009
GRAY,TRIM1#
sub71074-42193
main71074-42192-E0i201008-201009
SAND BEIGE,TRIM4#
sub71074-42193
main71074-42360-B1i201002-201006
GRAY,TRIM1#
main71074-42360-E0i201002-201006
SAND BEIGE,TRIM4#
main71074-42361i201007-201008
SRS AIR BAG-WITH(DRIVER & PASSENGER)
main71073-42450-B0supersedes 71073-42370-B1i200511-200608
SEAT COVER MATERIAL-NATURAL LEATHER,GRAY,TRIM1#
sub71073-42451
main71073-42450-E1supersedes 71073-42370-E0i200511-200608
SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#
sub71073-42451
main71073-42640-B0supersedes 71074-42224-B5i200808-200908
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71073-42640-B1supersedes 71074-42224-B4i200908-201002
MEXICO SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#
main71073-42640-E0supersedes 71074-42224-E2i200808-200908
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
main71073-42641-B0i201002-201008
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main71073-42641-B1supersedes 71073-42584-B4i201002-201008
MEXICO SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#
main71073-42641-E0supersedes 71073-42584-E2i201002-201008
MEXICO SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
main71074-42130-B1supersedes 71073-42370-B1i200511-200608
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#
sub71074-42132
main71074-42130-E1supersedes 71073-42370-E0i200511-200608
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#
sub71074-42132
main71074-42260-B0supersedes 71074-42224-B5i200808-201002
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#
main71074-42260-B1supersedes 71073-42580-B0i200808-201002
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),DK.GRAY,TRIM1#
main71074-42260-E0supersedes 71073-42580-E0i200808-201002
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#
main71074-42261-B0supersedes 71073-42584-B5i201002-201008
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#
main71074-42261-B1supersedes 71073-42584-B4i201002-201008
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),DK.GRAY,TRIM1#
main71074-42261-E0supersedes 71074-42224-E2i201008-201009
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
main71074-42262-B0supersedes 71074-42225-B7i201010-201202
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main71074-42262-B1supersedes 71074-42225-B6i201010-201202
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71074-42262-B2supersedes 71074-42225-B7i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main71074-42262-B3supersedes 71074-42225-B6i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71074-42262-E0supersedes 71074-42225-E3i201010-201202
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
main71074-42262-E1supersedes 71074-42225-E3i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
71120BFRAME ASSY, FRONT SEAT W/ADJUSTER, LH
main71120-42070i200511-200608
main71120-42100i200511-200608
main71120-42170i200511-200608
main71120-42310supersedes 71120-42300i201008-201212
sub71120-42460
main71120-42330supersedes 71120-42320i201008-201212
US BASE PLUSE PACKAGE
sub71120-42470
main71120-42340i200808-200908
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER & PASSENGER)
main71120-42350i200808-201212
SEAT COVER MATERIAL-NATURAL LEATHER
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-42030i200511-200808
main71512-42040i200808-201212
main71052-42070supersedes 71512-42050i200908-201008
MEXICO SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER)
7152
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-42060i200511-200608
main71551-42080i200511-200608
main71551-42120i200511-200608
main71552-42060supersedes 71551-42140i200808-201212
main71552-42070supersedes 71551-42160i201008-201212
US BASE PLUSE PACKAGE
main71551-42180i200908-201008
MEXICO SPEC&SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER)
main71552-42080i201008-201212
SEAT COVER MATERIAL-NATURAL LEATHER
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71771-42010-B8supersedes 71771-42010-P4i200808-201008
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),DK.GRAY,TRIM1#
main71771-42010-E3supersedes 71771-42010-E8i200808-201008
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#
main71771-42010-E5supersedes 71771-42010-E6i200608-200808
SEAT COVER MATERIAL-NATURAL LEATHER,FAWN,TRIM4#
main71771-42010-P0supersedes 71771-42010-B9i200808-201008
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-42100-B0i200511-200808
DK.GRAY,TRIM1#
main71812-42100-B1i200511-200808
GRAY,TRIM1#
main71812-42100-E0i200511-200808
FAWN,TRIM4#
main71812-42100-E2i200808-201212
SAND BEIGE,TRIM4#
main71812-42110-B1i200511-200808
GRAY,TRIM1#
main71812-42110-E0i200511-200808
FAWN,TRIM4#
main71812-42110-B0supersedes 71812-42100-B0i200808-201212
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71812-42110-E1i200808-201008
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-42060-B0i200511-200808
DK.GRAY,TRIM1#
main71862-42060-B1i200511-200808
GRAY,TRIM1#
main71862-42060-E0i200511-200808
FAWN,TRIM4#
main71862-42060-E2i200808-201212
SAND BEIGE,TRIM4#
main71862-60100-B5i200511-200808
GRAY,TRIM1#
main71862-60100-E0i200511-200808
FAWN,TRIM4#
main71862-60100-B0supersedes 71862-42060-B0i200808-201008
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),DK.GRAY,TRIM1#
main71862-60100-E3i200808-200908
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-42030i200511-200808
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-30070i200511-200808
main71873-42030i200808-201212
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-42020i200511-200808
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-30020i200511-200808
main71874-42020i200808-201212
71875ECOVER, RECLINING ADJUSTER INSIDE, RH
main71875-58060i200808-201212
main71875-60140i200511-200808
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71875-42050-B0i200511-200808
DK.GRAY,TRIM1#
main71875-42050-B1i200808-201212
GRAY,TRIM1#
main71875-42050-E0i200511-200808
FAWN,TRIM4#
main71875-42050-E2i200808-201212
SAND BEIGE,TRIM4#
main71876-60150-B5i200511-200808
GRAY,TRIM1#
main71876-60150-E0i200511-200808
FAWN,TRIM4#
main71876-60150-B0supersedes 71875-42050-B0i200808-201008
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),DK.GRAY,TRIM1#
main71876-60150-E3i200808-200908
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
71876ECOVER, RECLINING ADJUSTER INSIDE, LH
main71876-58060i200511-200808
main71876-60140i200511-200808
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-42050-B0i200511-200808
DK.GRAY,TRIM1#
main71876-42050-B1i200511-200808
GRAY,TRIM1#
main71876-42050-E0i200511-200808
FAWN,TRIM4#
main71876-42050-E2i200808-201212
SAND BEIGE,TRIM4#
main71876-60170-B6i200511-200808
GRAY,TRIM1#
main71876-60170-E0i200511-200808
FAWN,TRIM4#
main71876-60170-B0supersedes 71876-42050-B0i200808-201212
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71876-60170-E3i200808-200908
FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER & PASSENGER),SAND BEIGE,TRIM4#
71910AHEADREST ASSY, FRONT SEAT
main71910-42110-B1×2i200511-200808
GRAY,TRIM1#
sub71910-42190
main71910-42110-E0×2i200511-200808
FAWN,TRIM4#
sub71910-42190
main71910-42120-B0×2i200511-200808
DK.GRAY,TRIM1#
sub71910-42121
sub71910-42280
main71910-42170-B0×2i200808-200908
DK.GRAY,TRIM1#
sub71910-42172
main71910-42170-B1×2i200808-200908
GRAY,TRIM1#
sub71910-42172
main71910-42170-E0×2i200808-200908
SAND BEIGE,TRIM4#
sub71910-42172
main71910-42130-B1×2supersedes 71910-42120-B1i200511-200608
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,GRAY,TRIM1#
sub71910-42131
main71910-42130-E1×2supersedes 71910-42120-E0i200511-200608
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-DRIVER & PASSENGER & CURTAIN & SIDE,FAWN,TRIM4#
sub71910-42131
main71910-42180-B0×2i200808-200908
SEAT COVER MATERIAL-NATURAL LEATHER&SRS AIR BAG-WITH(DRIVER & PASSENGER),DK.GRAY,TRIM1#
main71910-42180-B1×2i200808-200908
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#
main71910-42180-E0×2i200808-200908
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),SAND BEIGE,TRIM4#
main71910-42181-B0×2supersedes 71910-42172-B3i200908-201202
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71910-42181-B1×2i200908-201008
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY)&SRS AIR BAG-WITH(DRIVER&PASSENGER&CURTAIN&SIDE),GRAY,TRIM1#
main71910-42181-B2×2supersedes 71910-42172-B3i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER,DK.GRAY,TRIM1#
main71910-42181-B4×2supersedes 71910-42172-B4i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),GRAY,TRIM1#
main71910-42181-E0×2supersedes 71910-42172-E2i200908-201202
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
main71910-42181-E2×2supersedes 71910-42172-E2i201202-201212
SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT SLIDE-240MM & WITH(POWER SLIDE:DRIVER ONLY),SAND BEIGE,TRIM4#
71931SUPPORT, FRONT SEAT HEADREST
main71930-42020-B4×2i200511-200711
W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#
sub71930-44020
main71930-42020-B7×2i200511-200711
W(LOCK)&W(BUTTON),GRAY,TRIM1#
sub71930-44020
main71930-42020-E0×2i200511-200711
W(LOCK)&W(BUTTON),FAWN,TRIM4#
sub71930-44020
main71930-52030-B0×2i200808-201212
W(LOCK)&W(BUTTON),DK.GRAY,TRIM1#
main71930-52030-B1×2i200808-201212
W(LOCK)&W(BUTTON),GRAY,TRIM1#
main71930-52030-E3×2i200712-200808
W(LOCK)&W(BUTTON),FAWN,TRIM4#
main71930-52030-E4×2i200808-201212
W(LOCK)&W(BUTTON),SAND BEIGE,TRIM4#
main71931-42020-B4×2i200511-200808
W(LOCK)&W/O(BUTTON),DK.GRAY,TRIM1#
main71931-42020-B7×2i200511-200808
W(LOCK)&W/O(BUTTON),GRAY,TRIM1#
main71931-42020-E0×2i200511-200808
W(LOCK)&W/O(BUTTON),FAWN,TRIM4#
main71931-42020-E3×2i200808-201212
W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4#
72120TRACK ASSY, FRONT SEAT, OUTER LH
main72120-42040i200511-200608
72140ATRACK ASSY, FRONT SEAT,INNER LH
main72140-42040i200511-200608
72462ACOVER, VERTICAL ADJUSTER LH
main72462-42010-B0i200808-201212
DK.GRAY,TRIM1#
main72462-42010-B1i200511-200808
GRAY,TRIM1#
main72462-42010-E0i200511-200808
FAWN,TRIM4#
main72462-42010-E2i200808-201212
SAND BEIGE,TRIM4#
72478BUSH, VERTICAL ADJUSTER
main72478-60010i200808-201212
72495HANDLE, VERTICAL ADJUSTING, LH
main72495-42010-B0i200511-200808
DK.GRAY,TRIM1#
main72495-42010-B1i200511-200808
GRAY,TRIM1#
main72495-42010-E0i200511-200808
FAWN,TRIM4#
main72495-42010-E2i200808-201212
SAND BEIGE,TRIM4#
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-42020-B0i200511-200808
DK.GRAY,TRIM1#
main72526-42020-B1i200511-200808
GRAY,TRIM1#
main72526-42020-E0i200511-200808
FAWN,TRIM4#
main72526-42020-E2i200808-201212
SAND BEIGE,TRIM4#
8421
727020K100BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-0K100
7270248010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-48010
7270258050BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-58050
9016740044
main90167-40044
9356855016
main93568-55016

31 parts on this diagram · 18 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
