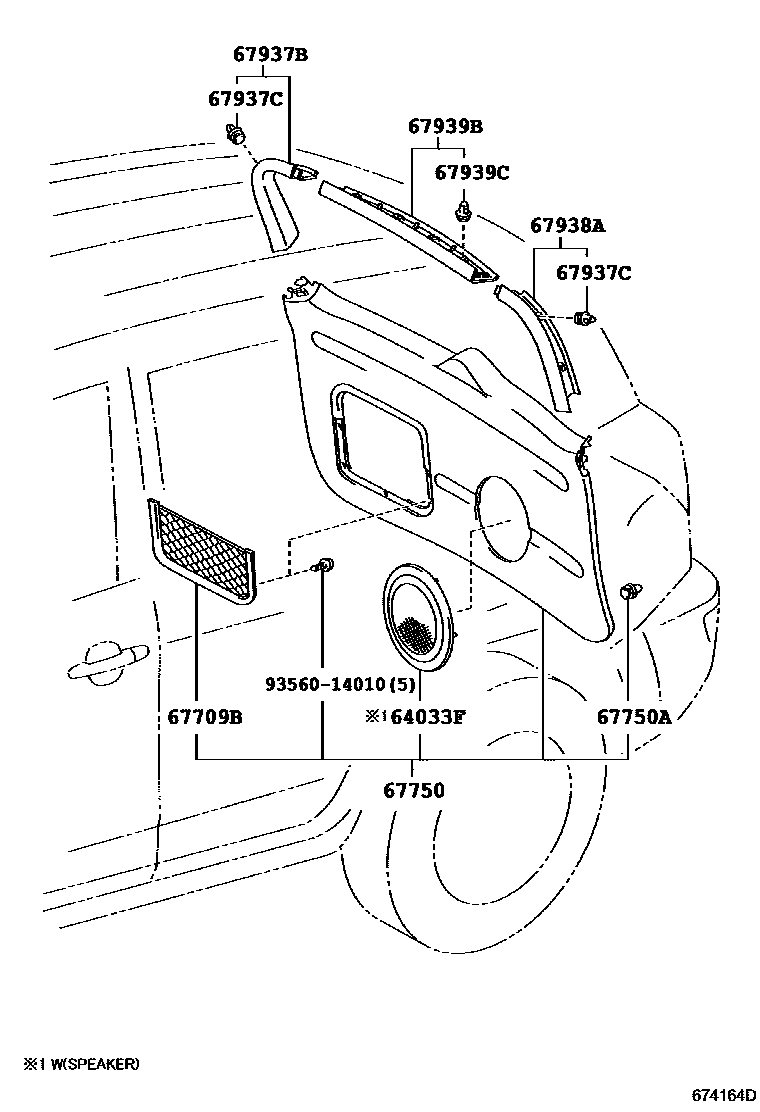

BACK DOOR PANEL & GLASS

0001 1 0002 1W(SPARE TIRE CARRIER) 0003 1W/O(SPARE TIRE CARRIER) 0004 1W(SPARE TIRE CARRIER) 0005 1W/O(SPARE TIRE CARRIER) 0006 1W/O(SPARE TIRE CARRIER)

64033FGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-42010-B0iACA3#,GSA3#..JPP..LIMD200511-200808

AUDIO-JBL AM/FM,CD6CH,7SPEAKER,DK.GRAY,TRIM1#

main64033-42010-B1iASA3#,GSA3#..JPP..SPO200908-201008

AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE,DK.GRAY,TRIM1#

67709BPOCKET SUB-ASSY, BACK DOOR TRIM

main67709-42020-B0iACA3#,GSA3#..JPP..(LIMD,X)200511-200808

DK.GRAY,TRIM1#

main67709-42020-B1iASA3#,GSA3#..JPP..SPO200808-201212

DK.GRAY,TRIM1#

67750BOARD ASSY, BACK DOOR TRIM

main67750-42020-B0iASA3#,GSA3#..JPP..SPO200808-201212

DK.GRAY,TRIM1#

main67750-42030-B0supersedes 67750-42020-B0iACA3#,GSA3#..JPP..LIMD200511-200808

AUDIO-JBL AM/FM,CD6CH,7SPEAKER,DK.GRAY,TRIM1#

main67750-42030-B1iASA3#,GSA3#..JPP..LIMD200808-201112

AUDIO-JBL,6CD CHANGER,SDARS,BLUETOOTH,UNIQUE,DK.GRAY,TRIM1#,4#

67750ACLIP(FOR BACK DOOR TRIM)

main90467-09206×13iACA3#,GSA3#..JPP200511-200808

67937BGARNISH, BACK DOOR SIDE, RH

main67937-42030-A0iACA3#,GSA3#..JPP..(LIMD,X)200511-200808

IVORY,TRIM4#

main67937-42030-B0iACA3#,GSA3#..JPP200511-200808

GRAY,TRIM1#

main67937-42030-E0iASA3#,GSA3#..JPP..(LIMD,X)200808-201212

SAND BEIGE,TRIM4#

67937CCLIP(FOR BACK DOOR SIDE GARNISH)

main90467-10161×4iASA3#,GSA3#..JPP200808-201212

67938AGARNISH, BACK DOOR SIDE, LH

main67938-42030-A0iACA3#,GSA3#..JPP..(LIMD,X)200511-200808

IVORY,TRIM4#

main67938-42030-B0iASA3#,GSA3#..JPP200808-201212

GRAY,TRIM1#

main67938-42030-E0iASA3#,GSA3#..JPP..(LIMD,X)200808-201212

SAND BEIGE,TRIM4#

67939BGARNISH, BACK DOOR, CENTER

main67939-42020-A0iACA3#,GSA3#..JPP..(LIMD,X)200511-200808

IVORY,TRIM4#

main67939-42020-B0iACA3#,GSA3#..JPP200511-200808

GRAY,TRIM1#

main67939-42020-E0iASA3#,GSA3#..JPP..(LIMD,X)200808-201212

SAND BEIGE,TRIM4#

67939CCLIP(FOR BACK DOOR CENTER GARNISH)

main90467-10161×4iASA3#,GSA3#..JPP200808-201212

9356014010

main93560-14010

10 parts on this diagram · 6 diagrams in section
