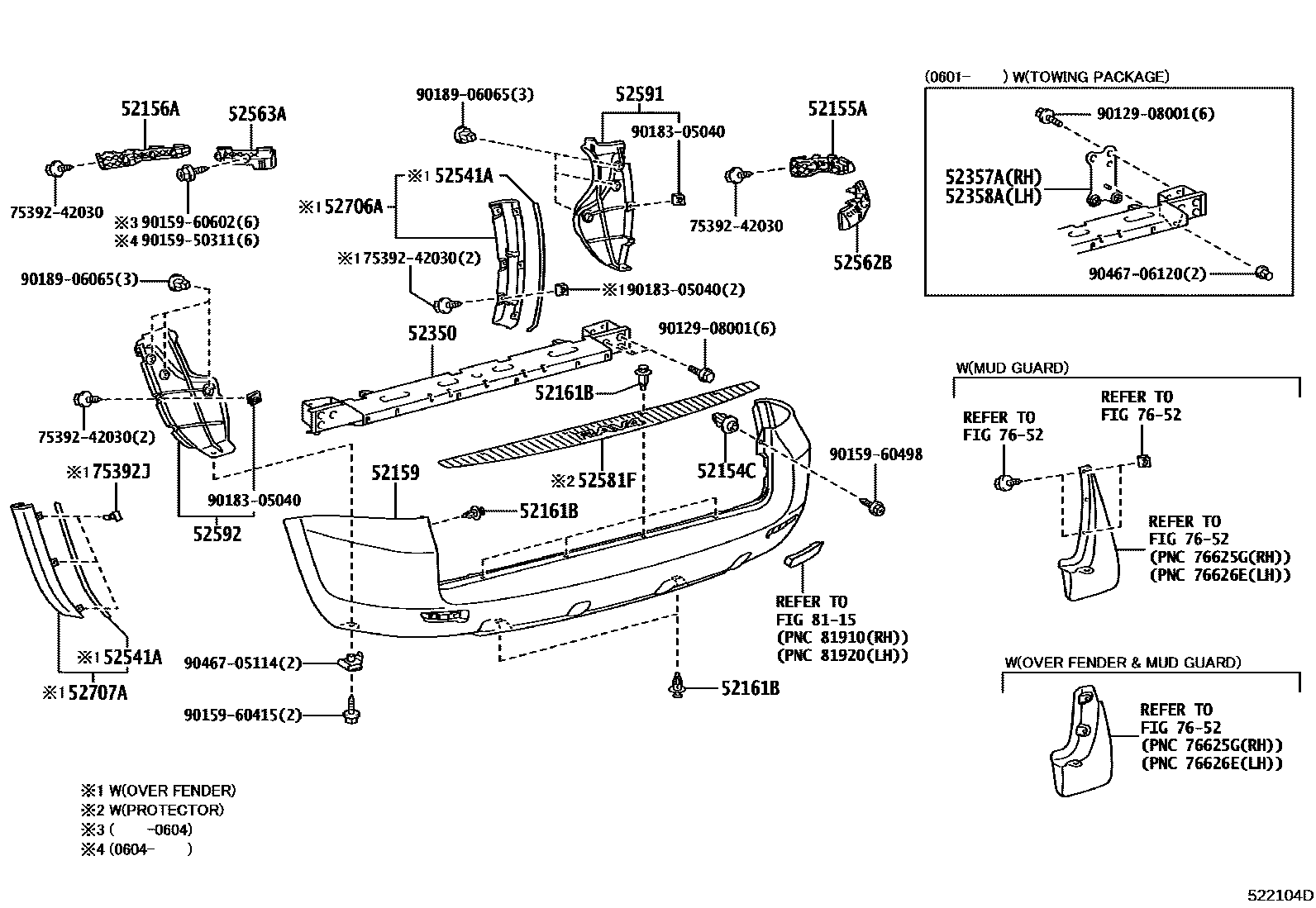

REAR BUMPER & BUMPER STAY
52154CSUPPORT, REAR BUMPER, NO.1
52159COVER, REAR BUMPER
OVER FENDER-WITH
52161BPIECE, REAR BUMPER
sub52161-0K040
52350STEP ASSY, REAR BUMPER
52357APLATE, BACK STEP, RH
WITH(TOWING PACKAGE)
52358APLATE, BACK STEP, LH
WITH(TOWING PACKAGE)
52541APROTECTOR, REAR BUMPER
OVER FENDER-WITH
52581FPROTECTOR, REAR BUMPER
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52706AMOULDING SUB-ASSY, REAR BUMPER SIDE, RH
main52706-42010-B5iASA33,GSA33..JPP..SPO;ASA33,GSA33..JPP..LIMD..USA;ASA38,GSA38..JPP..(LIMD,SPO)201002-201212
DK. STEEL MC.,1H2
sub52752-42900
main52706-42010-G2iASA33,GSA33..JPP..SPO;ASA33,GSA33..JPP..LIMD..USA;ASA38,GSA38..JPP..(LIMD,SPO)200808-201008
DK.GREEN MC.,6T3
sub52752-42900
OVER FENDER-WITH,GRAYISH BLUE ME.,8R3
sub52752-42900
OVER FENDER-WITH,LT.GREEN ME.,6T6
sub52752-42900
OVER FENDER-WITH,DK.BLUE MC.,8S6
sub52752-42900
52707AMOULDING SUB-ASSY, REAR BUMPER SIDE, LH
main52707-42010-B5iASA33,GSA33..JPP..SPO;ASA33,GSA33..JPP..LIMD..USA;ASA38,GSA38..JPP..(LIMD,SPO)201002-201212
DK. STEEL MC.,1H2
sub52753-42900
main52707-42010-G2iASA33,GSA33..JPP..SPO;ASA33,GSA33..JPP..LIMD..USA;ASA38,GSA38..JPP..(LIMD,SPO)200808-201008
DK.GREEN MC.,6T3
sub52753-42900
OVER FENDER-WITH,LT.GREEN ME.,6T6
sub52753-42900
OVER FENDER-WITH,DK.BLUE MC.,8S6
sub52753-42900
75392JRETAINER, OUTSIDE MOULDING
OVER FENDER-WITH
7652
8115
7539242030RETAINER, OUTSIDE MOULDING
main75392-42030
9012908001
main90129-08001
9015950311
main90159-50311
9015960415
main90159-60415
9015960498
main90159-60498
9015960602
main90159-60602
9018305040
main90183-05040
9018906065
main90189-06065
9046705114
main90467-05114
9046706120
main90467-06120
29 parts on this diagram · 1 diagram in section
