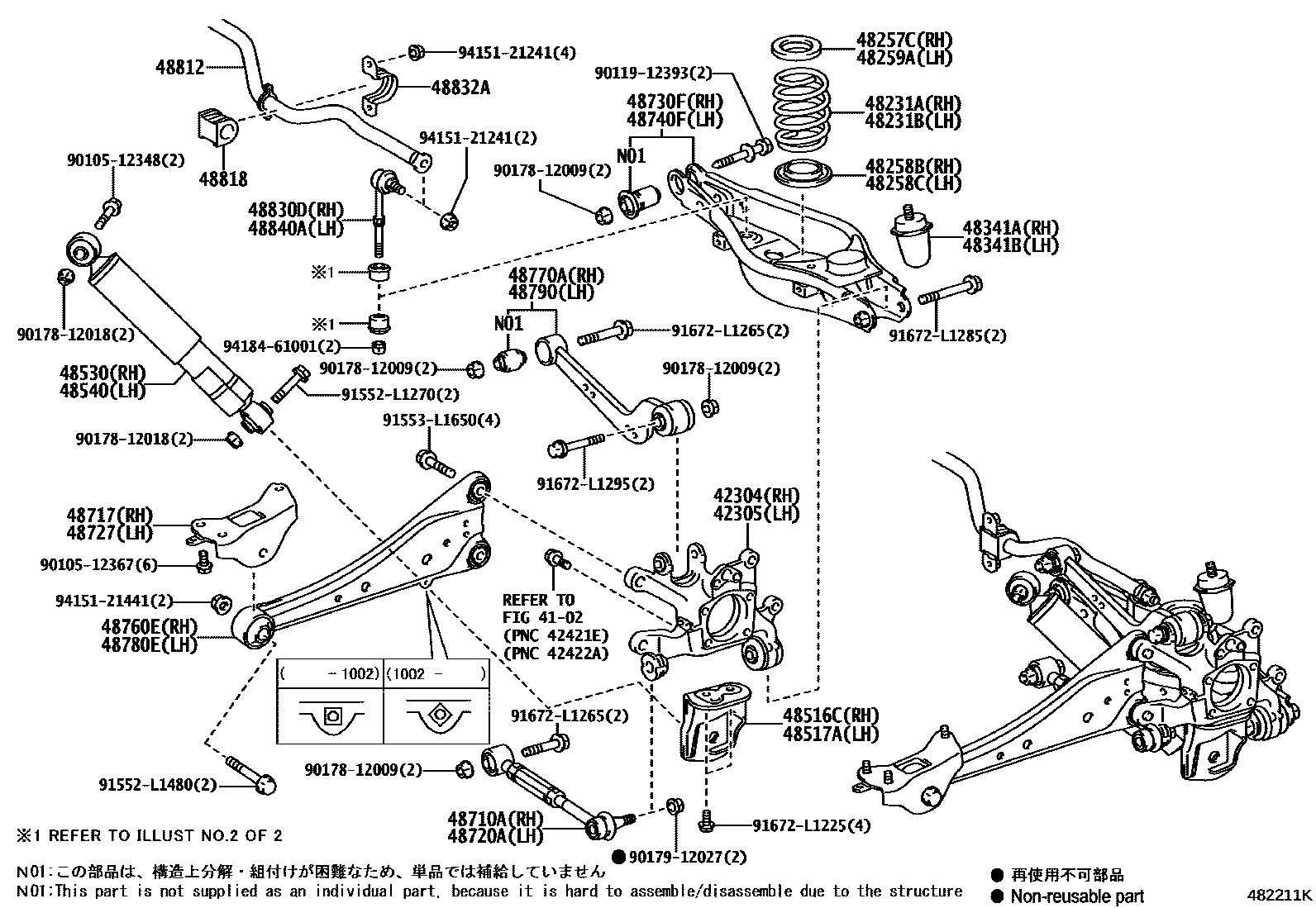

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1

4102

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-42020iASA3#,GSA3#..JPP200808-201212

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-42020iASA3#,GSA3#..JPP200808-201212

48231ASPRING, COIL, REAR RH

main48231-42170iASA38..JPP..X200808-200906

TIRE & DISK WHEEL-225/65R17H STEEL 6.5J

main48231-42171iASA38..JPP..X200907-201212

TIRE & DISK WHEEL-225/65R17H STEEL 6.5J

main48231-42180iGSA33..JPP;ACA33..JPP..(LIMD,SPO)200511-200808

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE

main48231-42181iGSA33..JPP;ASA38..JPP..X;ASA33..JPP..(LIMD,SPO)200907-201212

TIRE & DISK WHEEL-225/65R17H STEEL 6.5J

main48231-42230supersedes 48231-42240iACA38..JPP..X200511-200808

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE

main48231-42210iASA38..JPP..X200808-200906

TIRE & DISK WHEEL-225/65R17H STEEL 6.5J&THIRD SEAT-WITH(2PERSONS)

main48231-42211iASA38..JPP..X200907-201212

TIRE & DISK WHEEL-225/65R17H STEEL 6.5J&THIRD SEAT-WITH(2PERSONS)

main48231-42220supersedes 48231-42190iACA33..JPP..X200511-200808

225/65R17H STEEL 6.5J&THIRD SEAT-WITH(2PERSONS)

main48231-42221supersedes 48231-42191iASA33..JPP..LIMD;GSA33..JPP..(LIMD,X)200907-201212

TIRE & DISK WHEEL-225/65R17H STEEL 6.5J&THIRD SEAT-WITH(2PERSONS)

48231BSPRING, COIL, REAR LH

main48231-42170iASA38..JPP..X200808-200906

TIRE & DISK WHEEL-225/65R17H STEEL 6.5J

main48231-42171iASA38..JPP..X200907-201212

TIRE & DISK WHEEL-225/65R17H STEEL 6.5J

main48231-42180iGSA33..JPP;ACA33..JPP..(LIMD,SPO)200511-200808

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE

main48231-42181iGSA33..JPP;ASA38..JPP..X;ASA33..JPP..(LIMD,SPO)200907-201212

TIRE & DISK WHEEL-225/65R17H STEEL 6.5J

main48231-42230supersedes 48231-42240iACA38..JPP..X200511-200808

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE

main48231-42210iASA38..JPP..X200808-200906

TIRE & DISK WHEEL-225/65R17H STEEL 6.5J&THIRD SEAT-WITH(2PERSONS)

main48231-42211iASA38..JPP..X200907-201212

TIRE & DISK WHEEL-225/65R17H STEEL 6.5J&THIRD SEAT-WITH(2PERSONS)

main48231-42220supersedes 48231-42190iACA33..JPP..X200511-200808

225/65R17H STEEL 6.5J&THIRD SEAT-WITH(2PERSONS)

main48231-42221supersedes 48231-42191iASA33..JPP..LIMD;GSA33..JPP..(LIMD,X)200907-201212

TIRE & DISK WHEEL-225/65R17H STEEL 6.5J&THIRD SEAT-WITH(2PERSONS)

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-42030iASA3#,GSA3#..JPP200808-201212

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-42020iASA3#,GSA3#..JPP200808-201212

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-42020iACA3#,GSA3#..JPP200511-200808

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-42030iACA3#,GSA3#..JPP200511-200808

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-42010iACA3#,GSA3#..JPP200511-200808

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-42010iACA3#,GSA3#..JPP200511-200808

48516CBRACKET, REAR SHOCK ABSORBER, NO.1 RH

main48505-42010iACA3#,GSA3#..JPP200511-200808

48517ABRACKET, REAR SHOCK ABSORBER, NO.1 LH

main48506-42010iASA3#,GSA3#..JPP200808-201212

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-42130iACA33,GSA3#..JPP200511-200808

MARK 48531-42130,THIRD SEAT-WITH(2PERSONS)

sub48531-42131

main48531-42140iACA38..JPP200511-200808

MARK 48531-42140

sub48530-42040

main48531-42220iASA3#,GSA3#..JPP..(LIMD,X)200808-201209

MARK 48531-42220

main48531-42221iASA3#,GSA3#..JPP..(LIMD,X)201210-201212

MARK 48531-42221

sub48530-42050

main48531-42250iASA3#,GSA3#..JPP..SPO200808-201212

MARK 48531-42250

sub48530-42080

main48531-42260iGSA33..JPP..SPO200808-201212

MARK 48531-42260,TIRE & DISK WHEEL-235/55R18H-R/F EH2 GRAY

sub48530-42090

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-42130iACA33,GSA3#..JPP200511-200808

MARK 48531-42130,THIRD SEAT-WITH(2PERSONS)

sub48531-42131

main48531-42140iACA38..JPP200511-200808

MARK 48531-42140

sub48530-42040

main48531-42220iASA3#,GSA3#..JPP..(LIMD,X)200808-201209

MARK 48531-42220

main48531-42221iASA3#,GSA3#..JPP..(LIMD,X)201210-201212

MARK 48531-42221

sub48530-42050

main48531-42250iASA3#,GSA3#..JPP..SPO200808-201212

MARK 48531-42250

sub48530-42080

main48531-42260iGSA33..JPP..SPO200808-201212

MARK 48531-42260,TIRE & DISK WHEEL-235/55R18H-R/F EH2 GRAY

sub48530-42090

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-42020iACA3#,GSA3#..JPP200511-200808

main48710-42030iASA3#,GSA3#..JPP201008-201212

48717BRACKET, REAR SUSPENSION ARM, RH

main48717-42010iACA3#,GSA3#..JPP200511-200808

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-42020iACA3#,GSA3#..JPP200511-200808

main48710-42030iASA3#,GSA3#..JPP201008-201212

48727BRACKET, REAR SUSPENSION ARM, LH

main48727-42010iACA3#,GSA3#..JPP200511-200808

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-42050iACA3#,GSA3#..JPP200511-200808

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-42020iACA3#,GSA3#..JPP200511-200808

48760EARM ASSY, TRAILING, REAR RH

main48760-42010iACA3#,GSA3#..JPP200511-200808

main48760-42030iASA3#,GSA3#..JPP201002-201212

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-42040iACA3#,GSA3#..JPP200511-200808

48780EARM ASSY, TRAILING, REAR LH

main48780-42010iACA3#,GSA3#..JPP200511-200808

main48780-42030iASA3#,GSA3#..JPP201002-201212

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-42020iACA3#,GSA3#..JPP200511-200808

48812BAR, STABILIZER, REAR

main48812-42030iASA3#,GSA3#..JPP200808-201212

48818BUSH, STABILIZER, REAR

main48818-42010×2iACA33,GSA3#..JPP200511-200808

THIRD SEAT-WITH(2PERSONS)

48830DLINK ASSY, REAR STABILIZER, RH

main48830-42020iACA33,GSA3#..JPP200511-200707

THIRD SEAT-WITH(2PERSONS)

main48830-42021iASA3#,GSA3#..JPP200808-201212

sub48830-42022

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-42010×2iASA3#,GSA3#..JPP200808-201212

48840ALINK ASSY, REAR STABILIZER, LH

main48830-42020iACA33,GSA3#..JPP200511-200707

THIRD SEAT-WITH(2PERSONS)

main48830-42021iACA33,GSA3#..JPP200708-200808

THIRD SEAT-WITH(2PERSONS)

sub48830-42022

9010512348

main90105-12348

9010512367

main90105-12367

9011912393

main90119-12393

9017812009

main90178-12009

9017812018

main90178-12018

9017912027

main90179-12027

91552L1270

main91552-L1270

91552L1480

main91552-L1480

91553L1650

main91553-L1650

91672L1225

main91672-L1225

91672L1265

main91672-L1265

91672L1285

main91672-L1285

91672L1295

main91672-L1295

9415121241

main94151-21241

9415121441

main94151-21441

9418461001

main94184-61001

46 parts on this diagram · 3 diagrams in section
