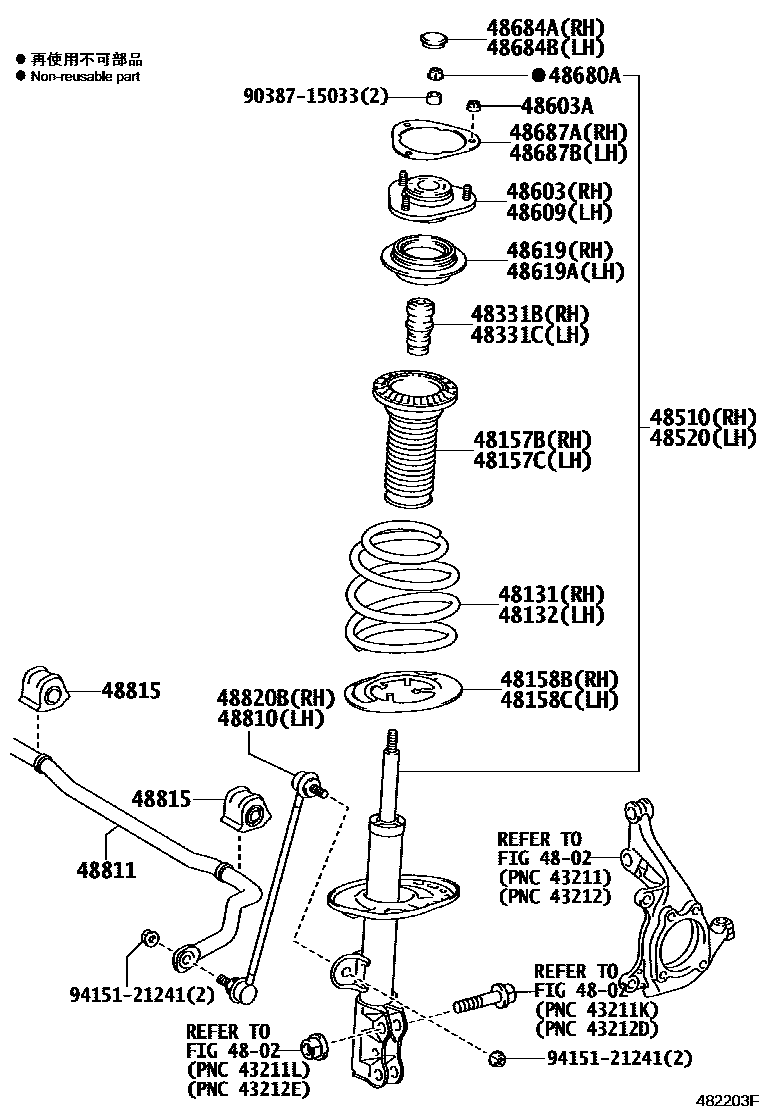

FRONT SPRING & SHOCK ABSORBER

0001 1TYPE A, FOR PNC48510 OR 485200005 1TYPE B, FOR PNC48510 OR 48520

4802

48131SPRING, FRONT COIL, RH

main48131-42280iGSA3#..JPP..X200601-200603

main48131-42281iGSA3#..JPP..LIMD200710-200808

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE

main48131-42470supersedes 48131-42490iACA38..JPP..X200511-200608

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE

main48131-42480iACA33..JPP..X200511-200710

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE

main48131-42481iACA33..JPP..X200710-200808

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE

main48131-42490iACA33..JPP..X200511-200711

main48131-42491iACA33..JPP..X200711-200808

main48131-42510iGSA3#..JPP..SPO200601-200702

main48131-42520iGSA3#..JPP..(SPO,X)200702-200710

main48131-42521iGSA3#..JPP..(SPO,X)200710-200808

main48131-42540iACA38..JPP..SPO200511-200603

main48131-42550iACA38..JPP..X200608-200710

main48131-42551iASA33..JPP..(LIMD,SPO)200808-200902

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

main48131-42552iASA33..JPP..(LIMD,SPO)200903-201212

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

main48131-42560iACA33..JPP..SPO200511-200603

sub48131-42561

main48131-42570iACA38..JPP..X200608-200702

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE

main48131-42580iACA38..JPP..X200702-200710

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE

main48131-42581iASA38..JPP..(LIMD,SPO)200808-200902

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

main48131-42582iASA38..JPP..(LIMD,SPO)200903-201212

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

main48131-42630iGSA3#..JPP200808-200902

main48131-42631iGSA3#..JPP200903-201212

main48131-42660iASA3#..JPP..X200808-200902

main48131-42661iASA3#..JPP..X200903-201212

main48131-42290iGSA33..JPP..X200601-200603

THIRD SEAT-WITH(2PERSONS)

main48131-42291iGSA33..JPP..LIMD200710-200808

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE&THIRD SEAT-WITH(2PERSONS)

main48131-42522iGSA33..JPP..(LIMD,X)200903-201212

THIRD SEAT-WITH(2PERSONS)

48132SPRING, FRONT COIL, LH

main48131-42280iGSA3#..JPP..LIMD200601-200710

main48131-42281iGSA3#..JPP..LIMD200710-200808

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE

main48131-42470supersedes 48131-42490iACA38..JPP..X200511-200608

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE

main48131-42480iACA33..JPP..X200511-200710

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE

main48131-42481iACA33..JPP..X200710-200808

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE

main48131-42490iACA33..JPP..X200511-200711

main48131-42491iACA33..JPP..X200711-200808

main48131-42510iGSA3#..JPP..SPO200601-200702

main48131-42520iGSA3#..JPP..(SPO,X)200702-200710

main48131-42521iGSA3#..JPP..(SPO,X)200710-200808

main48131-42540iACA38..JPP..SPO200511-200603

main48131-42550iACA33..JPP..SPO200702-200710

main48131-42551iASA33..JPP..(LIMD,SPO)200808-200902

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

main48131-42552iASA33..JPP..(LIMD,SPO)200903-201212

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

main48131-42560iACA33..JPP..SPO200511-200603

sub48131-42561

main48131-42570iACA38..JPP..X200608-200702

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE

main48131-42580iACA38..JPP..X200702-200710

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE

main48131-42581iASA38..JPP..(LIMD,SPO)200808-200902

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

main48131-42582iASA38..JPP..(LIMD,SPO)200903-201212

TIRE & DISK WHEEL-225/65R17H ALMINUM 7.0J 5SP

main48131-42630iGSA3#..JPP200808-200902

main48131-42631iGSA3#..JPP200903-201212

main48131-42660iASA3#..JPP..X200808-200902

main48131-42661iASA3#..JPP..X200903-201212

main48131-42290iGSA33..JPP..X200601-200603

THIRD SEAT-WITH(2PERSONS)

main48131-42291iGSA33..JPP..LIMD200710-200808

225/65R17H ALMI 5SPOKE 7.0J &STEEL SPARE&THIRD SEAT-WITH(2PERSONS)

main48131-42522iGSA33..JPP..(LIMD,X)200903-201212

THIRD SEAT-WITH(2PERSONS)

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-42020iASA3#,GSA3#..JPP200808-201206

main48157-42030supersedes 48157-42030iACA38..JPP..(LIMD,X)200511-200608

main48157-58010iASA3#,GSA3#..JPP201207-201212

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-42020iACA3#,GSA3#..JPP..SPO200511-200808

main48157-42030supersedes 48157-42030iACA38..JPP..(LIMD,X)200511-200608

main48157-58010iASA3#,GSA3#..JPP201207-201212

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-21010iASA3#,GSA3#..JPP201207-201212

main48158-42010iACA3#,GSA3#..JPP200511-200808

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-21010iASA3#,GSA3#..JPP201207-201212

main48158-42010iASA3#,GSA3#..JPP200808-201206

48331BBUMPER, FRONT SPRING, RH

main48331-42030iACA38..JPP..(LIMD,X)200608-200808

sub48331-28090

main48331-42040supersedes 48331-42040iACA38..JPP..(LIMD,X)200511-200608

main48331-42060iASA3#,GSA3#..JPP200808-201212

48331CBUMPER, FRONT SPRING, LH

main48331-42030iACA3#,GSA3#..JPP..SPO200511-200808

sub48331-28090

main48331-42040supersedes 48331-42040iACA38..JPP..(LIMD,X)200511-200608

main48331-42060iASA3#,GSA3#..JPP200808-201212

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80284iACA38..JPP..(LIMD,X)200608-200808

MARK 48510-42180,TYPE A

sub48510-80638

main48510-80285iGSA3#..JPP..SPO200601-200808

MARK 48510-42190,TYPE A

main48510-80287supersedes 48510-80287iACA38..JPP..(LIMD,X)200511-200608

MARK 48510-42160,TYPE B

sub48510-80637

main48510-80366iASA3#,GSA3#..JPP..(LIMD,X)200808-201210

MARK 48510-42300,TYPE A

main48510-80453iASA3#,GSA3#..JPP..SPO200808-201212

MARK 48510-42330,TYPE A

main48510-80639iASA3#,GSA3#..JPP..(LIMD,X)201211-201212

MARK 48510-42301,TYPE A

main48510-80454iGSA33..JPP..SPO200808-201212

MARK 48510-42340,TIRE & DISK WHEEL-235/55R18H-R/F EH2 GRAY,TYPE A

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80071iACA3#..JPP..SPO200511-200808

MARK 48520-42180,TYPE A

sub48520-80341

main48520-80072iGSA3#..JPP..SPO200601-200808

MARK 48520-42190,TYPE A

main48520-80074supersedes 48520-80074iGSA3#..JPP..LIMD;ACA33..JPP..(LIMD,X)200511-200808

MARK 48520-42160,TYPE B

sub48520-80340

main48520-80130iASA3#,GSA3#..JPP..(LIMD,X)200808-201210

MARK 48520-42300,TYPE A

main48520-80197iASA3#,GSA3#..JPP..SPO200808-201212

MARK 48520-42330,TYPE A

main48520-80342iASA3#,GSA3#..JPP..(LIMD,X)201211-201212

MARK 48520-42301,TYPE A

main48520-80198iASA3#..JPP..SPO..USA201002-201212

MARK 48520-42340,TIRE & DISK WHEEL-235/55R18H-R/F EH2 GRAY,TYPE A

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-42020iACA38..JPP..(LIMD,X)200608-200808

main48609-42030supersedes 48609-42030iACA38..JPP..(LIMD,X)200511-200608

sub48609-42060

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10030×6iASA3#,GSA3#..JPP200808-201212

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-42020iASA3#,GSA3#..JPP200808-201212

main48609-42030supersedes 48609-42030iACA38..JPP..(LIMD,X)200511-200608

sub48609-42060

48619BEARING, STRUT MOUNTING, RH

main48619-42010iACA3#,GSA3#..JPP..SPO200511-200808

48619ABEARING, STRUT MOUNTING, LH

main48619-42010iACA3#,GSA3#..JPP..SPO200511-200808

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90177-14005×2iACA3#,GSA3#..JPP200511-200808

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-42010iACA3#..JPP..SPO200511-200512

main48684-42020iACA3#,GSA3#..JPP200601-200808

main48684-52010iACA3#..JPP..(LIMD,X)200511-200512

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-42010iACA3#..JPP..SPO200511-200512

main48684-42020iASA3#,GSA3#..JPP200808-201212

main48684-52010iACA3#..JPP..(LIMD,X)200511-200512

48687APLATE, FRONT SUSPENSION SUPPORT, RH

main48687-28010iACA3#,GSA3#..JPP200511-200808

48687BPLATE, FRONT SUSPENSION SUPPORT, LH

main48687-28010iACA3#,GSA3#..JPP200511-200808

48810LINK ASSY, FRONT STABILIZER, LH

main48820-42030iACA3#,GSA3#..JPP200511-200808

48811BAR, STABILIZER, FRONT

main48811-42060iACA38..JPP200511-200808

main48811-42070iACA38..JPP..LIMD200511-200808

THIRD SEAT-WITH(2PERSONS)

main48811-42071iASA3#,GSA3#..JPP201204-201212

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-42070iACA38..JPP200511-200707

LH

main48815-42080iACA38..JPP200708-200808

RH

main48815-42090iACA38..JPP..LIMD200511-200808

LH

main48815-42100iACA38..JPP..LIMD200511-200808

THIRD SEAT-WITH(2PERSONS),RH

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-42030iASA3#,GSA3#..JPP200808-201212

9038715033

main90387-15033

9415121241

main94151-21241

27 parts on this diagram · 2 diagrams in section
