43211KNUCKLE, STEERING, RH

main43211-42080i200511-200808

main43211-42081i201205-201212

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-17008×2i200808-201212

OD=17,TYPE A:REFER ILLUST.

main90105-17009i200808-201212

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010i200808-201212

OD=15,TYPE C:REFER ILLUST.

main90105-17011i200511-200808

OD=14,TYPE D:REFER ILLUST.

43211LNUT (FOR STEERING KNUCKLE RH)

main90178-17002×2i200511-200808

43212KNUCKLE, STEERING, LH

main43212-42080i200511-200808

main43212-42081i201205-201212

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-17008×2i200511-200808

OD=17,TYPE A:REFER ILLUST.

main90105-17009i200808-201212

OD=15.9,TYPE B:REFER ILLUST.

main90105-17010i200511-200808

OD=15,TYPE C:REFER ILLUST.

main90105-17011i200511-200808

OD=14,TYPE D:REFER ILLUST.

43212ENUT (FOR STEERING KNUCKLE LH)

main90178-17002×2i200511-200808

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-49095i200511-200808

sub43330-49215

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14011i200511-200808

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12346i200902-201212

main91552-G1230i200808-200901

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90178-12019×2i200808-201212

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-49095i200808-201212

sub43330-49215

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14011i200511-200808

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12346i200902-201212

main91552-G1230i200808-200901

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90178-12019×2i200511-200808

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-42050i200511-200801

main48068-42051i200801-200808

sub48068-42060

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main91554-L1690i200511-200808

48068KNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90178-16006i200511-200808

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main91554-L1690i200511-200808

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-42050i200511-200801

main48069-42051i200801-200808

sub48069-42060

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main91554-L1690i200511-200808

48069FNUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90178-16006i200511-200808

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main91554-L1690i200511-200808

9046816029

main90468-16029

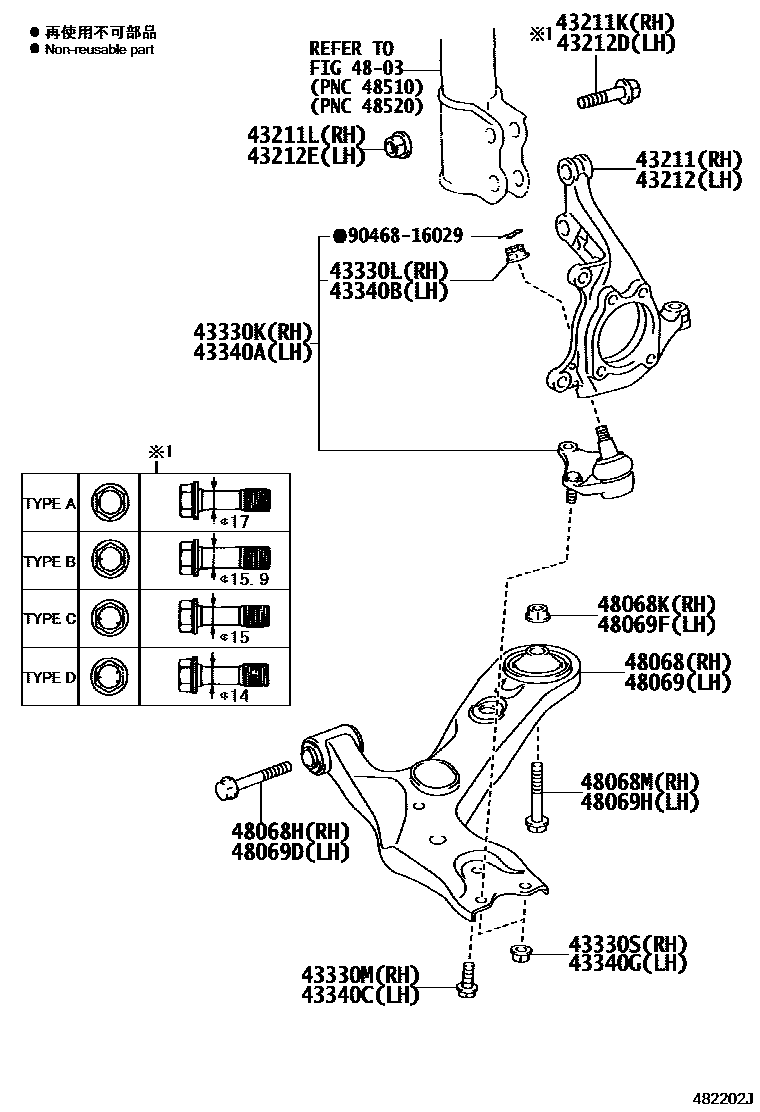

FRONT AXLE ARM & STEERING KNUCKLE
