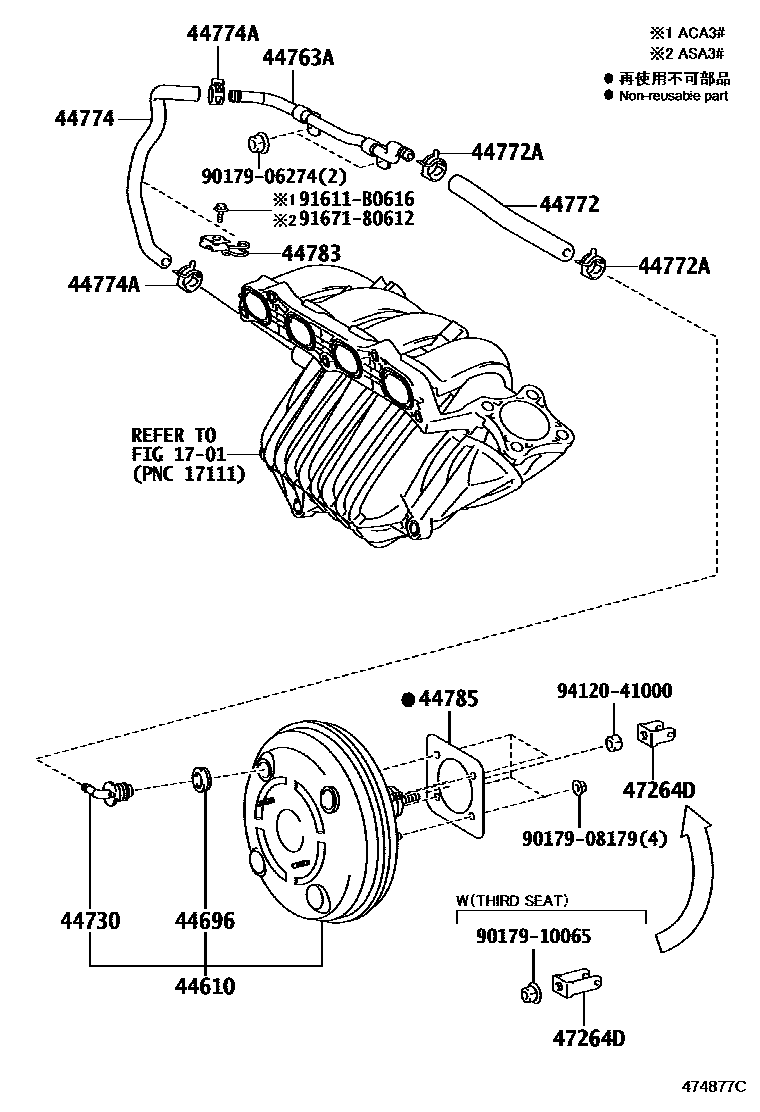

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-42300iACA3#..JPP200511-200803

main44610-42301iASA3#..JPP200808-201212

main44610-42320iGSA3#..JPP200601-200803

main44610-42321iASA3#..JPP..(LIMD,X); GSA3#..JPP200808-201212

THIRD SEAT-WITH(2PERSONS)

44696GROMMET, CHECK VALVE

main90480-24439iACA3#,GSA3#..JPP200511-200808

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iACA3#,GSA3#..JPP200511-200808

44763ATUBE, HOSE TO HOSE, NO.1

main44763-42060iACA3#..JPP200511-200808

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-42070iACA3#..JPP200511-200808

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main96133-41500×2iACA3#..JPP200511-200808

44774HOSE, UNION TO CONNECTOR TUBE

main44774-42070iACA3#..JPP200511-200808

main44774-42110iASA3#..JPP200808-201212

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main96133-41500×2iASA3#..JPP200808-201212

44783CLAMP, VACUUM HOSE

main44783-42020iGSA3#..JPP200601-200808

main44783-42030iASA3#..JPP200808-201212

main44783-44010iACA3#..JPP200511-200808

44785GASKET, BRAKE BOOSTER

main44785-12040iACA3#,GSA3#..JPP200702-200808

main44785-42010iACA3#,GSA3#..JPP200511-200702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iGSA3#..JPP200601-200808

main47264-63010iACA3#..JPP200511-200808

9017906274

main90179-06274

9017908179

main90179-08179

9017910065

main90179-10065

91611B0616

main91611-B0616

9167180612

main91671-80612

9412041000

main94120-41000

18 parts on this diagram · 2 diagrams in section
