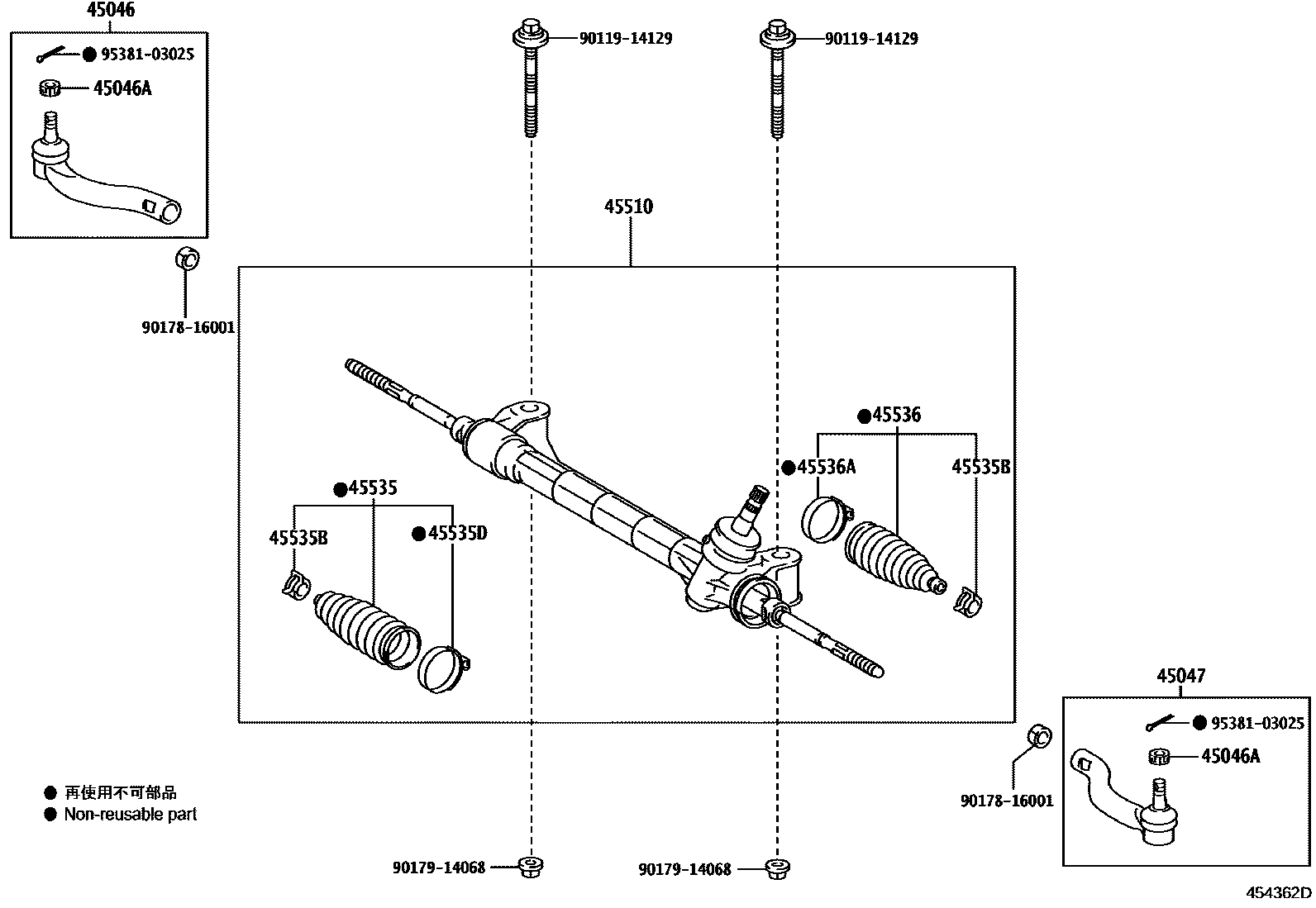

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-49195200511-201212

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028200511-201212

45047END SUB-ASSY, TIE ROD, LH

main45047-49135200511-201212

45510GEAR ASSY, STEERING

main45510-42030200511-200803

main45510-42040200511-200803

main45510-42080200804-201212

main45510-42090200804-201212

45535BOOT, STEERING RACK, NO.1

main45535-49025200511-201212

45535BCLIP(FOR STEERING RACK BOOT)

main45537-42010200808-201212

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-42010200808-201212

45536BOOT, STEERING RACK, NO.2

main45535-49025200511-201212

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-42010200808-201212

9011914129

main90119-14129

9017816001

main90178-16001

9017914068

main90179-14068

9538103025

main95381-03025

13 parts on this diagram · 2 diagrams in section
