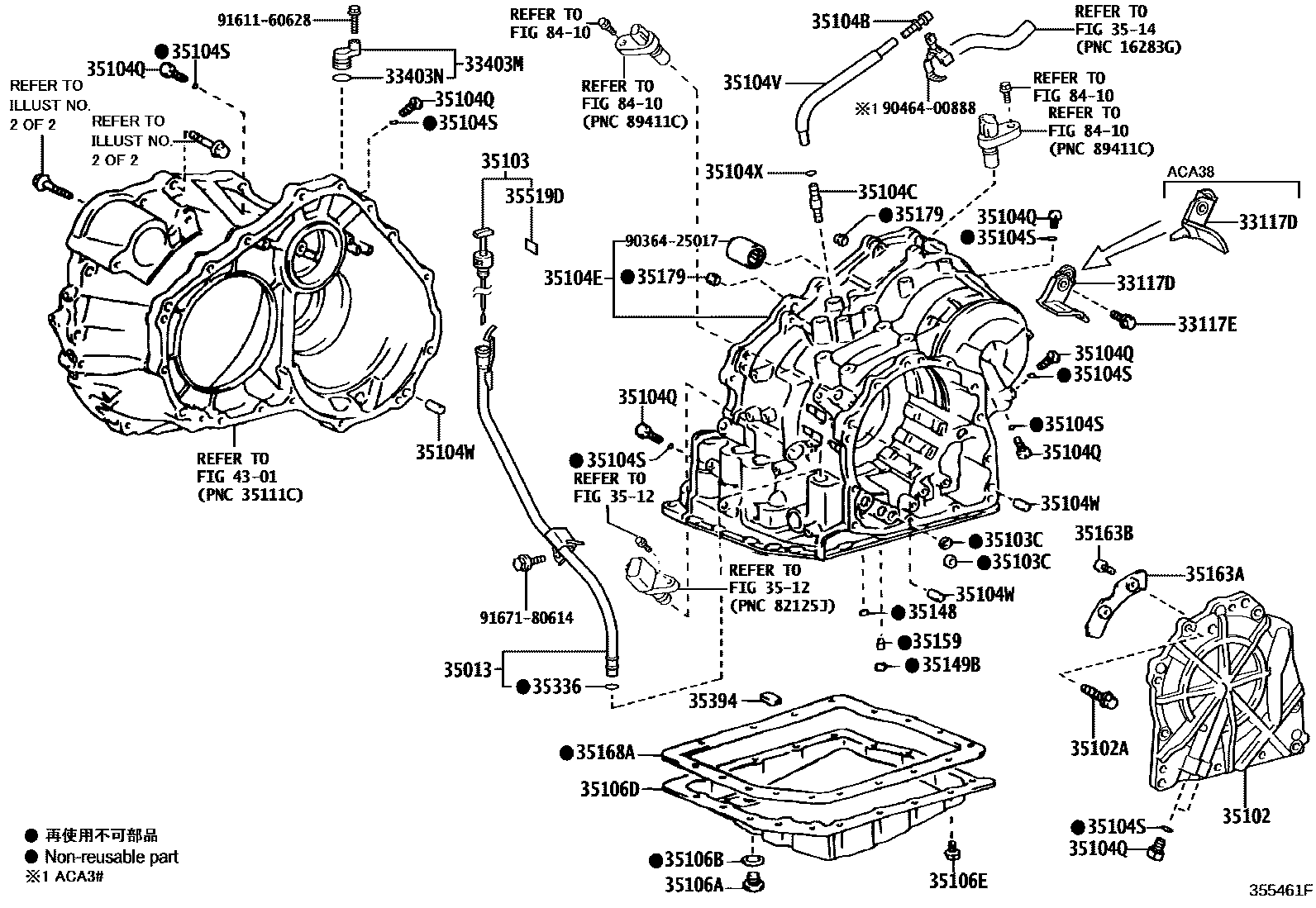

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U140F,U241E 0002 1U151E,U151F 0003 1U140F,U241E,U151E,U151F

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-21010iACA33,GSA3#..JPP200511-201212

main33117-28020iACA38..JPP200511-201212

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main91641-H0820iACA3#,GSA3#..JPP200511-201212

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iACA38..JPP200511-201212

main33403-21020iASA33,GSA3#..JPP200511-201212

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main96711-24018iACA38..JPP200511-201212

main96711-24020iACA33,GSA3#..JPP200511-201212

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-42090iACA3#..JPP200511-201212

main35013-42110iGSA3#..JPP200601-201212

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-20060iGSA3#..JPP200601-201212

main35102-42010iACA33..JPP200511-201212

main35102-42020iACA38..JPP200511-201212

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08071iACA3#,GSA3#..JPP200511-201212

*8-1.25PX30-25

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-42080iASA33..JPP200511-201212

main35103-42090iACA38..JPP200511-201212

main35103-42100iGSA3#..JPP200601-201205

main35103-42101iGSA3#..JPP201206-201212

35103CRING, O

main90301-10189iASA3#..JPP201003-201212

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iACA3#,GSA3#..JPP200511-201212

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03157iACA3#..JPP200511-201212

main90930-03183iGSA3#..JPP200601-201212

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-28081iACA33..JPP200511-200704

MARK A011

main35104-28082iACA33..JPP200704-201003

MARK A012

main35104-28083iASA33..JPP201003-201212

main35104-28091iACA38..JPP200511-200603

MARK A011

main35104-28092iACA38..JPP200603-201003

MARK A012

main35104-28093iASA38..JPP201003-201212

main35104-33041iGSA3#..JPP200601-200704

main35104-33042iGSA3#..JPP200704-201003

main35104-33043iGSA3#..JPP201003-201212

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iACA3#..JPP200511-201212

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iASA3#..JPP200511-201212

35104VHOSE (FOR BREATHER PLUG)

main35121-21020iACA3#,GSA3#..JPP200511-201212

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10034iASA3#,GSA3#..JPP200511-201212

35104XRING, O (FOR BREATHER PLUG)

main90301-06005iASA3#,GSA3#..JPP200511-201212

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iACA3#,GSA3#..JPP200511-201212

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iASA3#,GSA3#..JPP200511-201212

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-28090iASA3#..JPP200511-201212

main35106-33040iGSA3#..JPP200601-201212

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iACA3#,GSA3#..JPP200511-201212

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

3514OIL COOLER & TUBE (ATM)

→ Go to FIG 35-14

35148GASKET, GOVERNOR APPLY, NO.1

main35145-21010iACA3#..JPP200511-201212

35149BGASKET, TRANSAXLE CASE 2ND BRAKE

main35149-21010iACA3#,GSA3#..JPP200511-201212

35159GASKET, BRAKE DRUM

main35159-21010iACA3#,GSA3#..JPP200511-201212

35163APLATE, TRANSAXLE REAR COVER

main35163-28010iACA3#..JPP200511-201212

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055iACA3#..JPP200511-201212

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-21010iACA3#,GSA3#..JPP200511-200709

main35168-21011iACA3#,GSA3#..JPP200709-201212

35179GASKET, OVERDRIVE BRAKE

main35179-32010iACA3#,GSA3#..JPP200511-201003

main90301-06008iASA3#,GSA3#..JPP201003-201212

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iACA3#,GSA3#..JPP200511-201212

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-48010iACA3#..JPP200511-201212

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-41010iACA3#,GSA3#..JPP200511-201212

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9036425017

main90364-25017

9046400888

main90464-00888

9161160628

main91611-60628

9167180614

main91671-80614

39 parts on this diagram · 3 diagrams in section
