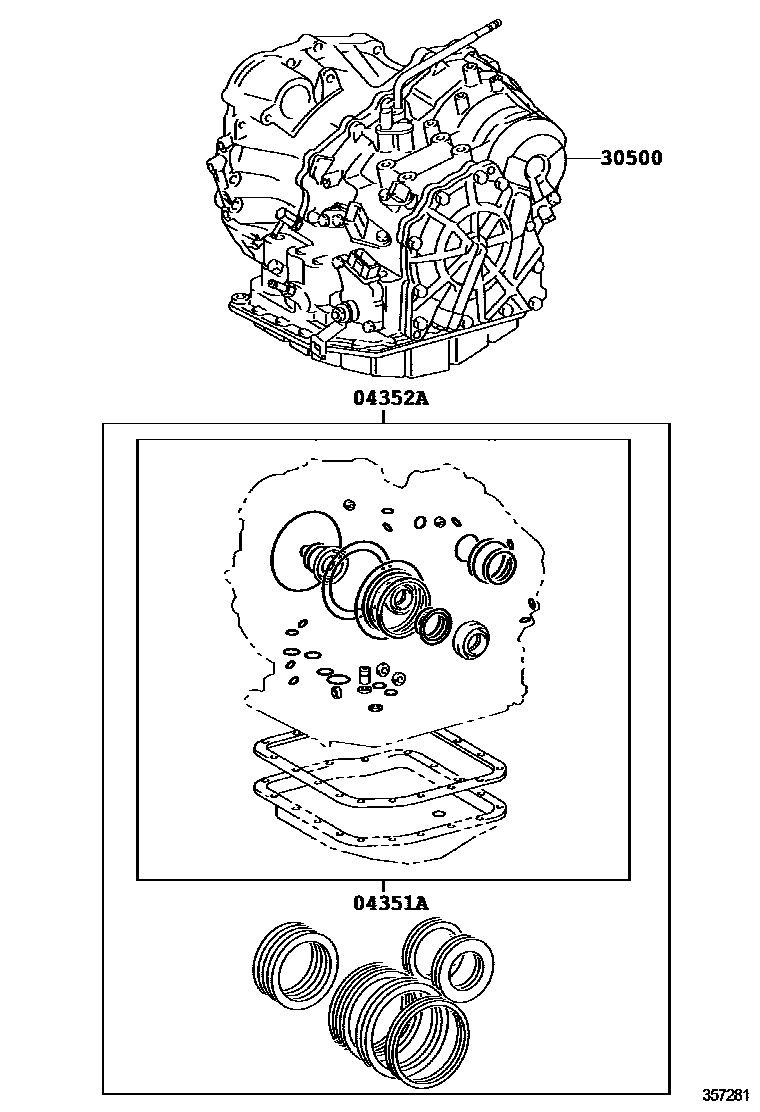

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-12780i200808-201002

main04351-33110i200601-200612

main04351-33240i201003-201212

main04351-33241i200511-200808

main04351-33380i200603-200805

main04351-42051i201002-201212

main04351-42070i200511-200603

main04351-42080i200601-200808

main04351-42120i200808-201002

main04351-42130i200808-201212

main04351-42140i200808-201001

main04351-48090i200612-200808

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-12780i200808-201002

main04352-33110i200601-200808

main04352-42061i201002-201212

main04352-42080i200511-200608

main04352-42081i201003-201212

main04352-42090i200511-200607

main04352-42091i200608-200805

main04352-42100i200601-200808

main04352-42170i200808-201002

main04352-42180i200808-201212

main04352-42190i200808-201001

main04352-48160i201003-201212

30500TRANSAXLE ASSY, AUTOMATIC

main30500-12C90i200808-200908

U140F

main30500-42190i200601-200704

U151E

main30500-42191i200808-201212

U151E

main30500-42200i200601-200704

U151F

main30500-42201i200704-200808

U151F

main30500-42202i200907-201212

U151F

main30500-42220i200511-200704

U140F

main30500-42221i200704-200808

U140F

main30500-42230i200511-200603

U241E

main30500-42231i200603-200808

U241E

main30500-42260i200808-201212

U241E

main30500-42330i200908-201212

U140F

3 parts on this diagram · 1 diagram in section
