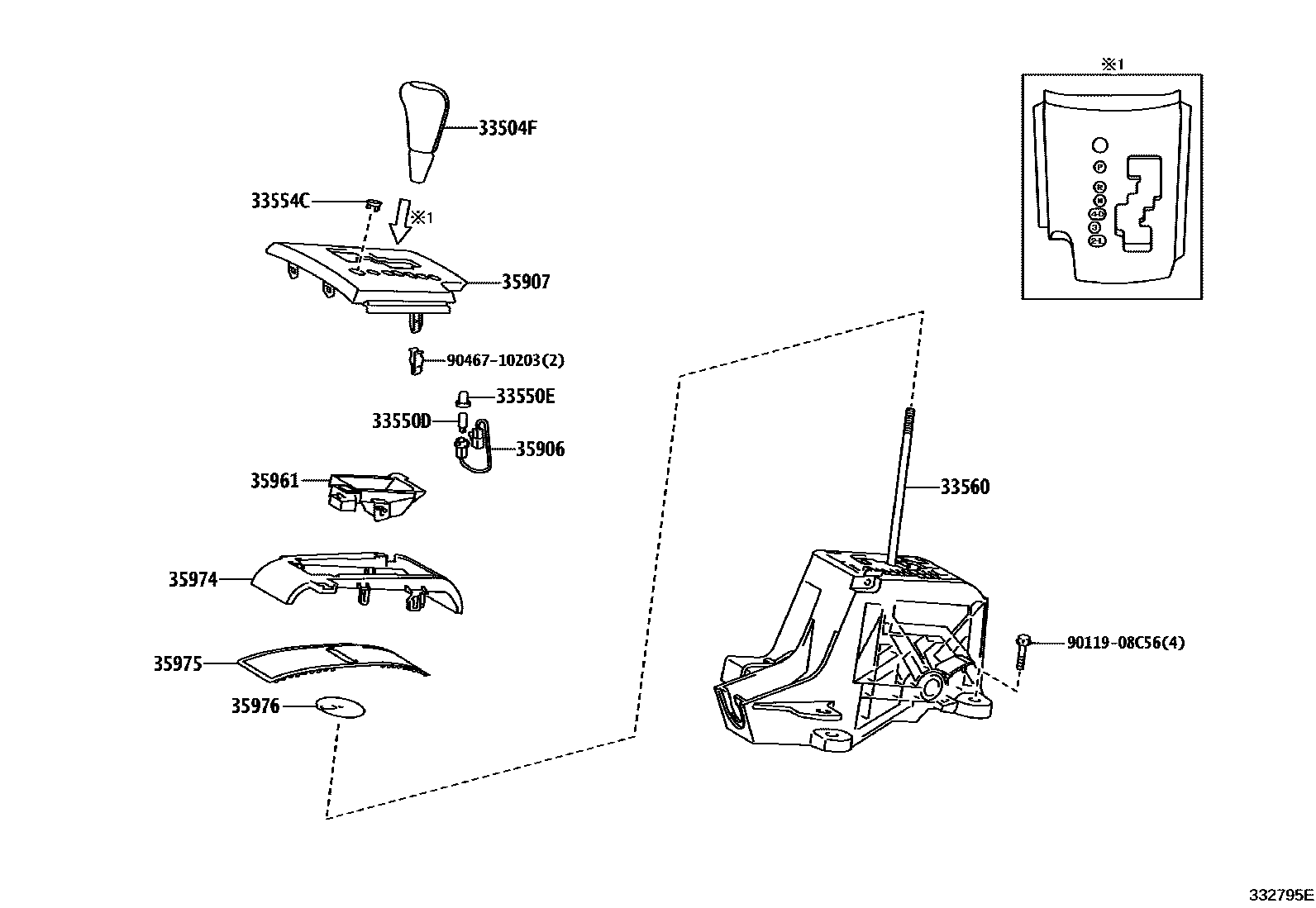

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-42020-B0iASA3#,GSA3#..JPP..SPO; ASA3#,GSA3#..JPP..X200808-201212

DK.GRAY,TRIM1#; DK.GRAY,TRIM1#,4#

main33504-42030-B0iACA3#,GSA3#..JPP..LIMD200511-200708

DK.GRAY,TRIM1#,4#

main33504-42030-B2iACA3#,GSA3#..JPP..LIMD200708-200808

DK.GRAY & GRAY,TRIM1#,4#

main33504-42030-B3iASA3#,GSA3#..JPP..LIMD200808-201212

DK.GRAY,TRIM1#,4#

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iACA3#,GSA3#..JPP200608-200808

12V 1.2W W/O SOCKET

main90981-30001iACA3#,GSA3#..JPP200511-200607

14V 0.7W

33550ECAP, POSITION INDICATOR LAMP

main90339-04071iASA3#,GSA3#..JPP200808-201212

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-42030iACA3#,GSA3#..JPP200511-200808

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-42020iGSA3#..JPP200601-200808

main33560-42030iACA3#..JPP200511-200808

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-42050iACA3#,GSA3#..JPP200511-200808

main35906-42060iASA3#,GSA3#..JPP201006-201212

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-42010iGSA3#..JPP200601-200808

main35907-42020iASA3#..JPP200808-201212

35961HOUSING, POSITION INDICATOR LAMP

main35961-42010iACA3#,GSA3#..JPP200511-200808

35974HOUSING, POSITION INDICATOR, LOWER

main33560-42060iASA3#,GSA3#..JPP200808-201212

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-42020iACA3#,GSA3#..JPP200511-200808

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-42010iACA3#,GSA3#..JPP200511-200611

main35976-42011iACA3#,GSA3#..JPP200611-200808

9011908C56

main90119-08C56

9046710203

main90467-10203

13 parts on this diagram · 3 diagrams in section
