FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
1708VACUUM PIPING

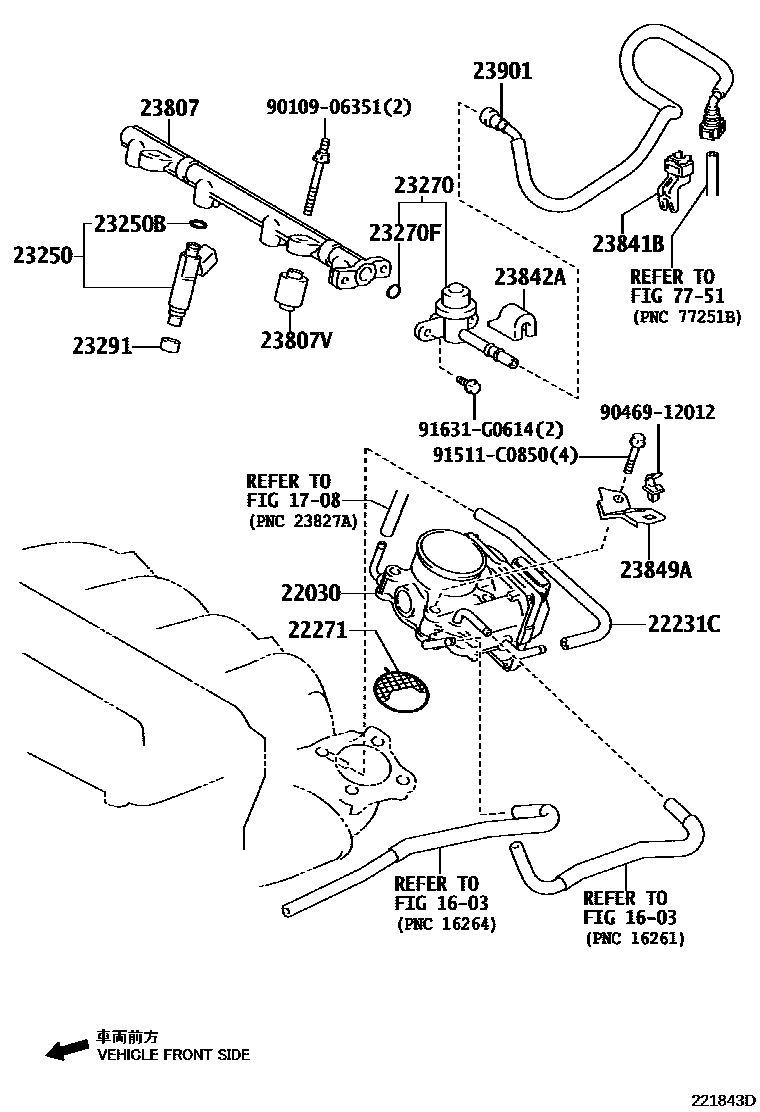

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22231CHOSE, THROTTLE BODY, NO.1
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
(L)
(J)
23250BRING, O(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
MARK 23270-36010
MARK 23270-36031
23270FRING, O(FOR PULSATION DAMPER)
23291INSULATOR, INJECTOR VIBRATION
23807PIPE SUB-ASSY, FUEL DELIVERY
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
TYPE B:REFER ILLUST.
23849ASUPPORT, FUEL PIPE
23901TUBE SUB-ASSY, FUEL
7751FUEL TANK & TUBE
9010906351
main90109-06351
9046912012
main90469-12012
91511C0850
main91511-C0850
91631G0614
main91631-G0614
21 parts on this diagram · 3 diagrams in section
