MANIFOLD

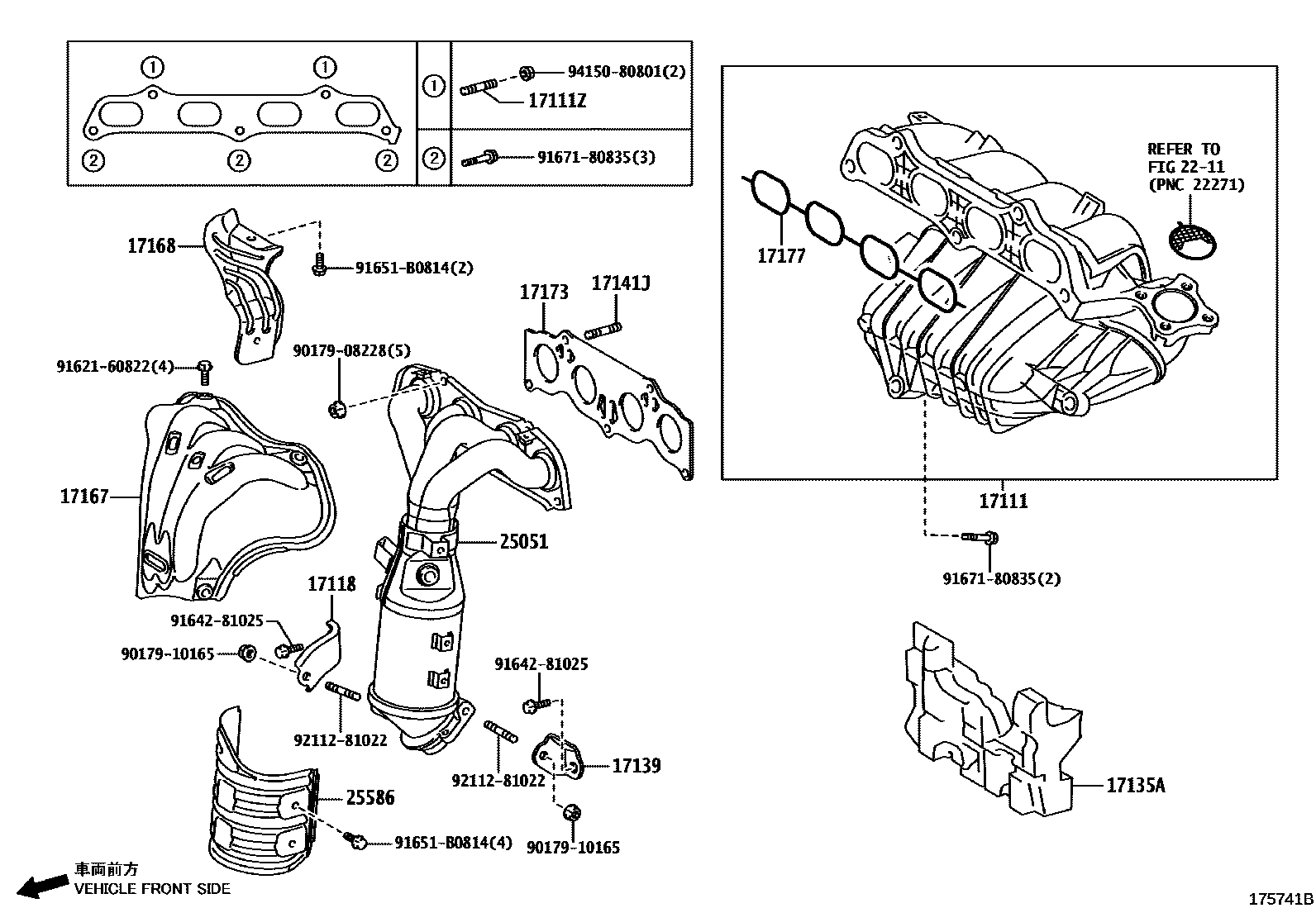

Parts diagram

17111MANIFOLD, INTAKE

main17111-31141i200601-201212

main17120-28170i200511-200808

main17120-36010i200808-201212

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08026i200511-200808

17118STAY, MANIFOLD

main17118-28080i200511-200808

main17118-31040i200601-201212

main17118-31050i200601-201212

main17118-36010i200808-201212

17135AINSULATOR, INTAKE MANIFOLD, NO.1

main17135-28011i200511-200808

17139STAY, MANIFOLD, NO.2

main17139-28050i200511-200808

main17139-36010i200808-201212

17141JBOLT, STUD(FOR EXHAUST MANIFOLD, RH)

main90126-08037i200511-200808

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-28060i200511-200808

main17167-36010i200808-201008

main17167-36011i201008-201212

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-28030i200511-200808

main17168-31020i200601-200703

main17168-31021i200704-201212

main17168-36010i200808-201212

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-28010i200511-200808

main17173-31020i200601-201212

main17173-36020i200808-201212

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-36010i200808-201212

main17177-28010i200511-200808

main17177-31040i200601-201212

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-28340i200511-200808

*114=TOYOTA/28340/Y

main25051-28360i200511-200808

*114=TOYOTA/28360/Y,*195

main25051-36010i200808-201212

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-28090i200511-200808

main25586-36010i200808-201212

9017908228

main90179-08228

9017910165

main90179-10165

9162160822

main91621-60822

9164281025

main91642-81025

91651B0814

main91651-B0814

9167180835

main91671-80835

9211281022

main92112-81022

9415080801

main94150-80801

21 parts on this diagram · 3 diagrams in section
