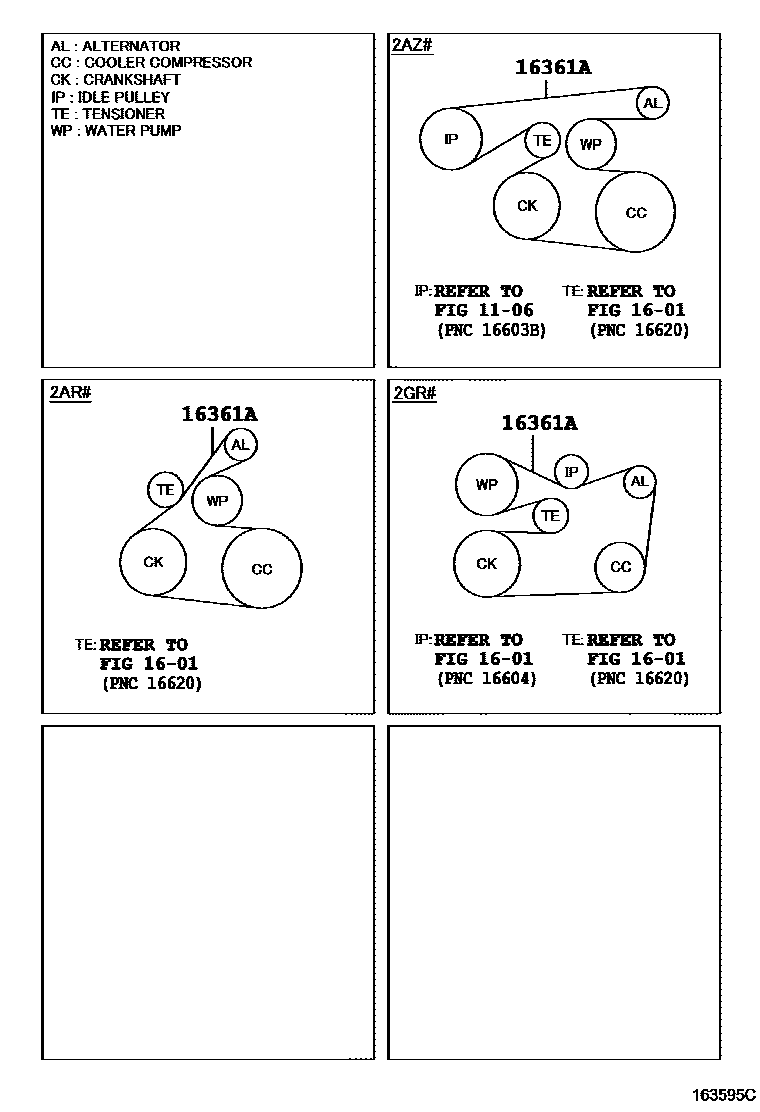

V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02652200511-200808

main90916-02667200808-201212

main90916-02668200808-201212

main99367-C1550200601-201212

3 parts on this diagram · 1 diagram in section
