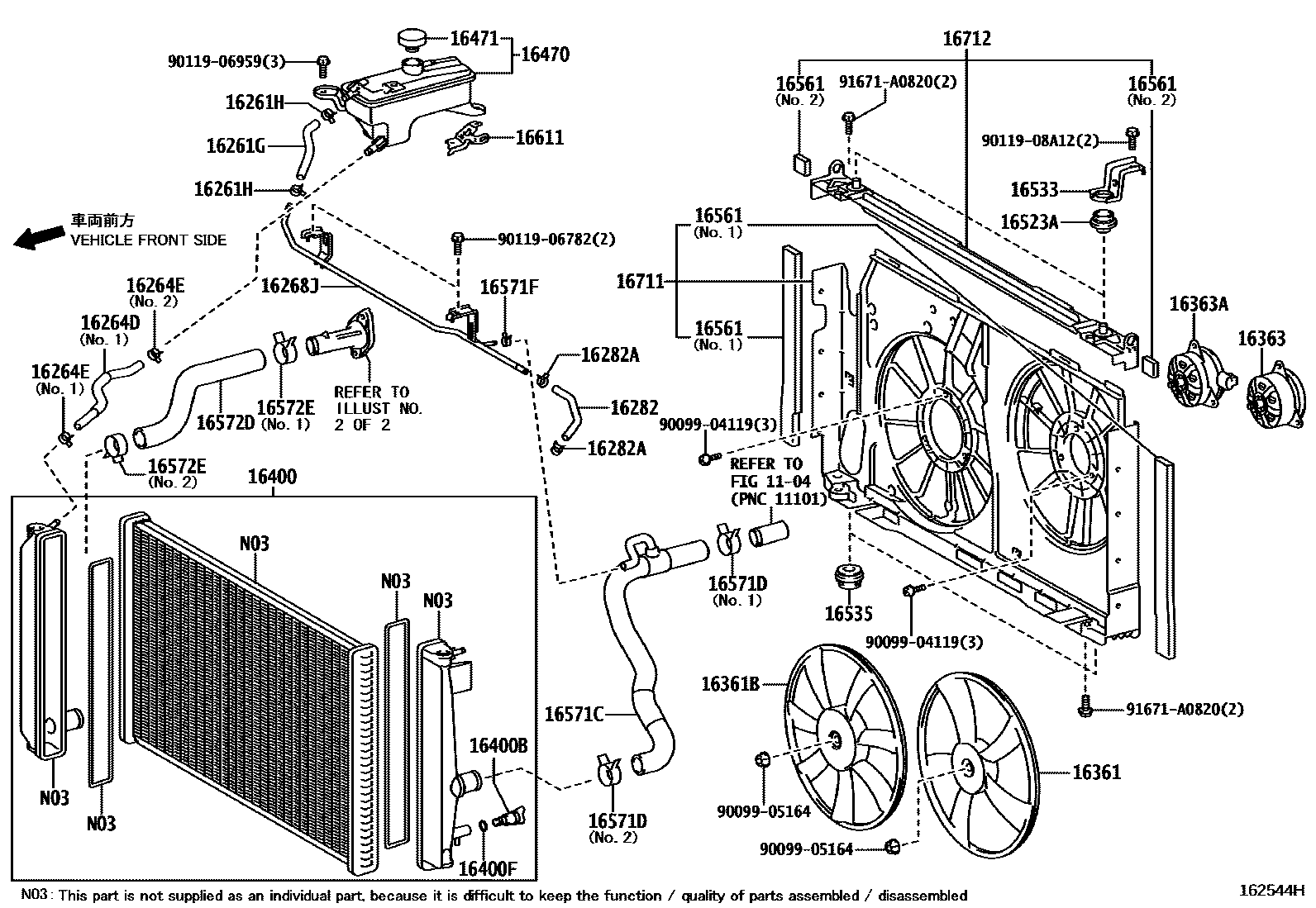

RADIATOR & WATER OUTLET
1104CYLINDER HEAD
16261HOSE, WATER BY-PASS
NO.1
*195
NO.2; PUERTORICO SPEC,NO.2
16261GHOSE, WATER BY-PASS, NO.1
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16264HOSE, WATER BY-PASS, NO.2
NO.1
NO.2
16264DHOSE, WATER BY-PASS, NO.2
16264ECLIP(FOR WATER BY-PASS HOSE NO.2)
NO.1
NO.2
16268PIPE, WATER BY-PASS, NO.1
16268JPIPE, WATER BY-PASS, NO.5
16282HOSE, WATER BY-PASS, NO.5
16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16361FAN
WITH(TOWING PACKAGE)
16361BFAN, NO.2
WITH(TOWING PACKAGE)
16363MOTOR, COOLING FAN
WITH(TOWING PACKAGE)
16363AMOTOR, COOLING FAN, NO.2
WITH(TOWING PACKAGE)
16400RADIATOR ASSY
WITH(TOWING PACKAGE)
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16471CAP SUB-ASSY, RESERVE TANK
16523ACUSHION, RADIATOR SUPPORT
16533SUPPORT, RADIATOR, UPPER
WITH(TOWING PACKAGE)
16535SUPPORT, RADIATOR, LOWER
16561SEAL, RADIATOR TO SUPPORT, NO.1
NO.2
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
16571FCLAMP OR CLIP(FOR WATER HOSE)
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
NO.1
NO.2
NO.1
NO.2
NO.1
NO.2
16611BRACKET, RADIATOR RESERVE TANK
16711SHROUD, FAN
WITH(TOWING PACKAGE)
WITH(TOWING PACKAGE)
16712SHROUD, FAN, NO.2
WITH(TOWING PACKAGE)
WITH(TOWING PACKAGE)
9009904119
main90099-04119
9009905164
main90099-05164
9011906782
main90119-06782
9011906959
main90119-06959
9011908A12
main90119-08A12
91671A0820
main91671-A0820
38 parts on this diagram · 7 diagrams in section
