SHORT BLOCK ASSEMBLY

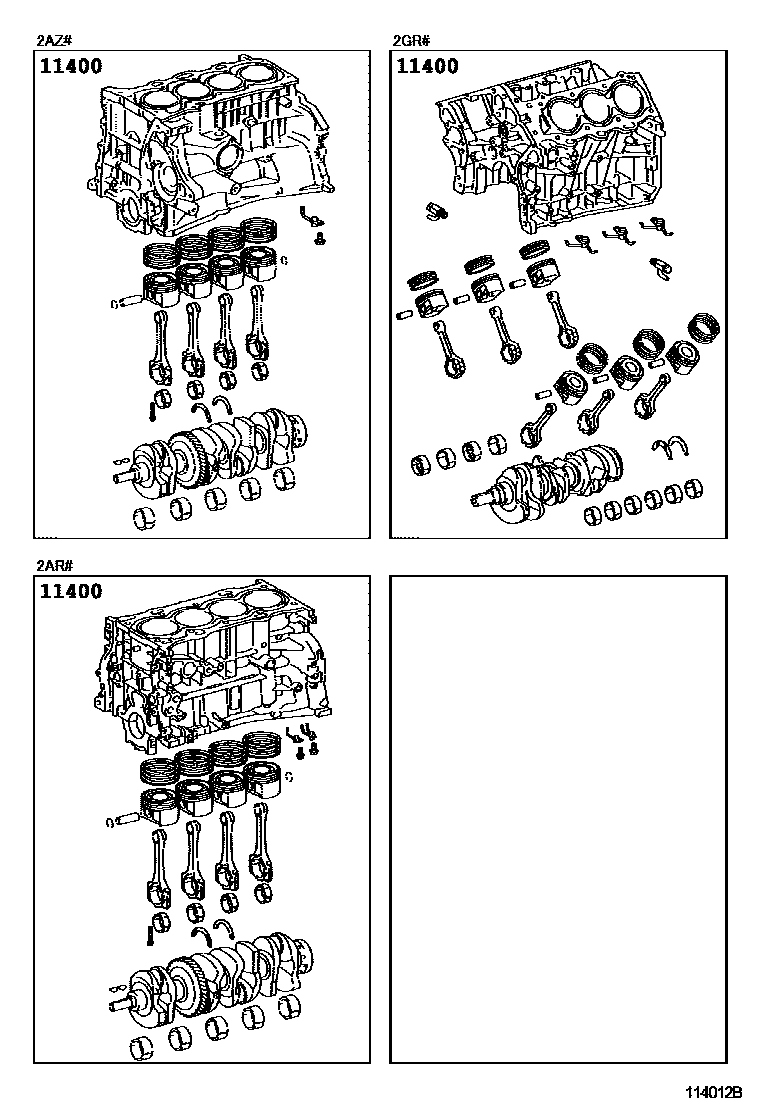

Parts diagram

11400BLOCK ASSY, SHORT

main11400-28400i200601-200808

main11400-28490i200511-200601

main11400-31160i200601-200703

main11400-31161i200808-200905

main11400-31163i200905-201210

main11400-31360i201210-201212

main11400-36060i200808-201212

1 parts on this diagram · 1 diagram in section
