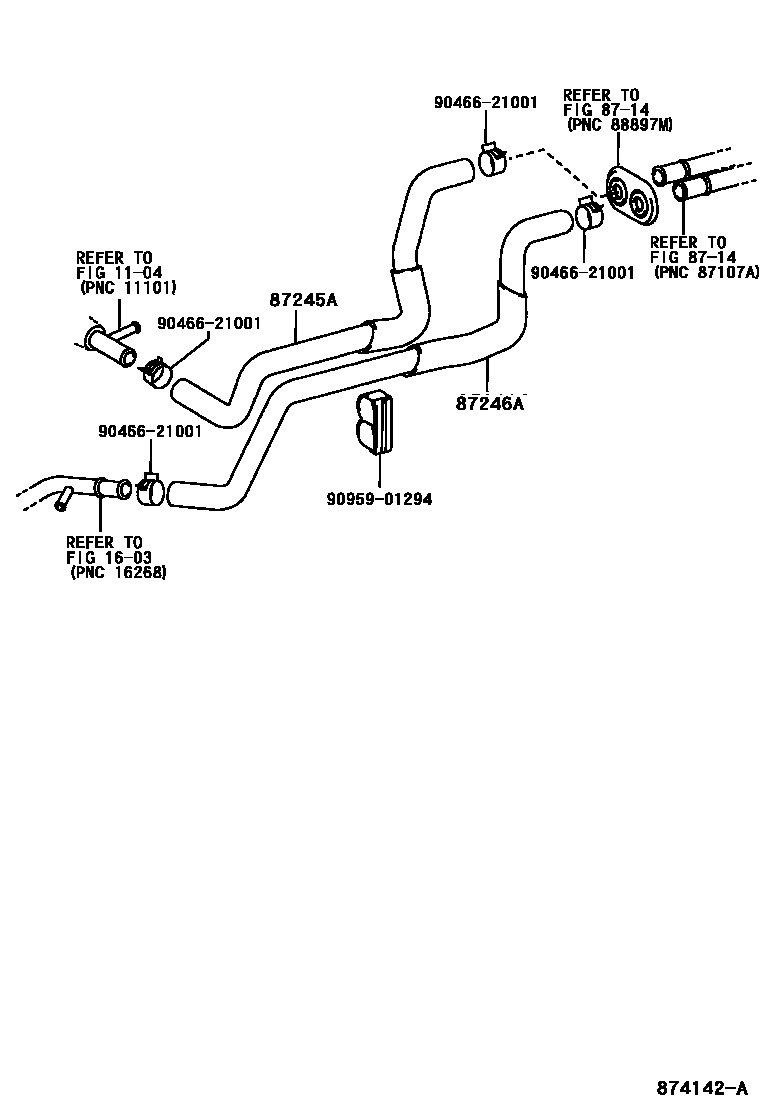

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245AHOSE, HEATER WATER, INLET A

main87209-42020iACA2#..ATM200307

main87245-42190iACA2#200008-200307

main87245-42270iACA2#..ATM; ACA2#..MTM200307

W(OIL COOLER)

87246AHOSE, HEATER WATER, OUTLET A

main87209-42030iACA2#200307

main87245-42200iACA2#200008-200307

9046621001

main90466-21001

9095901294

main90959-01294

7 parts on this diagram · 3 diagrams in section
