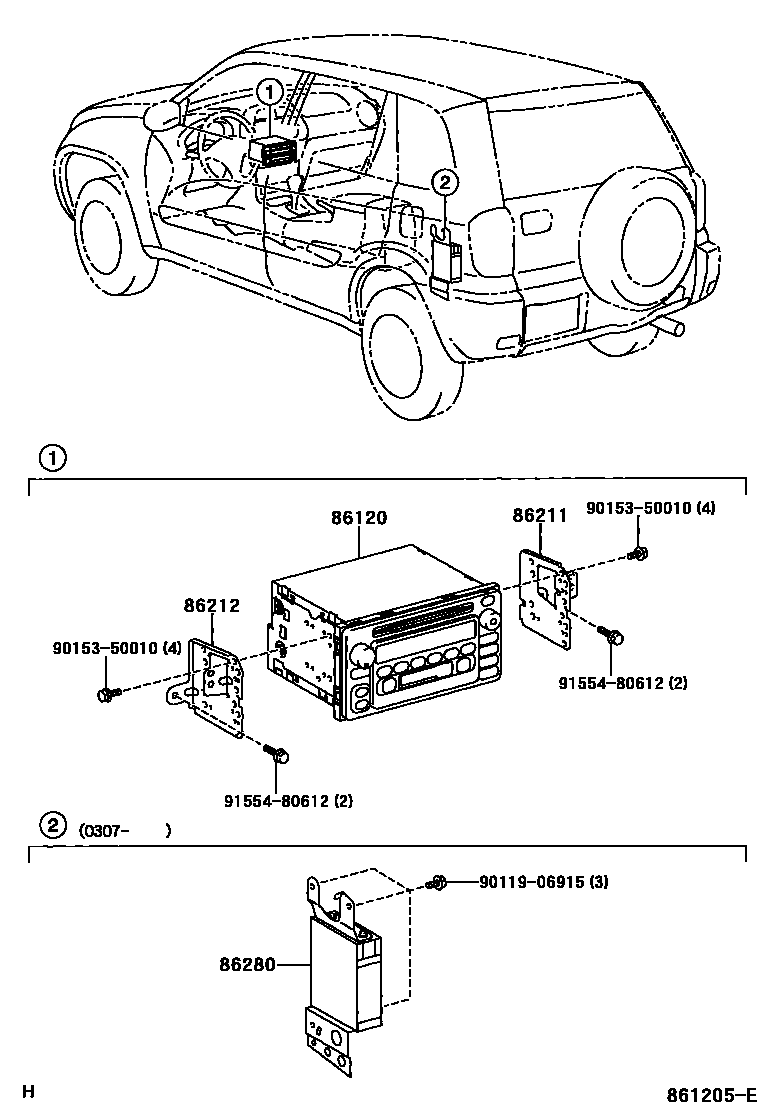

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-2B760iACA2#200208-200304

FUJITSU TEN,ID=16830,TYPE C:REFER TO ILLUSTRATION

main86120-2B761iACA2#..USA200307

FUJITSU TEN,ID=16844,TYPE C:REFER TO ILLUSTRATION

main86120-35262iACA2#200307-200409

FUJITSU TEN,ID=16847,TYPE C:REFER TO ILLUSTRATION & W(JBL PREMIUM SOUND SYSTEM)

main86120-42030iACA2#200008-200208

MATSUSHITA, ID=56413,TYPE B:REFER TO ILLUSTRATION

main86120-42040iACA2#200008-200208

MATSUSHITA, ID=56818,TYPE A:REFER TO ILLUSTRATION

main86120-42090iACA2#200208-200307

MATSUSHITA,ID=A51805,TYPE D:REFER TO ILLUSTRATION

main86120-42110iACA2#..USA200307-200409

MATSUSHITA,ID=A56837,TYPE E:REFER TO ILLUSTRATION

main86120-42120iACA2#200409

MATSUSHITA,ID=A51821

86211BRACKET, RADIO, NO.1

main86211-42030iACA2#200008-200307

86212BRACKET, RADIO, NO.2

main86212-42030iACA2#200008-200307

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W110iACA2#200307

9011906915

main90119-06915

9015350010

main90153-50010

9155480612

main91554-80612

7 parts on this diagram · 3 diagrams in section
