WIRING & CLAMP

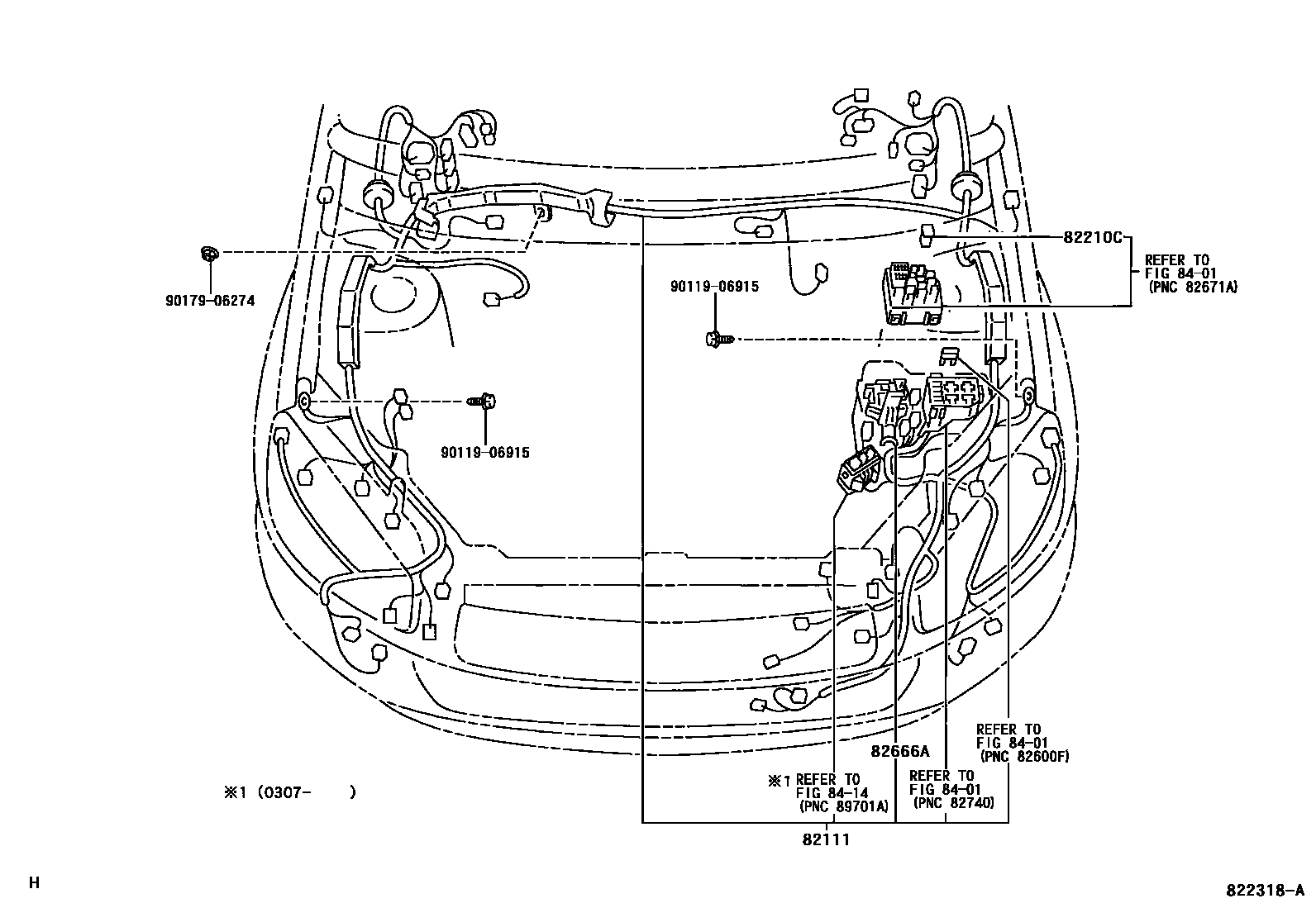

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-42B60i200307-200412

main82111-42B61i200412

main82111-42B80i200307-200412

W(VSC)

main82111-42B81i200412

W(VSC)

main82111-42B90i200307-200412

W(DAY TIME RUNNING LIGHT SYSTEM)

main82111-42B91i200412

W(DAY TIME RUNNING LIGHT SYSTEM)

main82111-42C00i200307-200412

W(ABS & DAY TIME RUNNING LIGHT SYSTEM)

main82111-42C01i200412

W(ABS & DAY TIME RUNNING LIGHT SYSTEM)

main82111-42C10i200307-200412

W(DAY TIME RUNNING LIGHT SYSTEM & VSC)

main82111-42C11i200412

W(DAY TIME RUNNING LIGHT SYSTEM & VSC)

main82111-4A171i200008-200307

main82111-4A181i200008-200307

W(ABS)

main82111-4A191i200008-200307

W(CRUISE CONTROL)

main82111-4A201i200008-200307

W(ABS & CRUISE CONTROL)

main82111-4A211i200008-200307

W(DAY TIME RUNNING LIGHT SYSTEM)

main82111-4A221i200008-200307

W(ABS & DAY TIME RUNNING LIGHT SYSTEM)

main82111-4A231i200008-200307

W(CRUISE CONTROL & DAY TIME RUNNING LIGHT SYSTEM)

main82111-4A241i200008-200307

W(ABS & CRUISE CONTROL & DAY TIME RUNNING LIGHT SYSTEM)

82210CFUSIBLE LINK

main90982-08280i200008-200307

30A,TERM.:FEMALE,PNK

main90982-08281i200008-200307

40A,TERM.:FEMALE,GRN

main90982-08282i200307

50A,TERM.:FEMALE,RED

82666AHOLDER, CONNECTOR NO.2

main82666-42090i200008-200307

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011906915

main90119-06915

9017906274

main90179-06274

7 parts on this diagram · 7 diagrams in section
