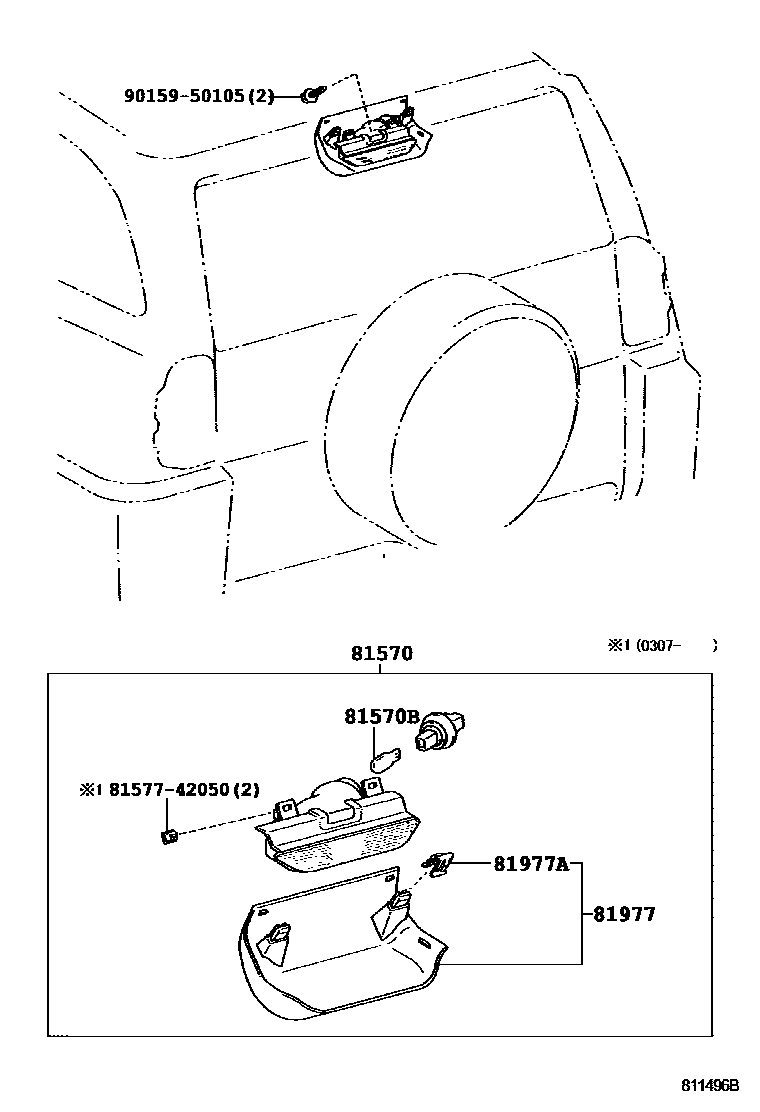

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-49015iACA2#200008-200307

main81570-49015-B0iACA2#200307

GRAY,TRIM1#

main81570-49015-E0iACA2#200307

FAWN,TRIM4#

81570BBULB (FOR CENTER STOP LAMP)

main90981-13043iACA2#200008-200307

12V 21W

81977COVER, CENTER STOP LAMP

main81977-42030-B0iACA2#200008-200307

BLUE GRAY,TRIM1#

main81977-42030-B1iACA2#200307-200511

NEW GRAY,TRIM1#

main81977-42030-E0iACA2#200008-200307

FAWN,TRIM4#

81977ACLIP (FOR CENTER STOP LAMP)

main90468-05060×2iACA2#200008-200307

8157742050

main81577-42050

9015950105

main90159-50105

6 parts on this diagram · 1 diagram in section
