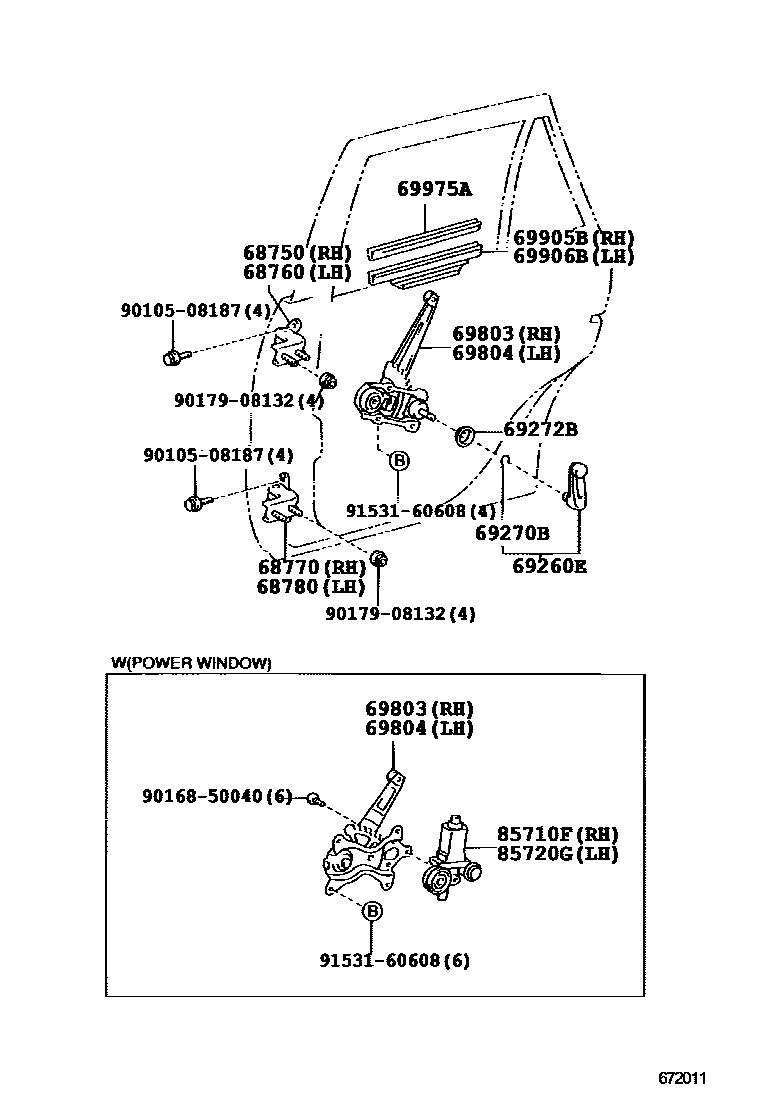

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-32060iACA2#200307-200511

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-32060iACA2#200008-200307

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-12100iACA2#200307-200511

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-12090iACA2#200008-200307

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-52030-B3×2iACA2#200008-200307

BLUE GRAY,TRIM1#

main69260-52030-B4×2iACA2#200307-200511

DK.GRAY,TRIM1#

main69260-52030-E1×2iACA2#200008-200307

FAWN,TRIM4#

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iACA2#200008-200307

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-20020×2iACA2#200008-200307

main69285-22010×2iACA2#200307

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-42020iACA2#200008-200307

W(POWER WINDOW)

main69830-42030iACA2#200008-200307

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-42020iACA2#200008-200307

W(POWER WINDOW)

main69840-42030iACA2#200008-200307

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-42020iACA2#200008-200307

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-42020iACA2#200307-200511

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-12010×2iACA2#200008-200307

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-32150iACA2#200008-200307

85720GMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-42070iACA2#200008-200307

9010508187

main90105-08187

9016850040

main90168-50040

9017908132

main90179-08132

9153160608

main91531-60608

18 parts on this diagram · 1 diagram in section
